Home >> Plymouth >> 1984 >> Colt Vista 2WD L4-1997cc 2.0L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> Clearance and Design Specifications

Clearance and Design Specifications

Specifications

5 Speed, Floor Shift - KM-163

4 x 2-Speed, Floor Shift - KM166

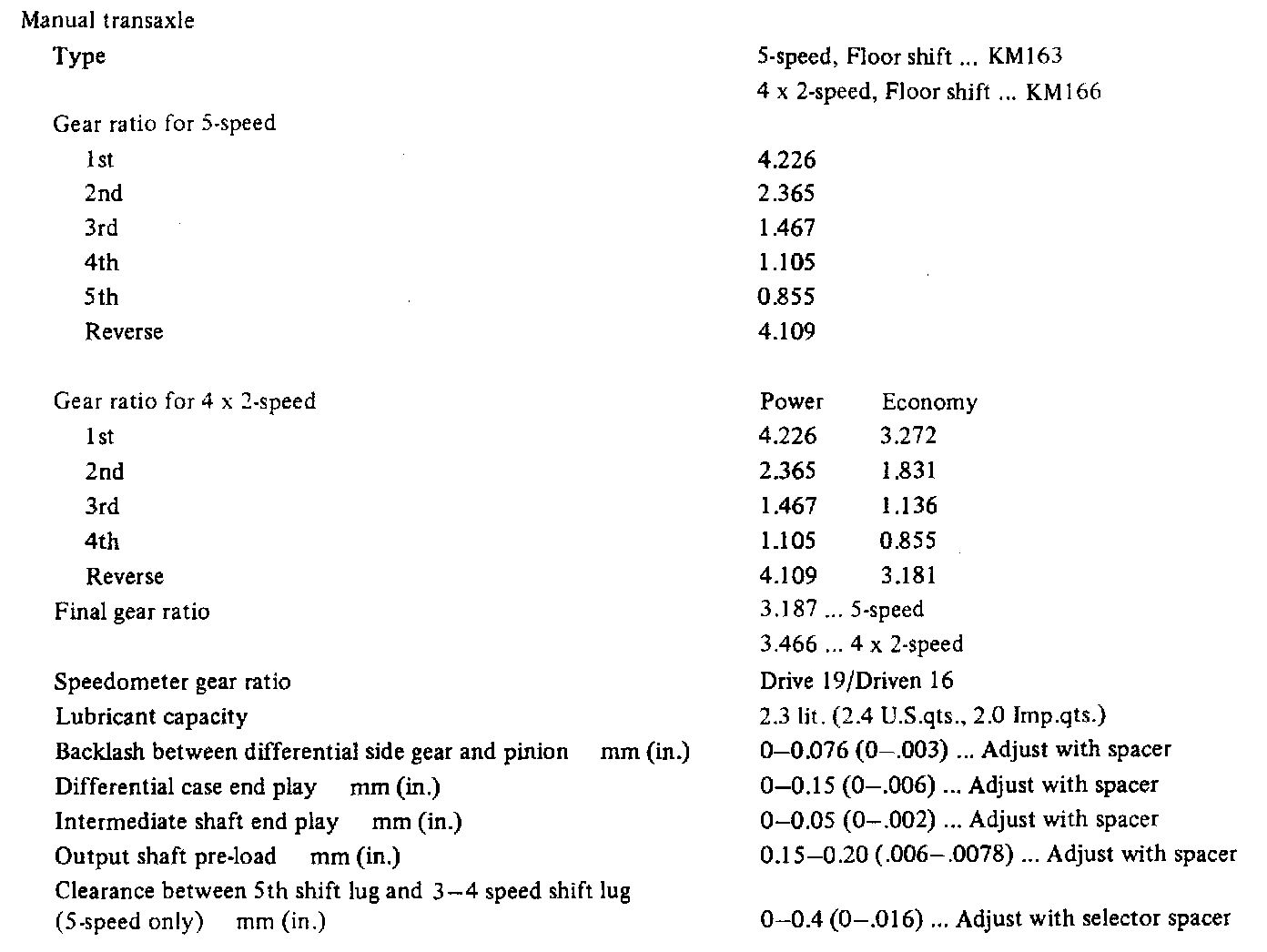

General Specifications:

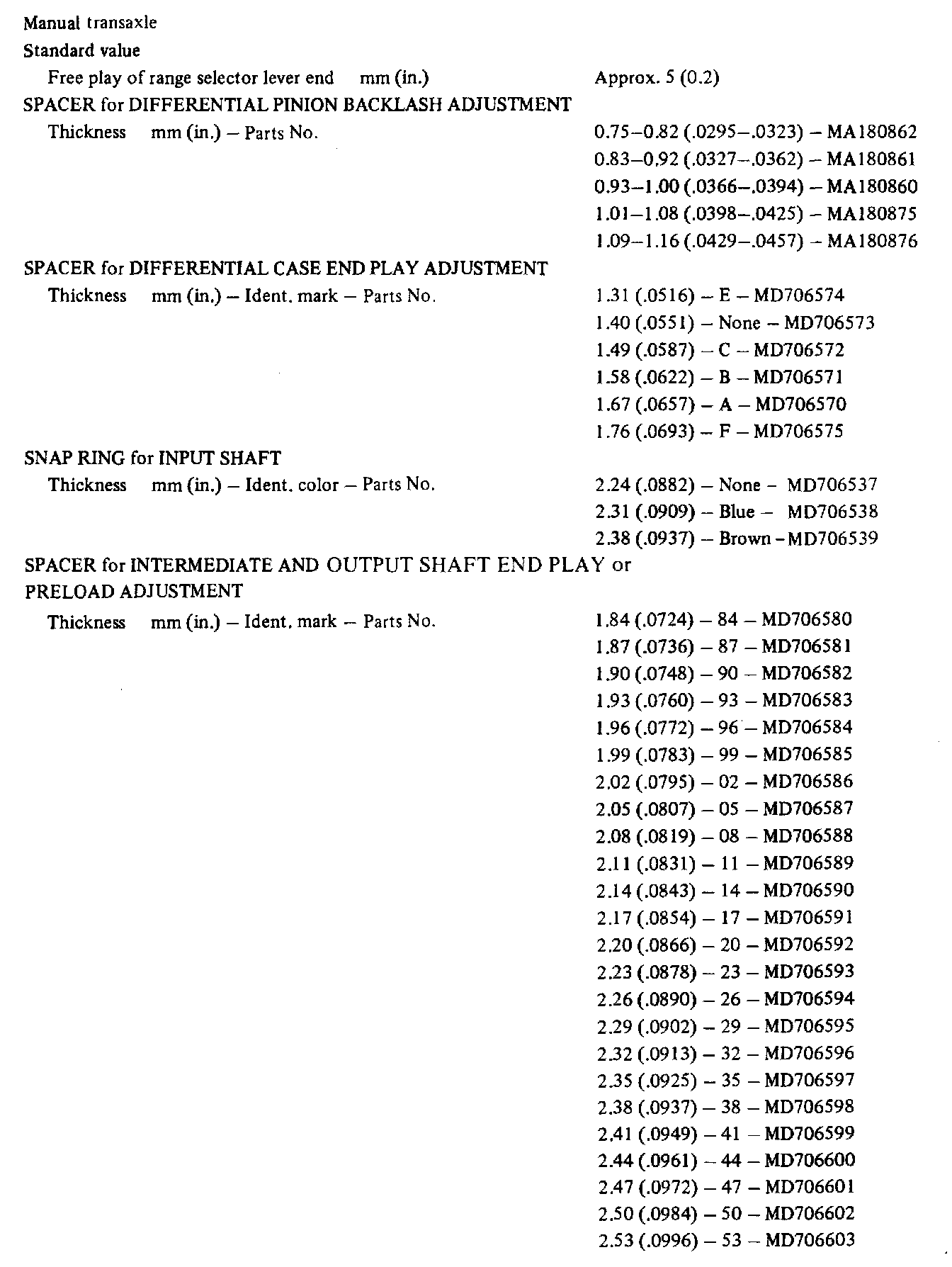

Continued:





Continued:

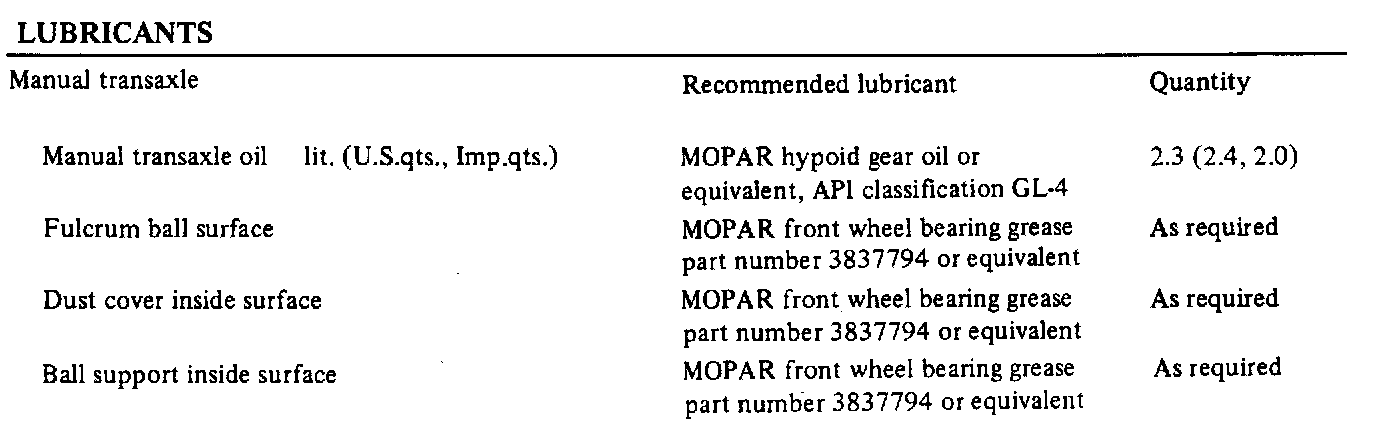

Lubrication Specifications:
