A/T - Service Manual Correction

Models

1984 Conquest Equipped With Automatic Transmission

Subject

Service Manual Revision - Transmission Illustration Correction

Index

TRANSMISSION

Date

February 4, 1985

No.

21-03-85

P-336-C

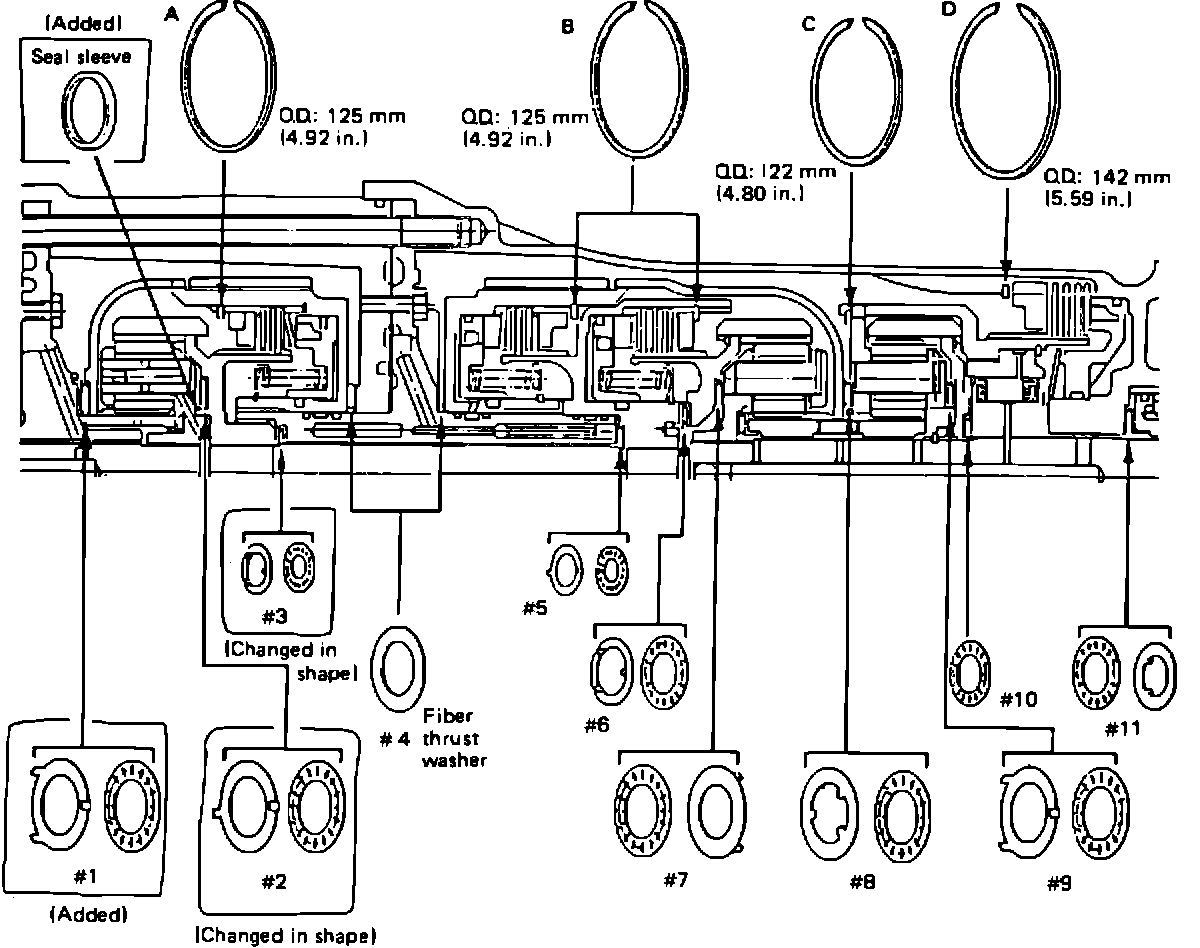

Transmission Illustration:

CORRECTION OF 1984 SERVICE MANUAL (SUPPLEMENT)

The errors in the illustrations contained in the 1984 Conquest Service

Manual, #81-270-4005 Supplement, have been corrected as shown in

Figures 1 and 2.
Please make a note in your service manual(s), pages 21-53 and 21-62 to refer to Technical Service Bulletin #21-03-85 for the correct illustrations.

POLICY: Information only
