Carburetor Coolant Hose - Installation Procedure

84chrysler5 Models


All 1984 Import MMC Vehicles With Carburetors Except 2.6L Engines


Subject


Correct Carburetor Coolant Hose Installation Procedure


Index


FUEL

Date

December 3, 1984


No.


14-62-84

P-5298-C
The procedure described in this bulletin should be utilized when servicing the coolant hose or carburetor for the wax pellet choke housing.

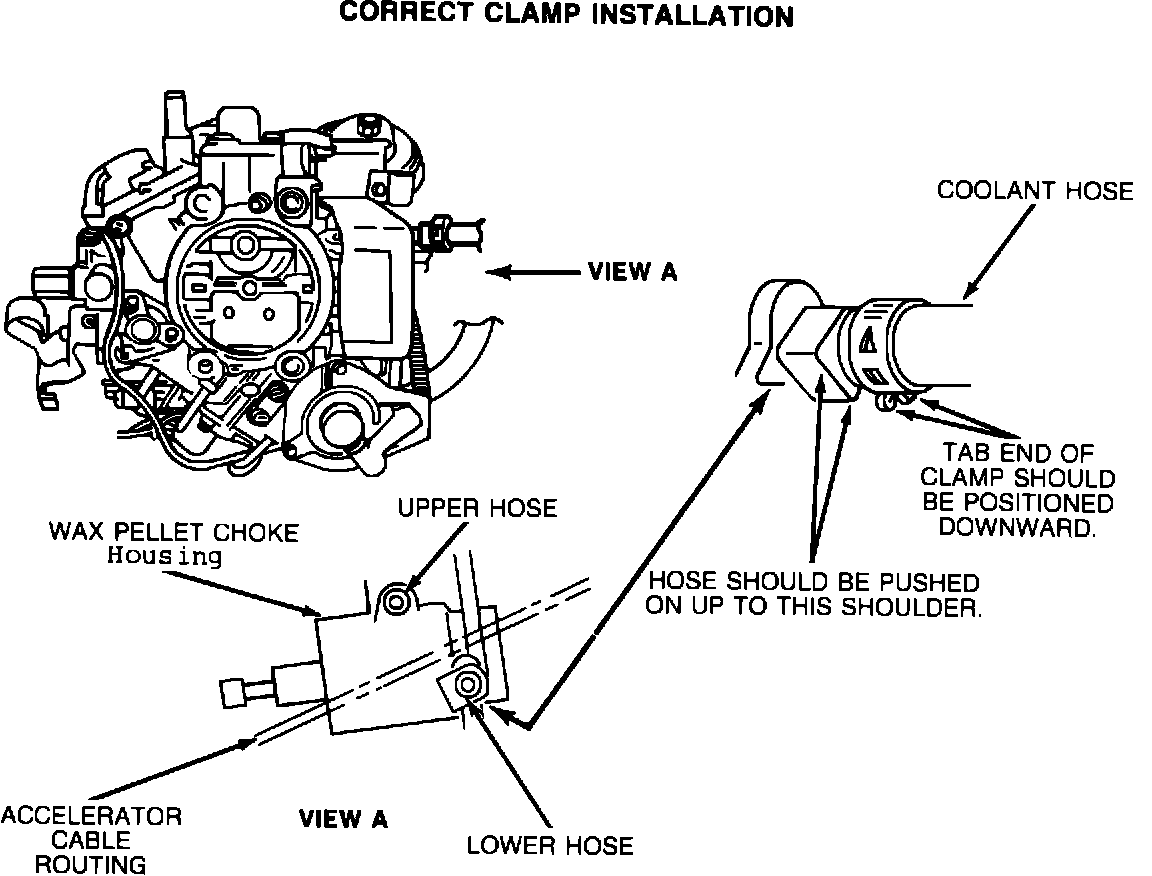

FIGURE 1:

When installing the lower coolant hose on the wax pellet choke housing, the following steps should be followed to avoid interference of the tab end of the hose clamp with the accelerator cable (Figure 1).

1.. Lower coolant hose should only be pushed on up to the shoulder on choke housing nipple (Figure 1).

2. Tab ends of the spring hose clamps for the lower coolant hose should be positioned downward (Figure 1).
POLICY: Information only
