Speed Control - Wiring Diagram Revision
84chrysler10Models
1984 Conquest
Subject
Service Manual Revision in Speed Control Wiring Diagram
Index
ELECTRICAL
Date March 5, 1984
No.
08-10-84
P-787
This bulletin is to advise you of revisions to service manual publication #81-270-4005. Please note revisions as follows:
^ Pages 8-16 and 8-240 - Speed control vacuum switch cut out negative pressure (vacuum) specification is now:
20 to 26 KPa (5.9 to 7.6 in. Hg)
FIGURE 1:
^ Illustration on page 8-240 should be changed as in Figure 1 (On/Off positions changed).
FIGURE 2:
^ Front harness wiring diagram on pages 8-164 and 8-166 should be changed as in Figure 2 (cavities which were blank are now labeled "297 and 290").

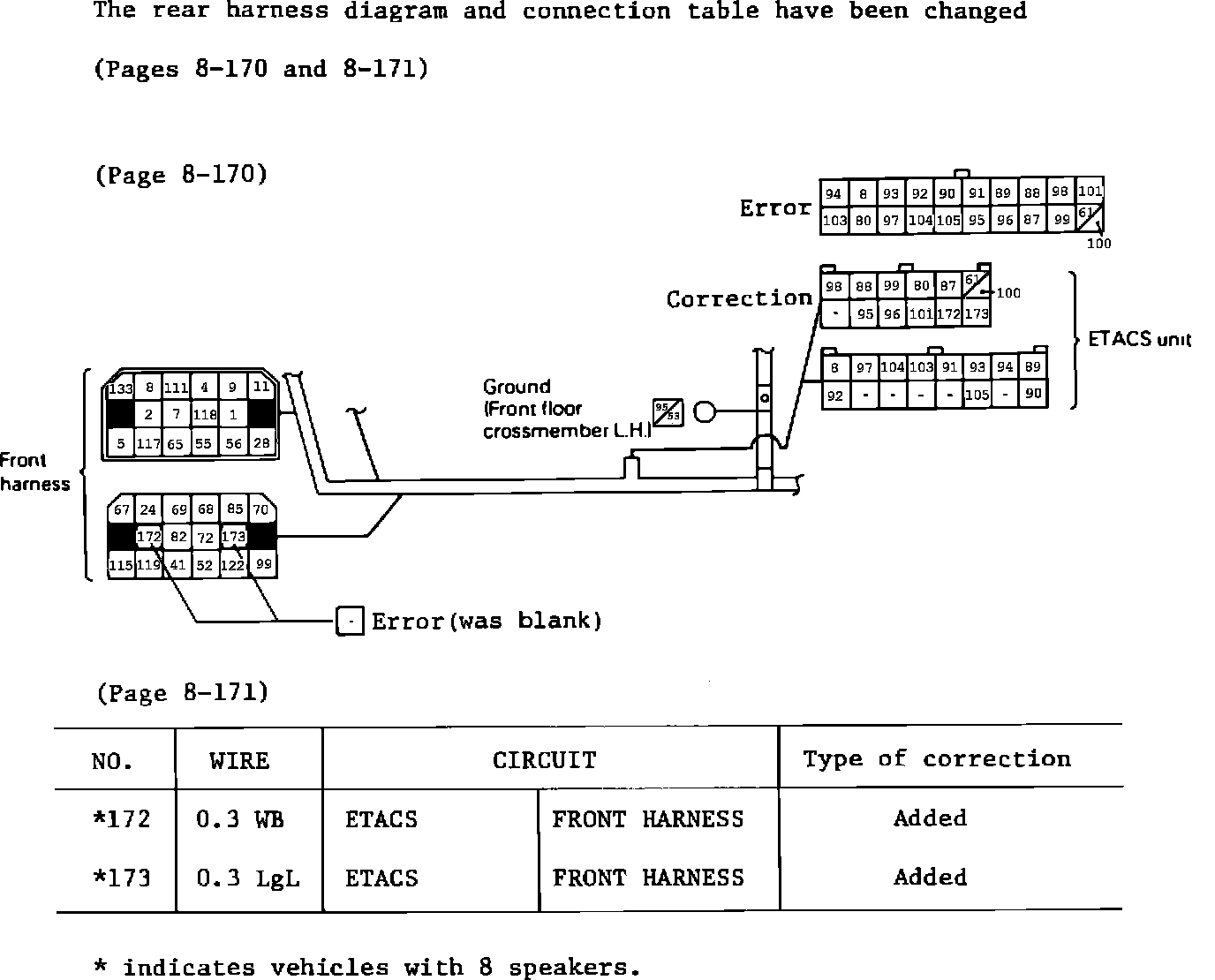

FIGURE 3:
^ Rear harness wiring diagram on pages 8-170 and 8-171 should be changed as in Figure 3 (cavities which were blank are now labeled "172 and 173" and listed respectively. Single ETACS unit connector replaced by two connectors).

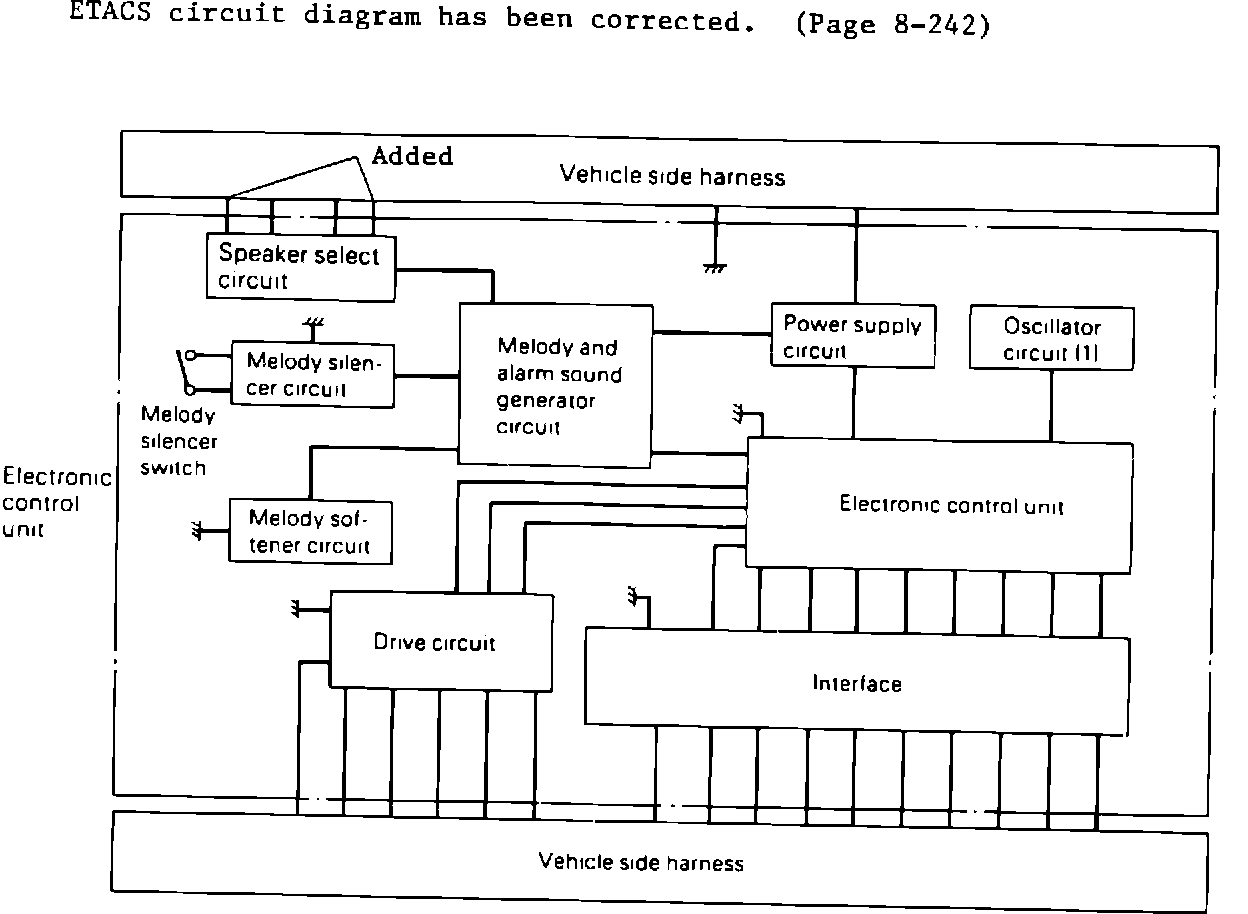

FIGURE 4:
^ ETACS circuit diagram on page 8-242 should be changed as in Figure 4 (additional wiring has been added to speaker select circuit).
POLICY: Information only
