Rear Lighting

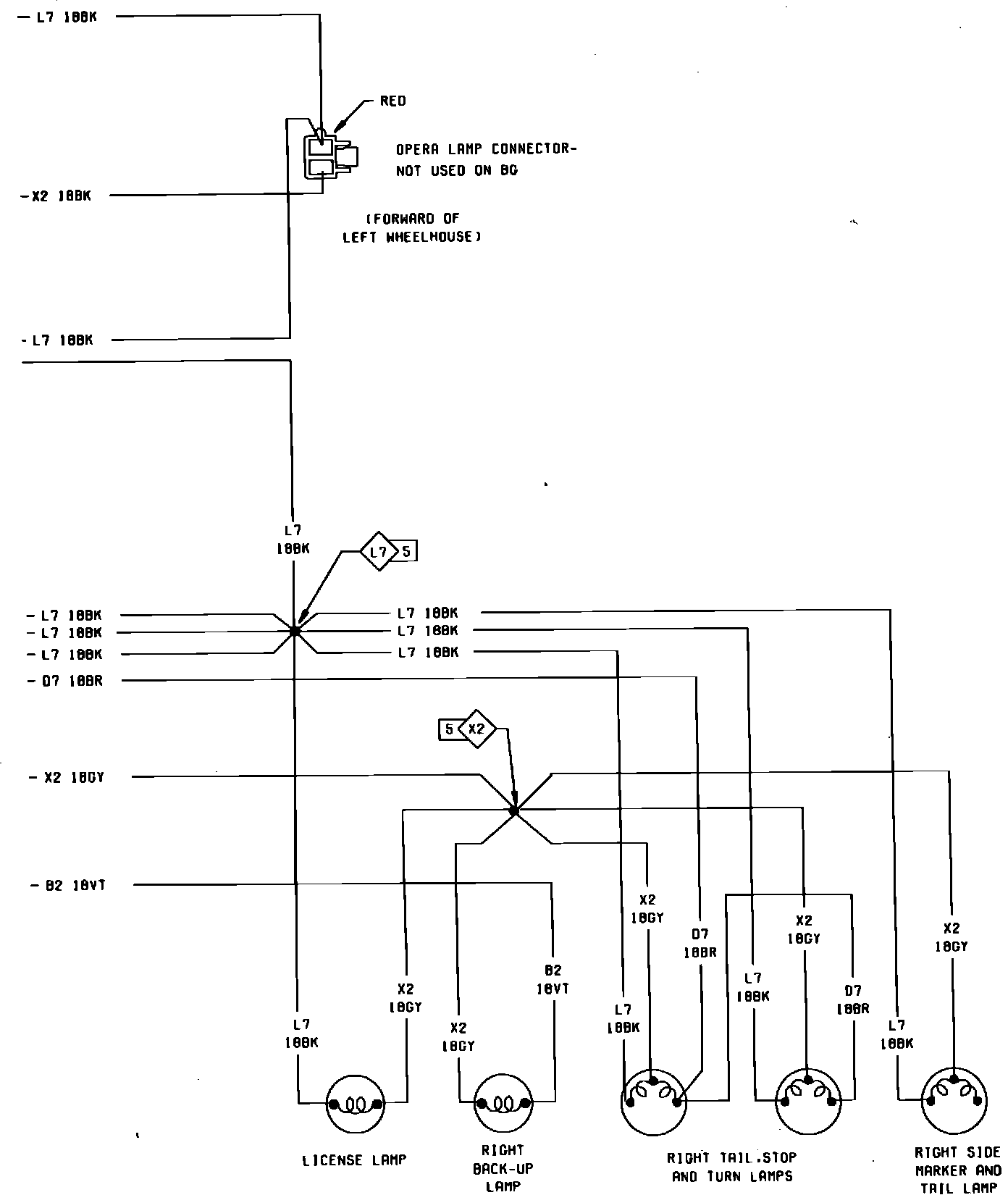

Fig. 52 Rear Lighting Wiring Circuit, Diplomat & Gran Fury (Part 1 of 2):

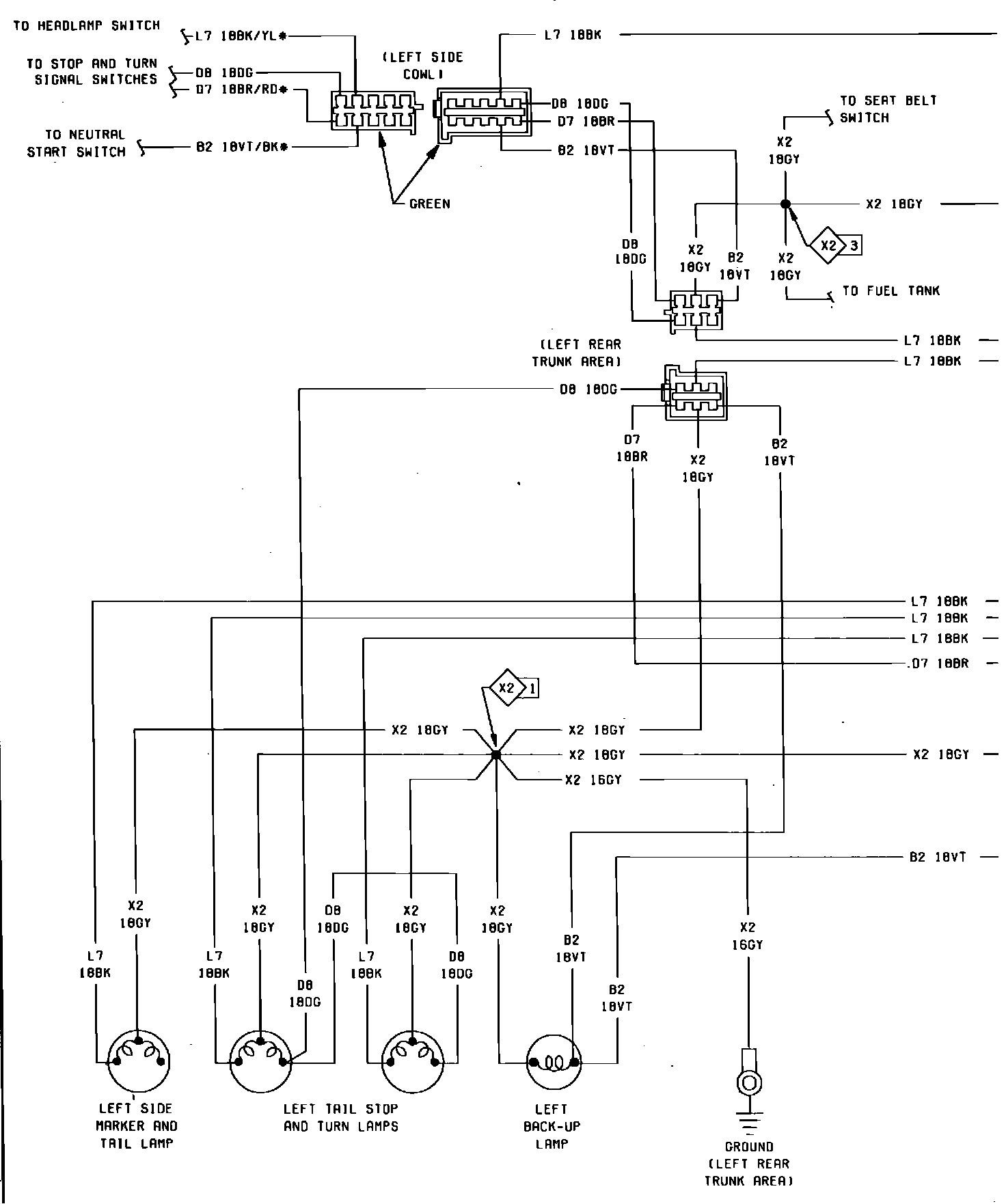

Fig. 52 Rear Lighting Wiring Circuit, Diplomat & Gran Fury (Part 2 of 2):
