Electronic Spark Advance System Wiring Circuit

Part 1 of 2:



Part 2 of 2:



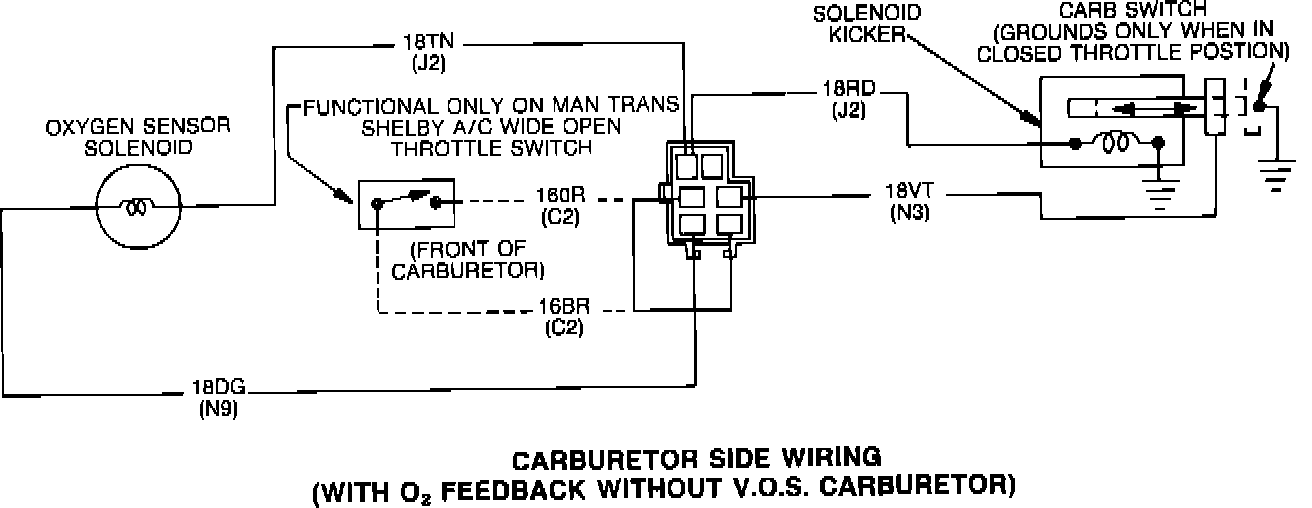

Fig. 40 Electronic Spark Advance Wiring Circuit (Part 1 of 2). 1983-84:

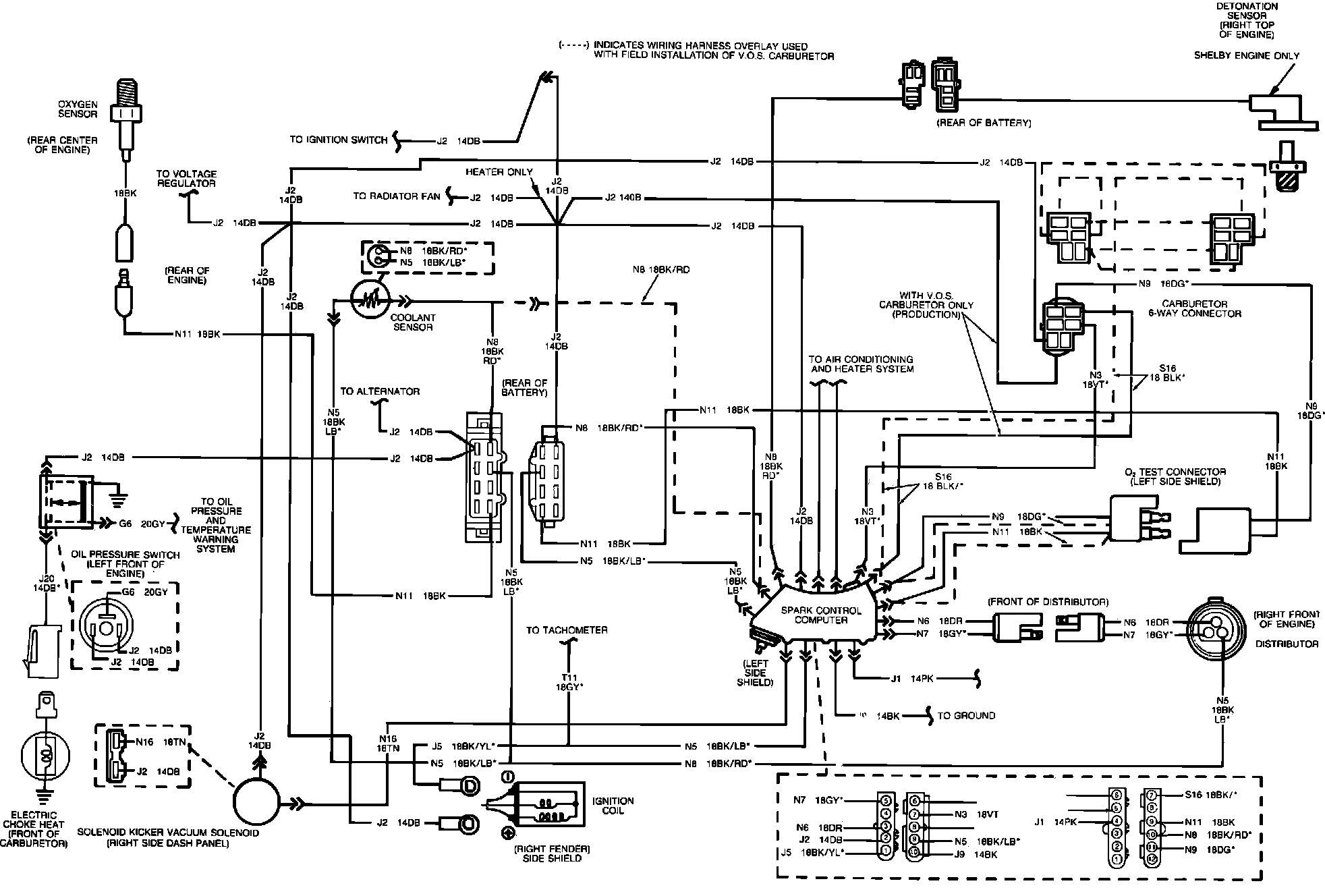

Fig. 40 Electronic Spark Advance Wiring Circuit (Part 2 of 2). 1983-84:
