Home >> Plymouth >> 1984 >> Reliant L4-156 2.6L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Column

Steering Column

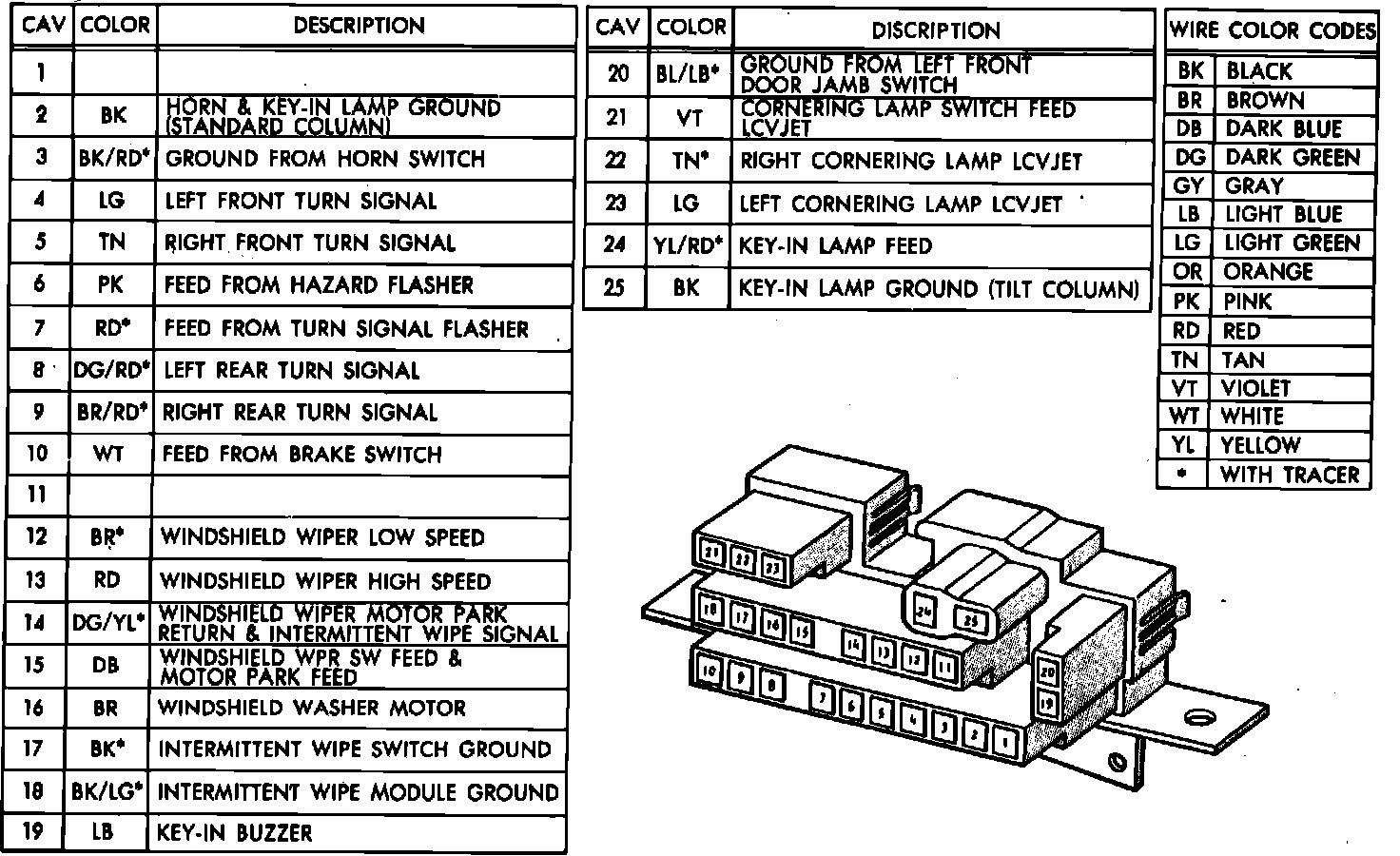

Fig. 9 Instrument Panel To Steering Column Connector (25 Way). 1983-84:
