Accessory Delay Module
>>
Brake/Fuel Tank/Oil Pressure/Seat Belt & Temperature Warning
Brake/Fuel Tank/Oil Pressure/Seat Belt & Temperature Warning

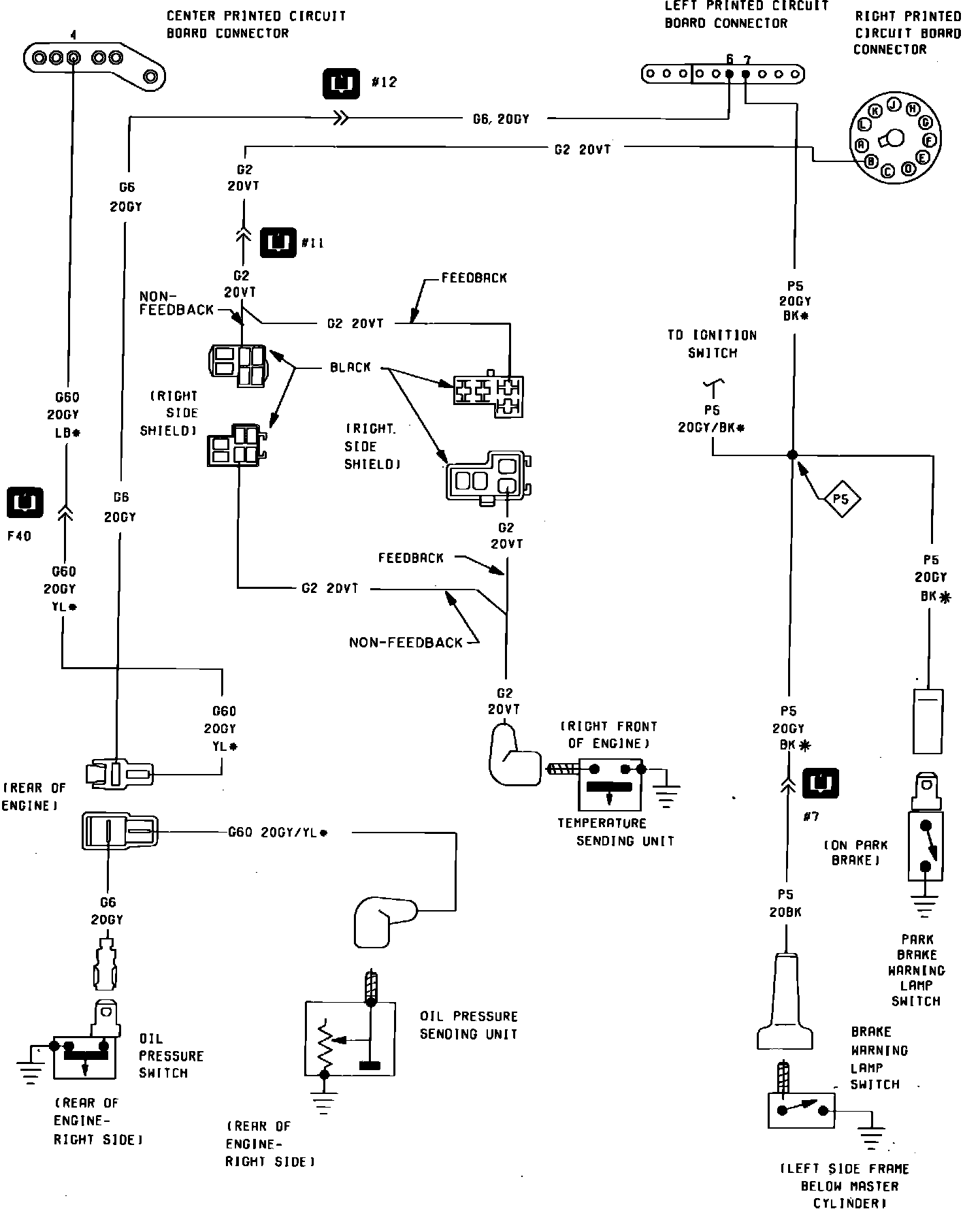

Fig. 24 Brake, Oil & Temperature Switch. 1984 W/2.6 Liter Engine:
