Brake Switch (Cruise Control)

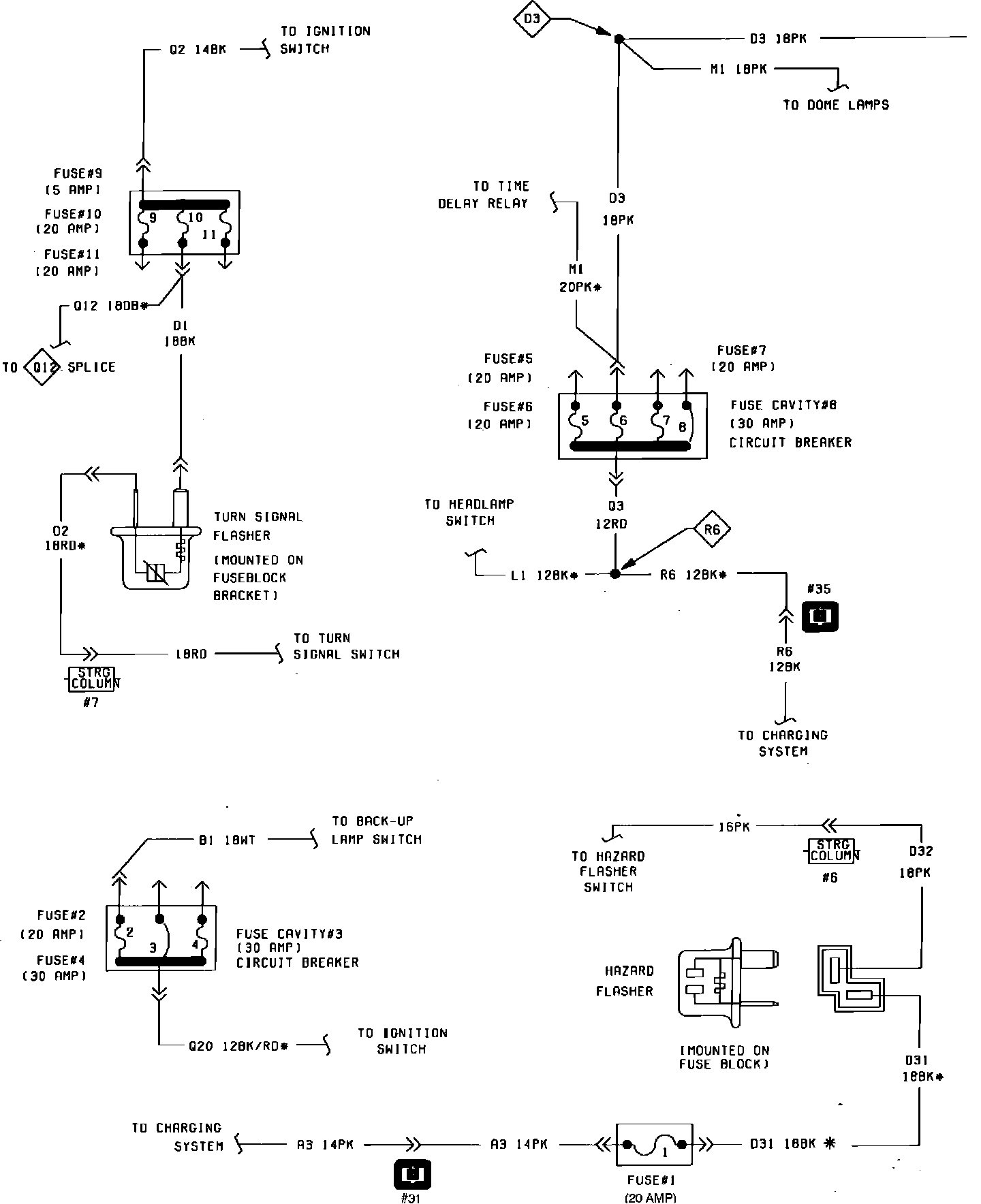

Fig. 47 Hazard & Turn Signal Flashers & Stop Lamp Switch Wiring Circuit (Part 1 of 2). 1983-84:

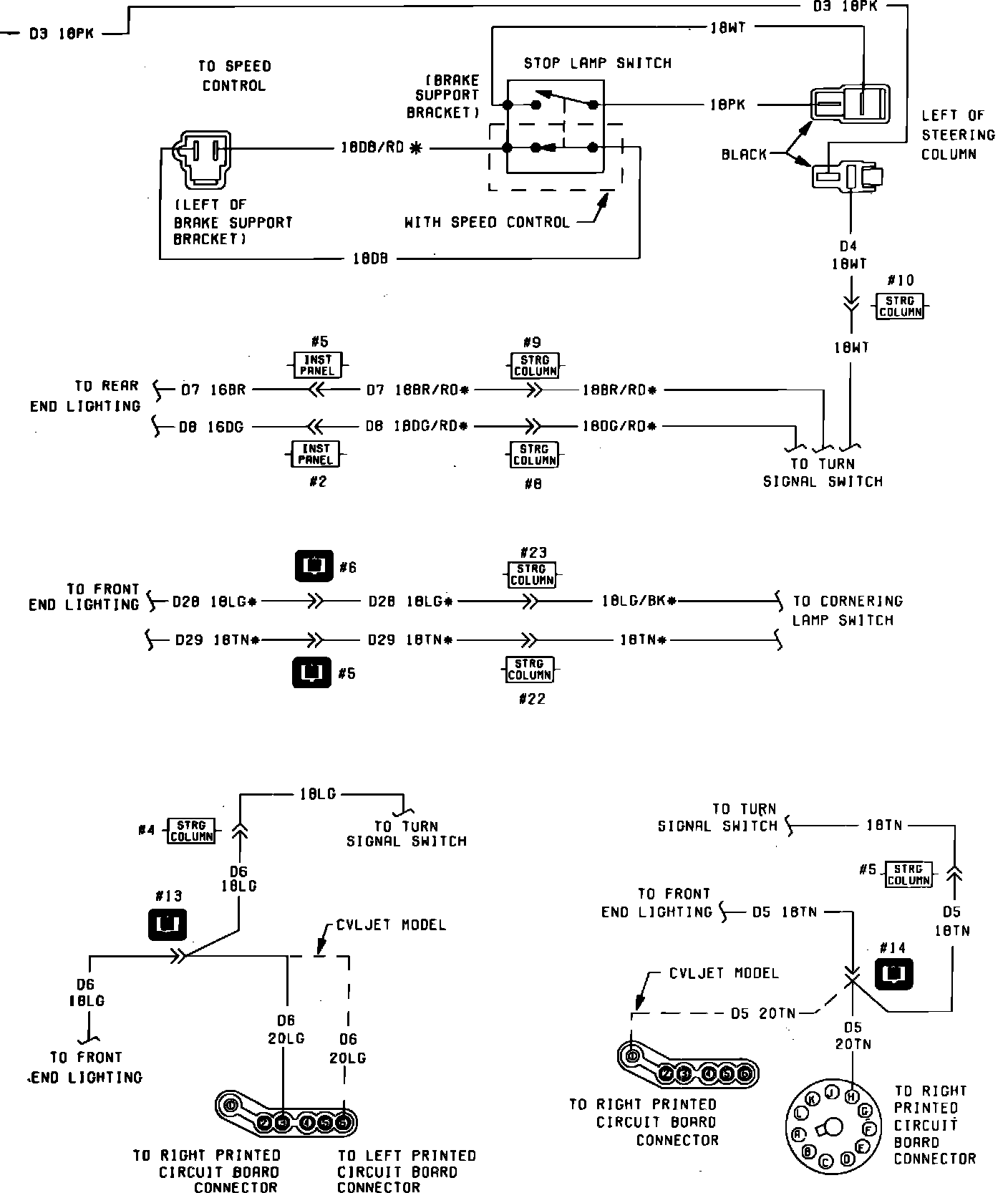

Fig. 47 Hazard & Turn Signal Flashers & Stop Lamp Switch Wiring Circuit (Part 2 of 2). 1983-84:
