Instrument Panel Circuit Board
Instrument Panel Circuit Board

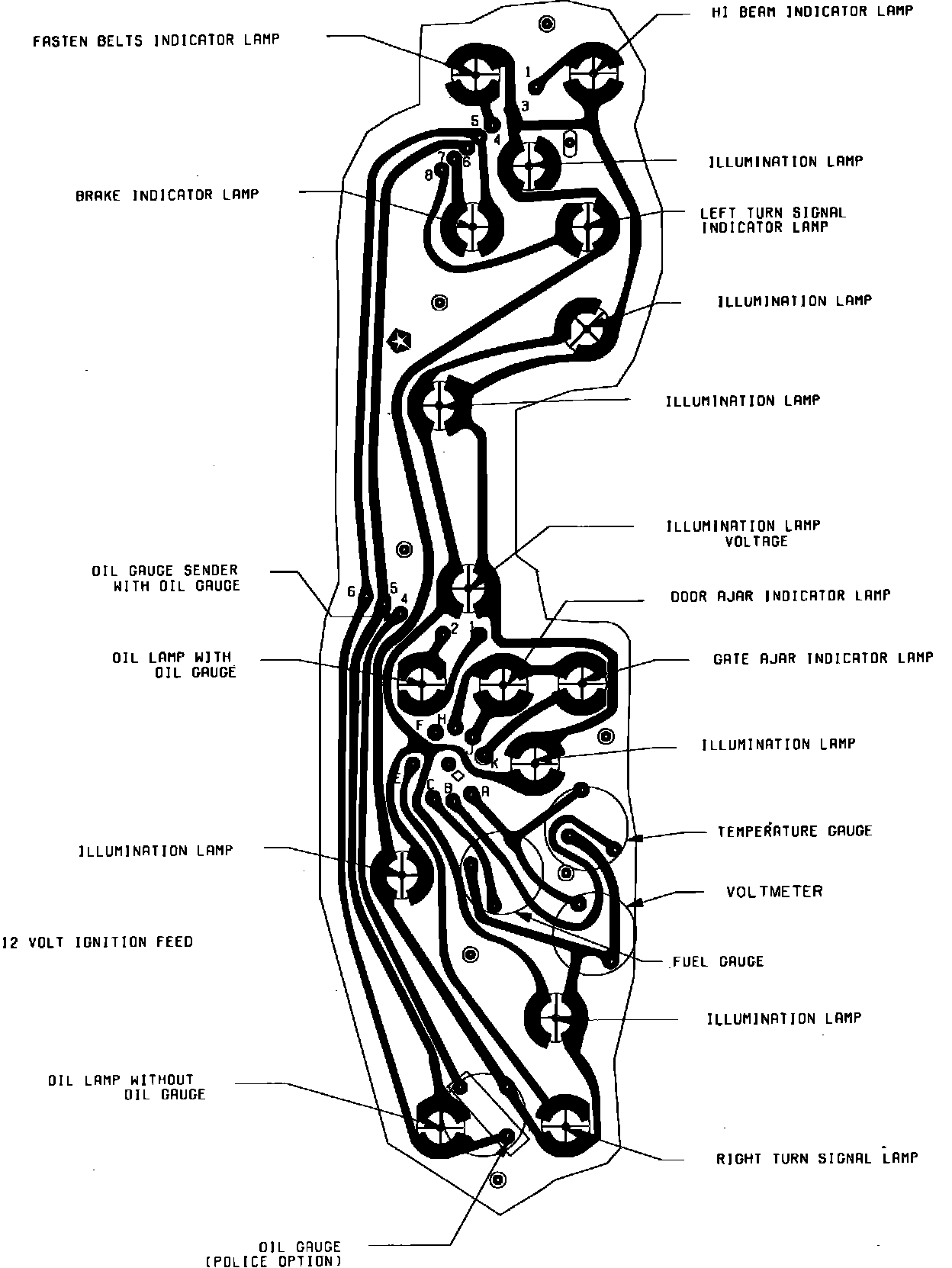

Fig. 3 Instrument Panel Circuit Board. 1984:
