Part 1 of 2

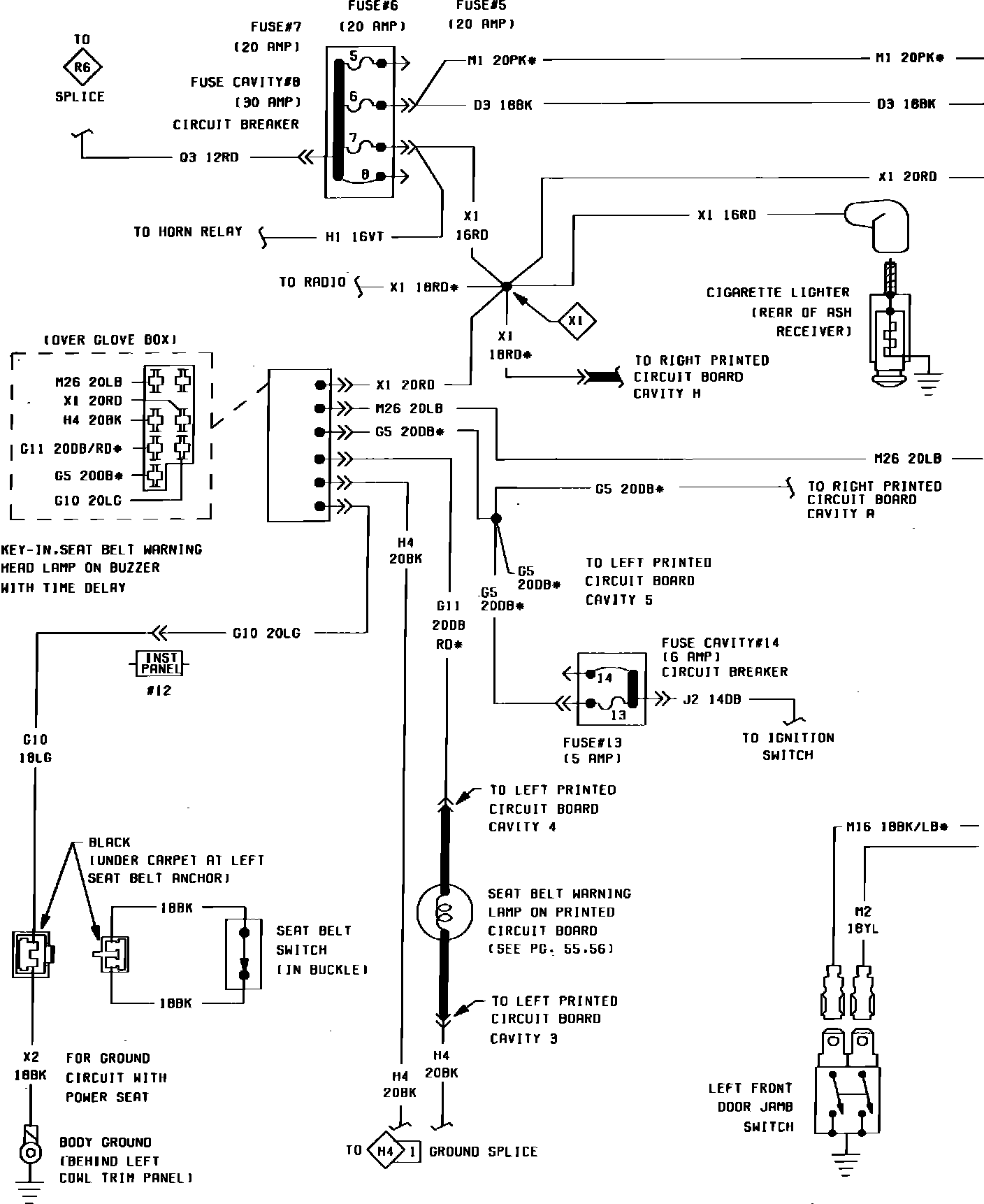

Fig. 35 Cigar Lighter, Instrument Panel Courtesy Lamps & Seat Belt Warning System Wiring Circuit (Part 1 of 2). 1984:
