Headlamp Dimmer Switch

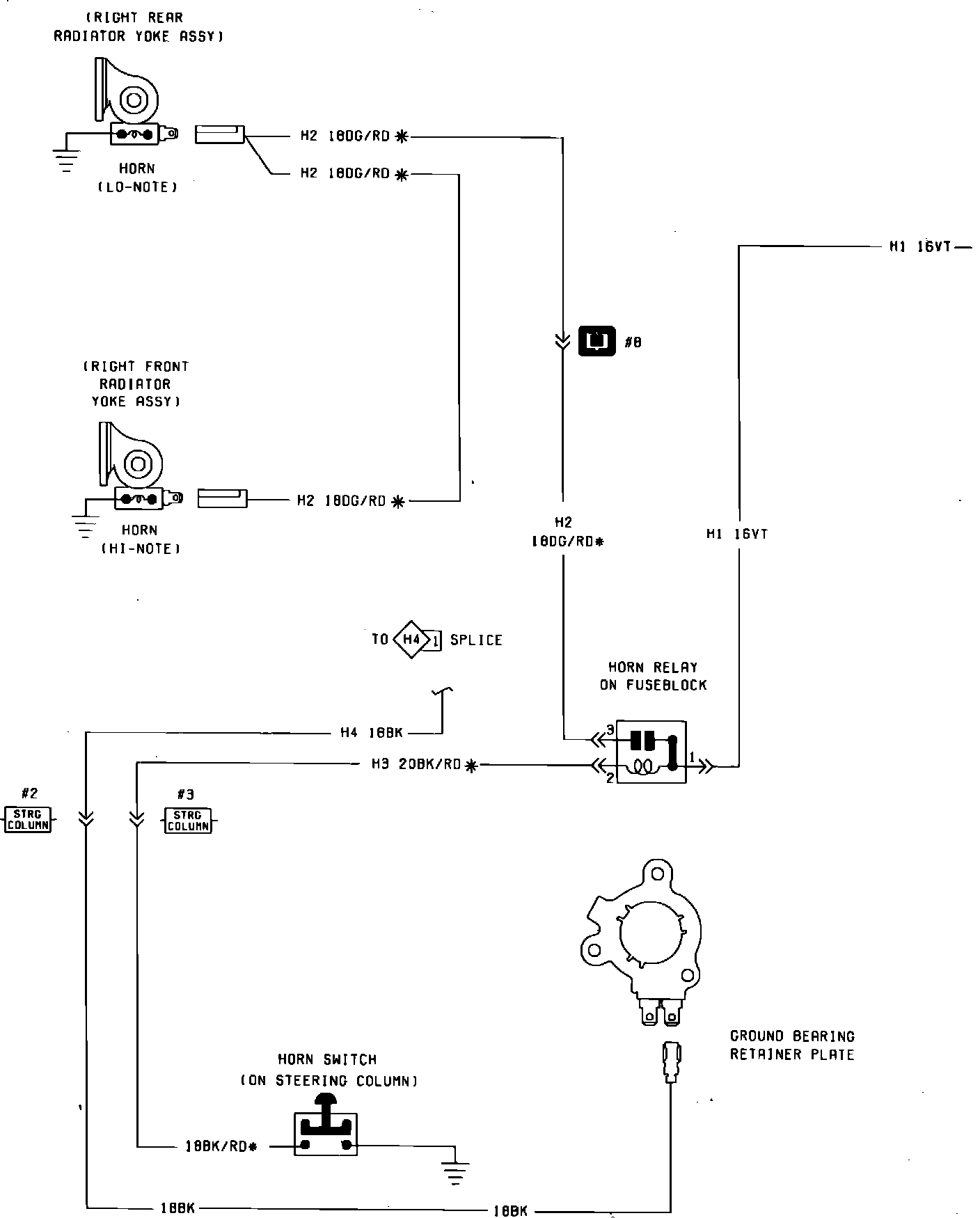

Fig. 50 Headlamp Switch & Horn System Wiring Circuit (Part 1 of 2). 1983-84:

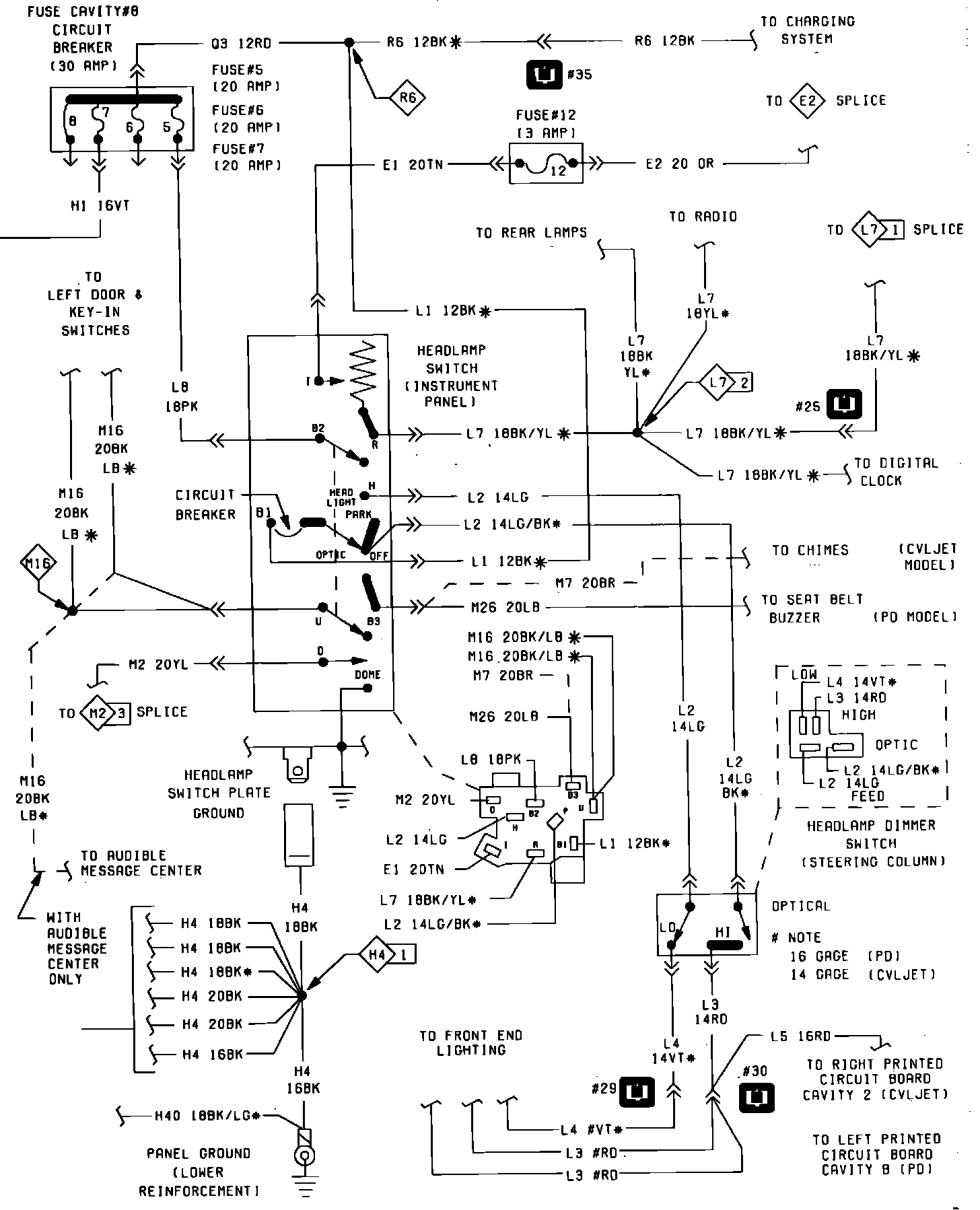

Fig. 50 Headlamp Switch & Horn System Wiring Circuit (Part 2 of 2). 1983-84:
