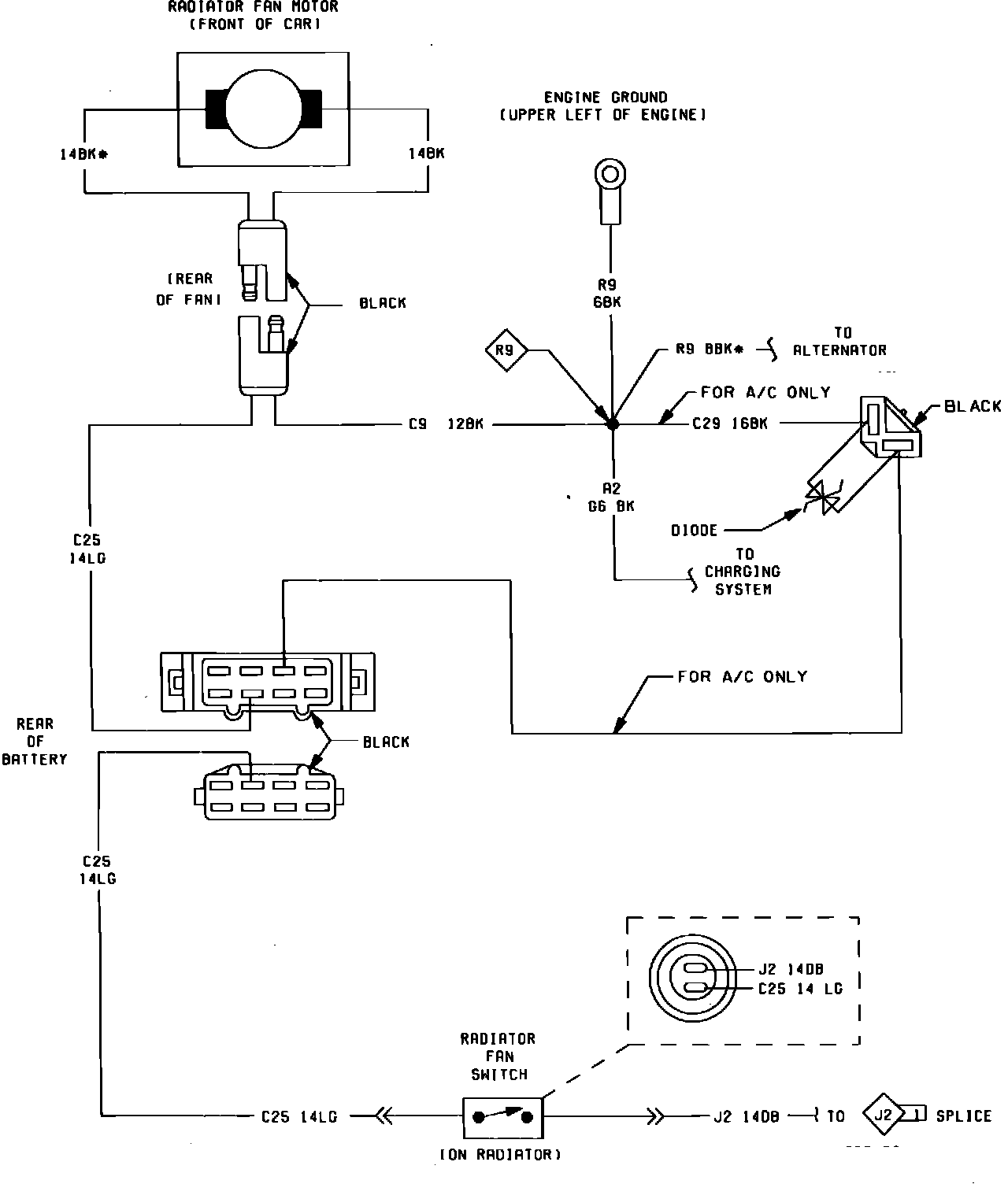

Radiator Cooling Fan Temperature Sensor / Switch
Radiator Cooling Fan Temperature Sensor / Switch
Heated System - 2.2L Carbureted:
