Deck Lid/Liftgate Release Wiring Circuit

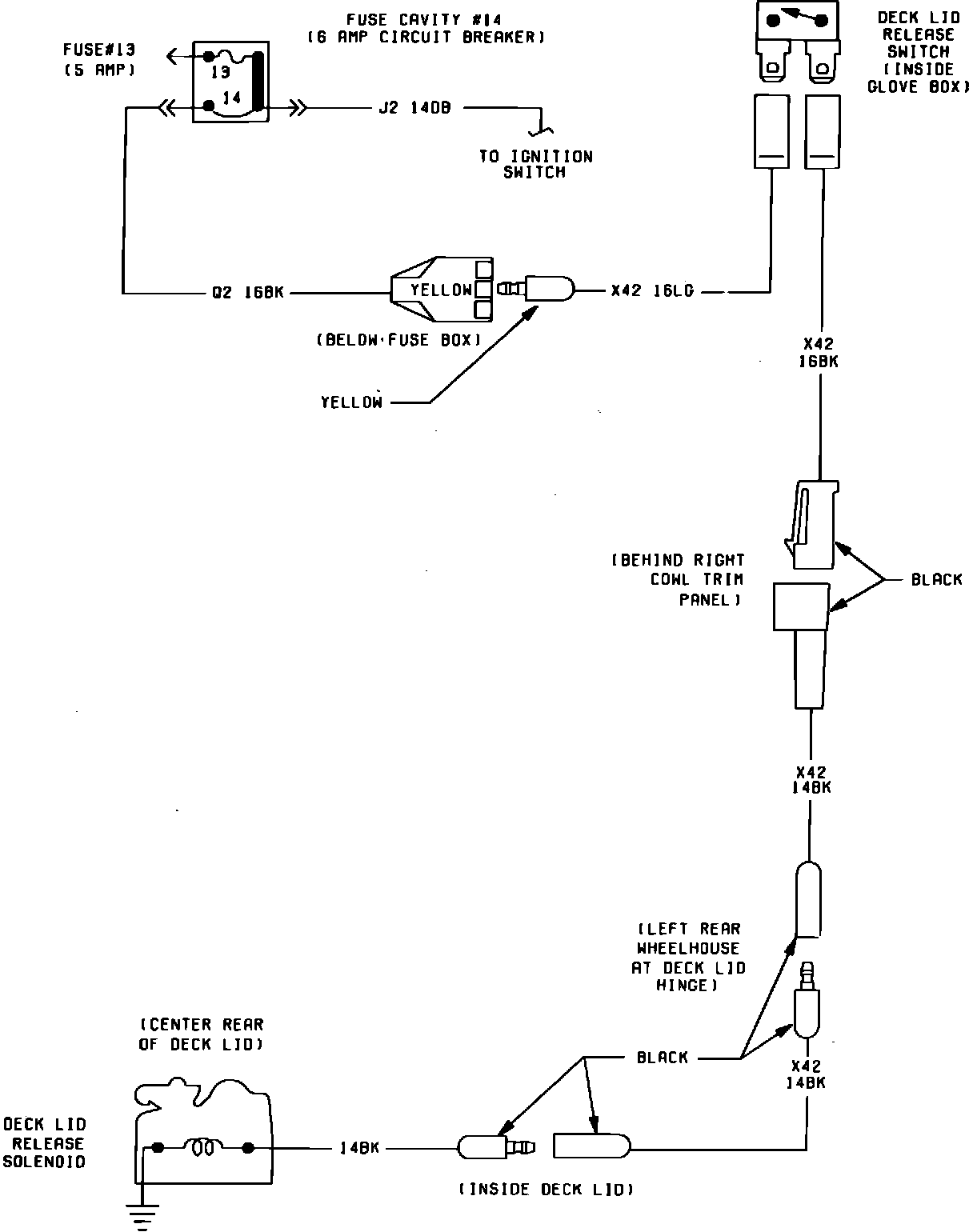

Fig. 37 Decklid Release System Wiring Circuit. 1983-84:



Fig. 61 Liftgate Release Wiring Circuit. 1983-84:
