Liftgate Wiper & Washer System
Liftgate Wiper & Washer System

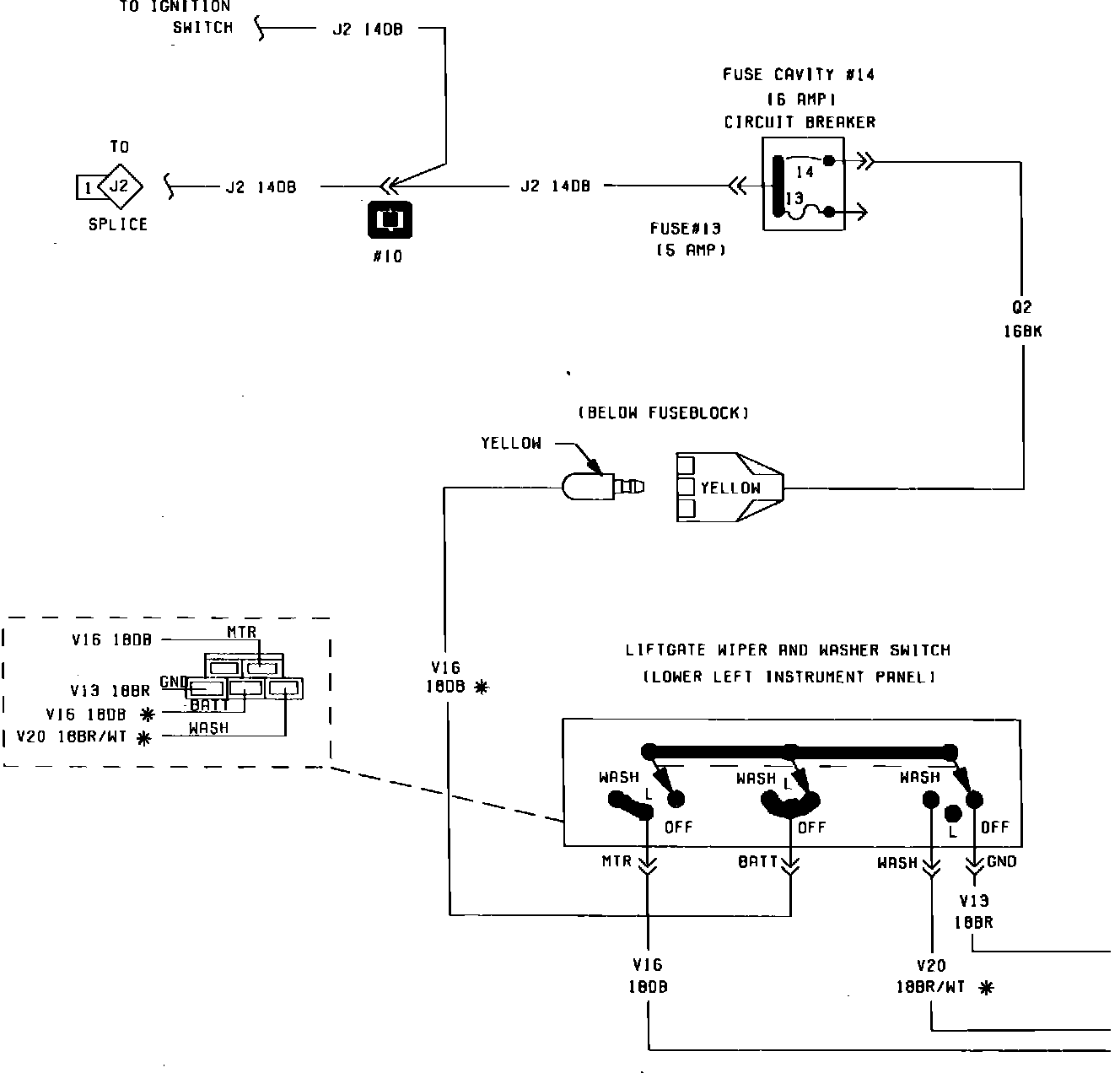

Fig. 62 Liftgate Washer & Wiper Circuit (Part 1 of 2). 1983-84:

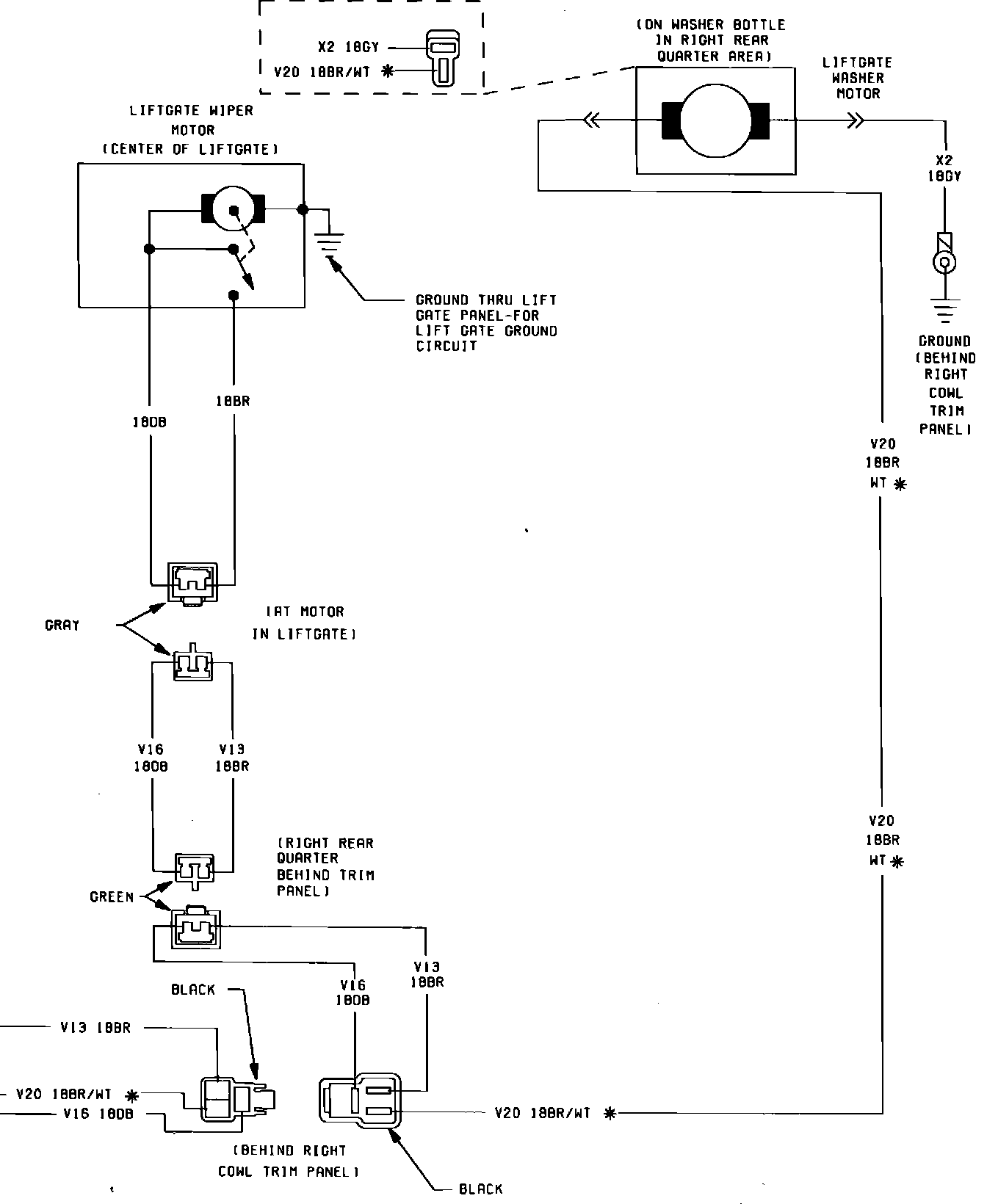

Fig. 62 Liftgate Washer & Wiper Circuit (Part 2 of 2). 1983-84:
