Front End Lighting

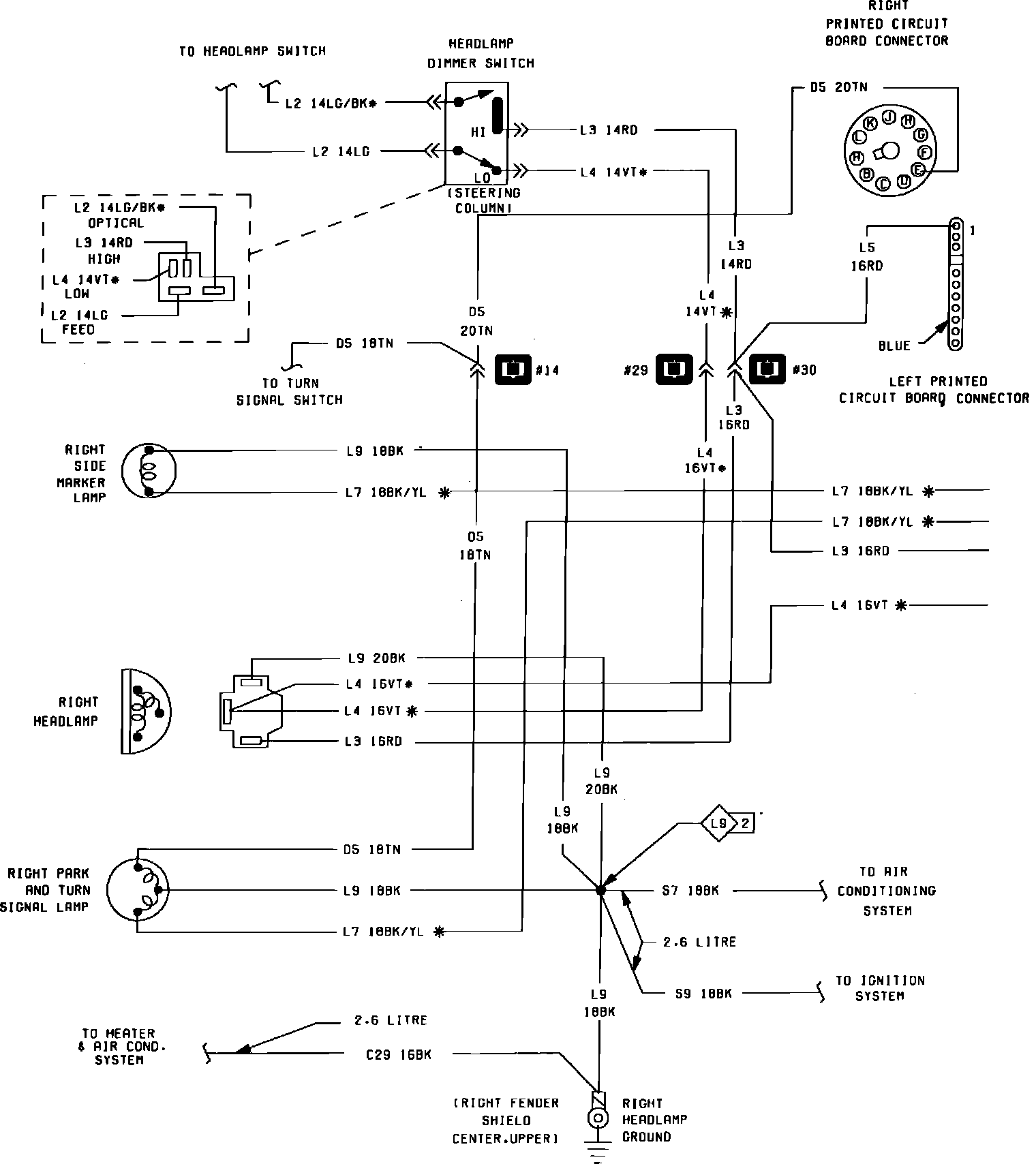

Fig. 43 Front End Wiring Circuit (Part 1 of 2). 1984:

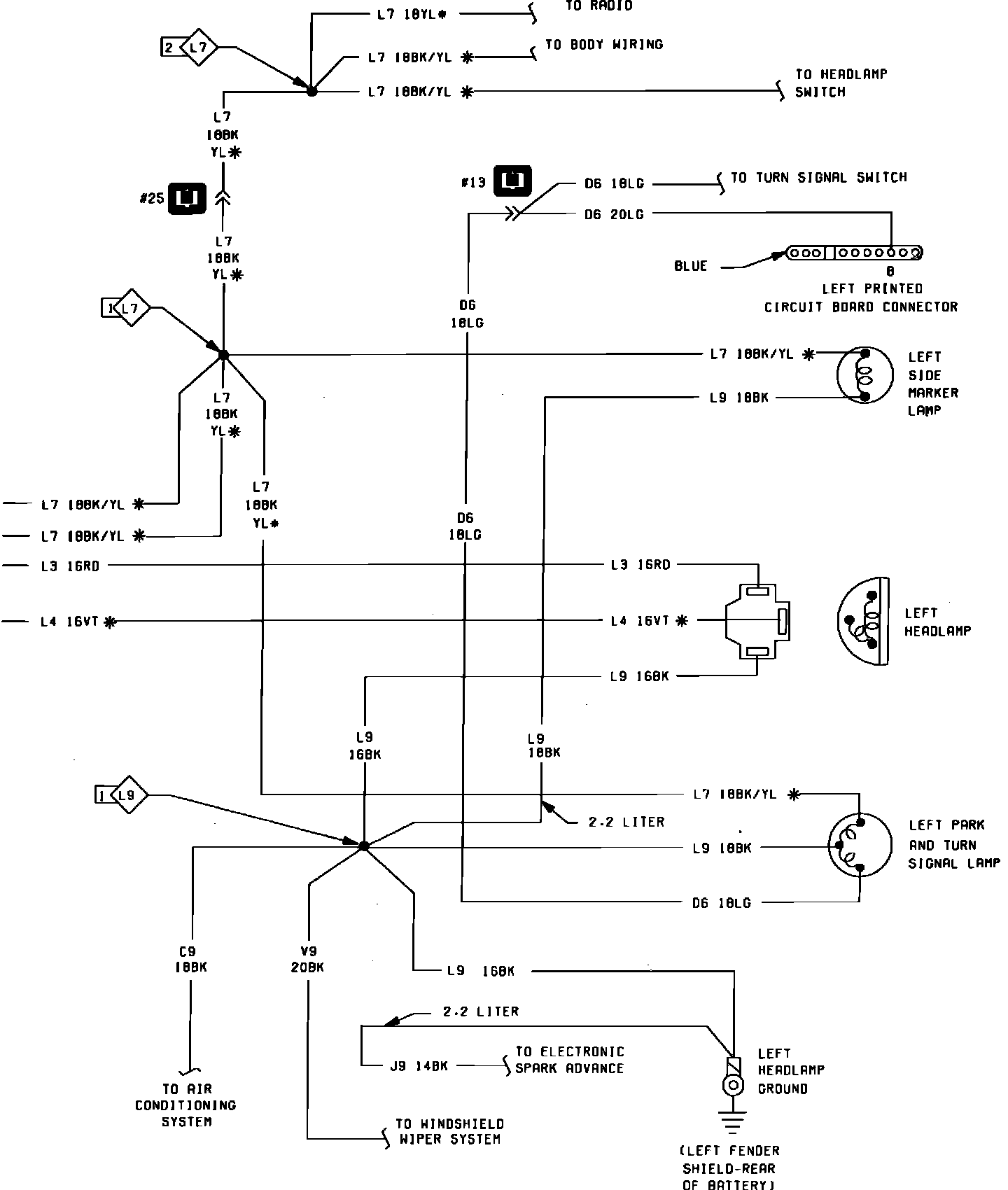

Fig. 43 Front End Wiring Circuit (Part 2 of 2). 1984:
