Electronic Spark Advance System Wiring Circuit

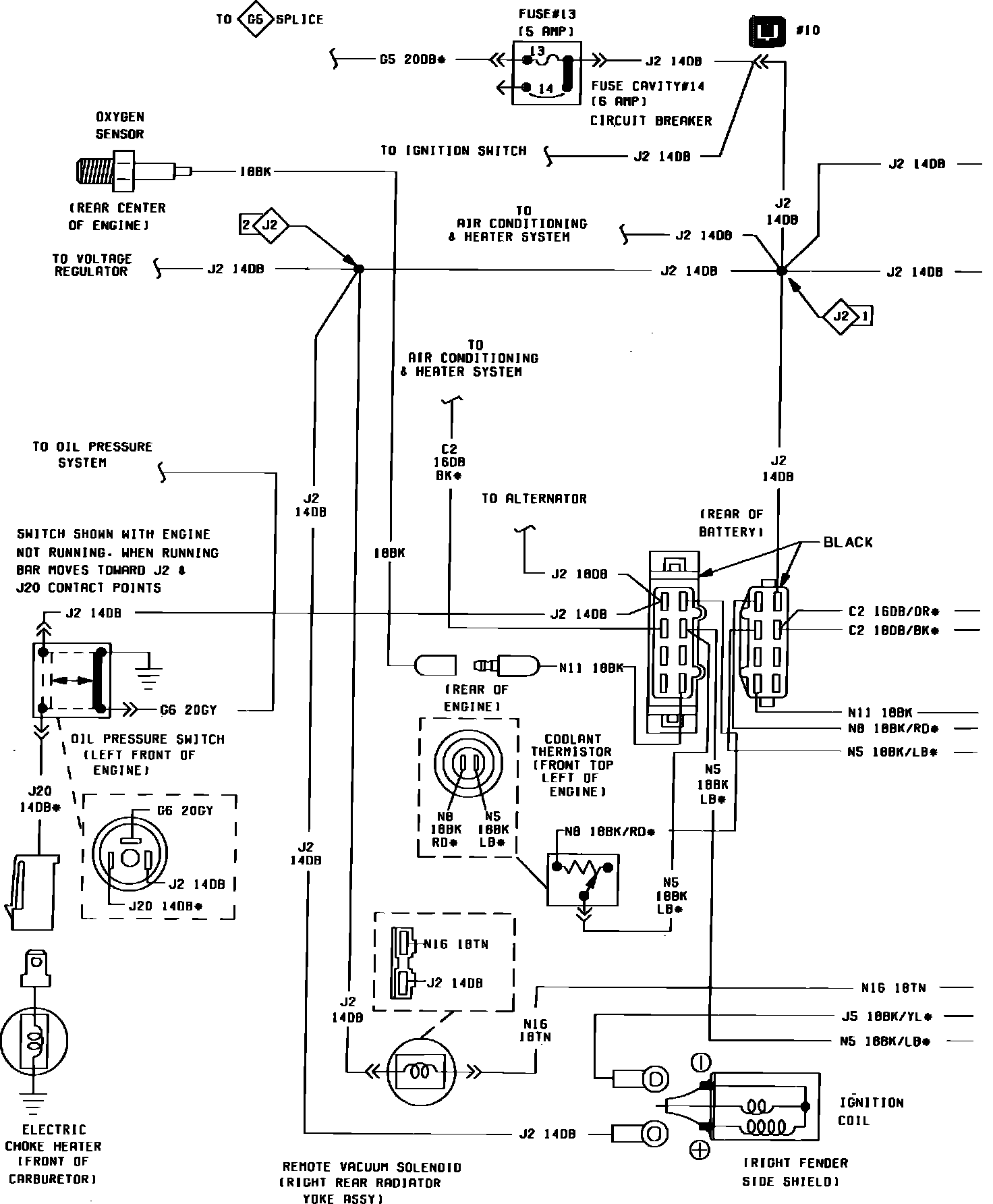

Fig. 40 Electronic Spark Advance Wiring Circuit (Part 1 of 2). 1983-84:

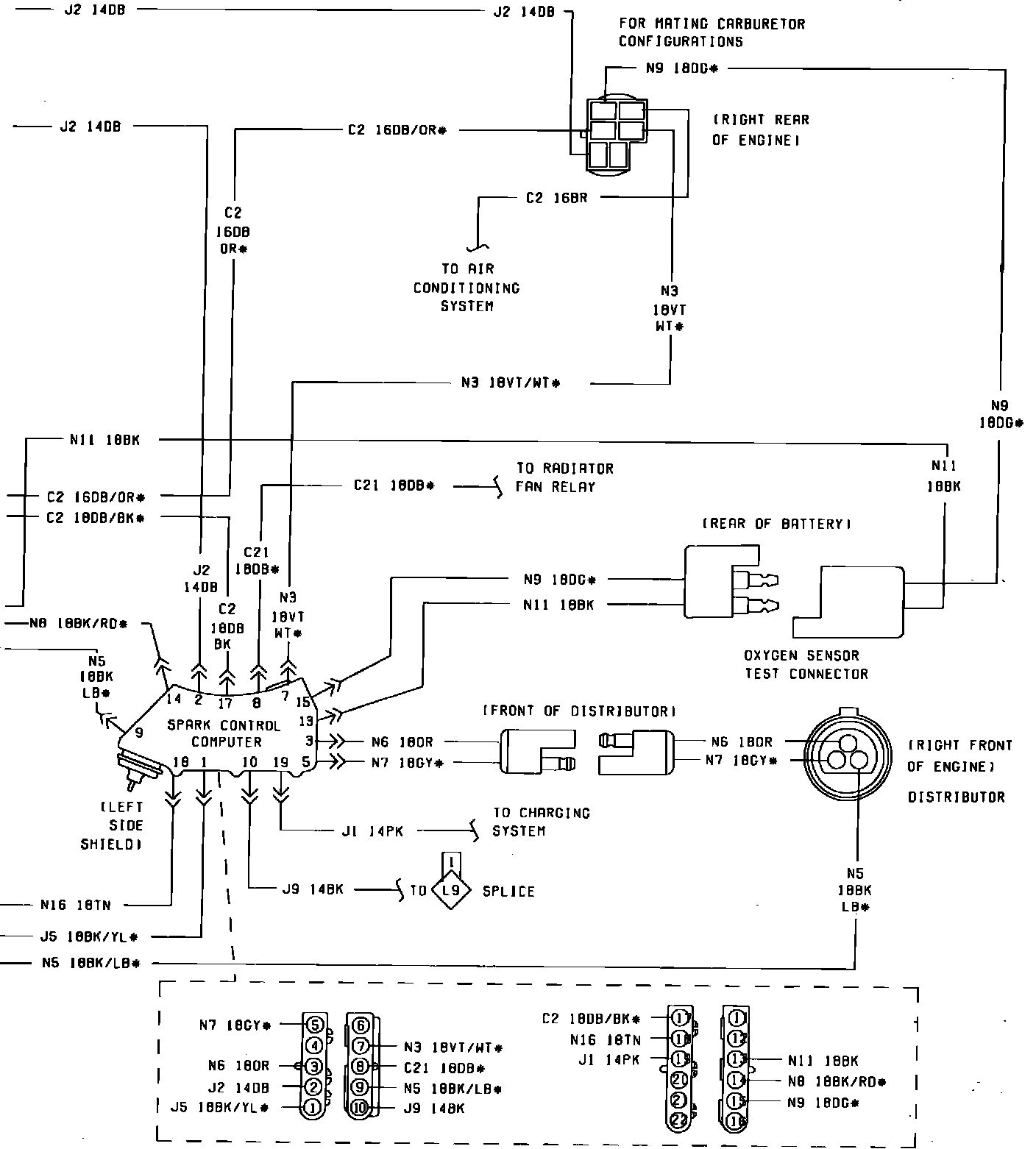

Fig. 40 Electronic Spark Advance Wiring Circuit (Part 2 of 2). 1983-84:
