Home >> Plymouth >> 1984 >> Turismo L4-135 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 1 of 2

Part 1 of 2

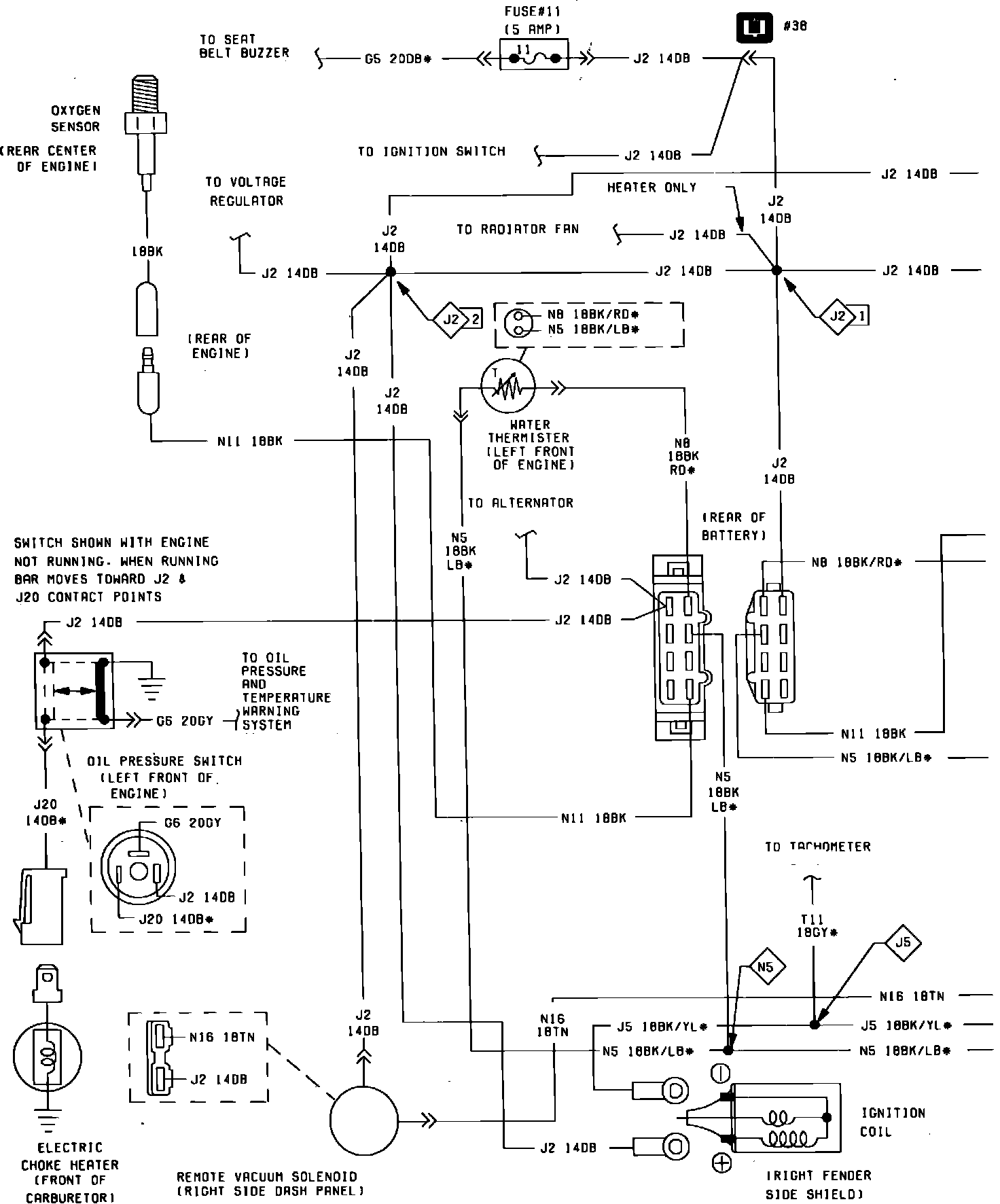

Fig. 33 Electronic Spark Advance Wiring Circuit (Part 1 of 2). 1984 W/2.2L Engine:
