Instrument Panel Circuit Board
>>
With Ralleye Instrument Panel
With Ralleye Instrument Panel

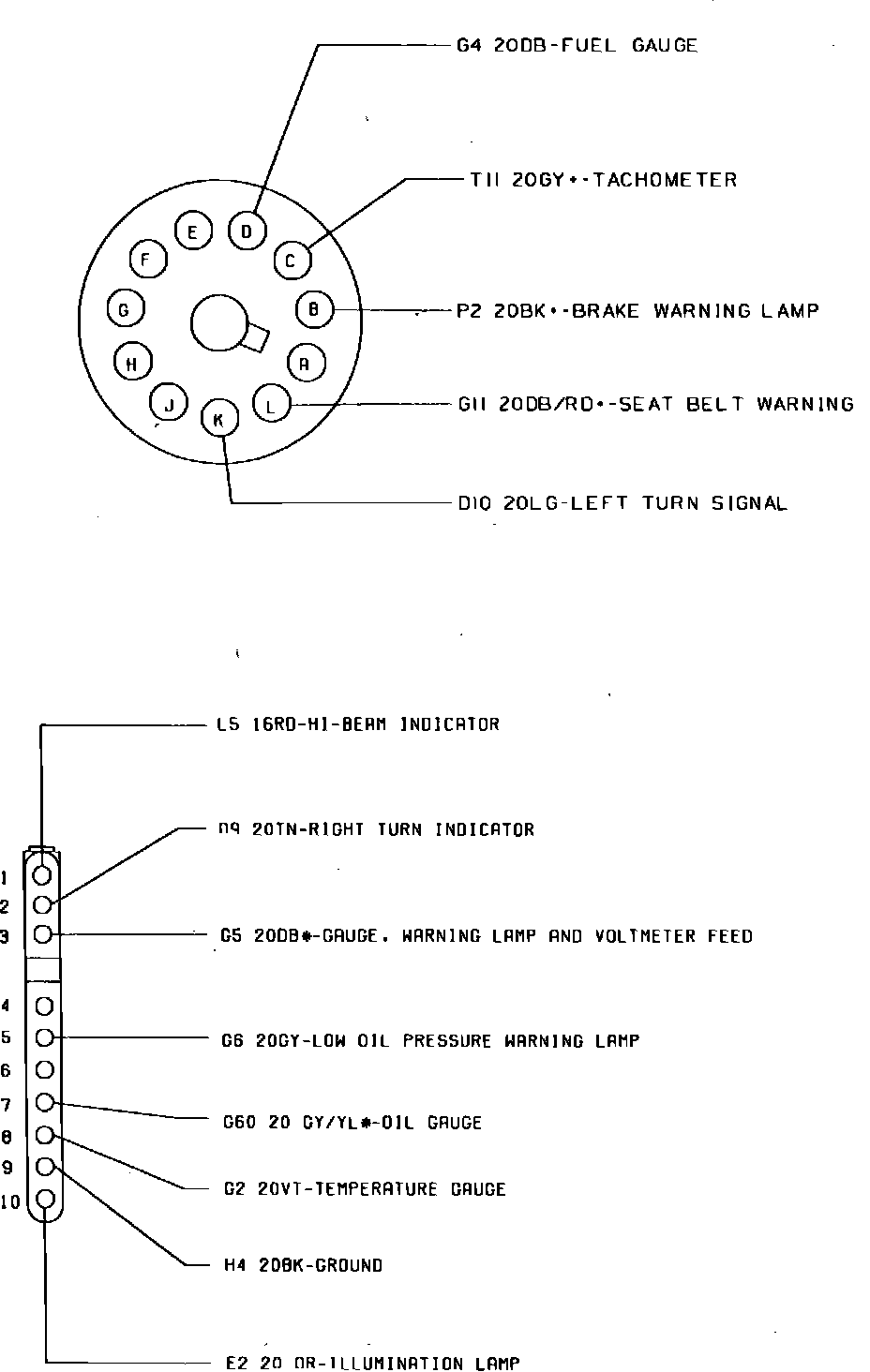

Fig. 12 Circuit Board Connector. 1984 W/Ralleye Instrument Panel:
