Radiator Fan and Compressor Circuits

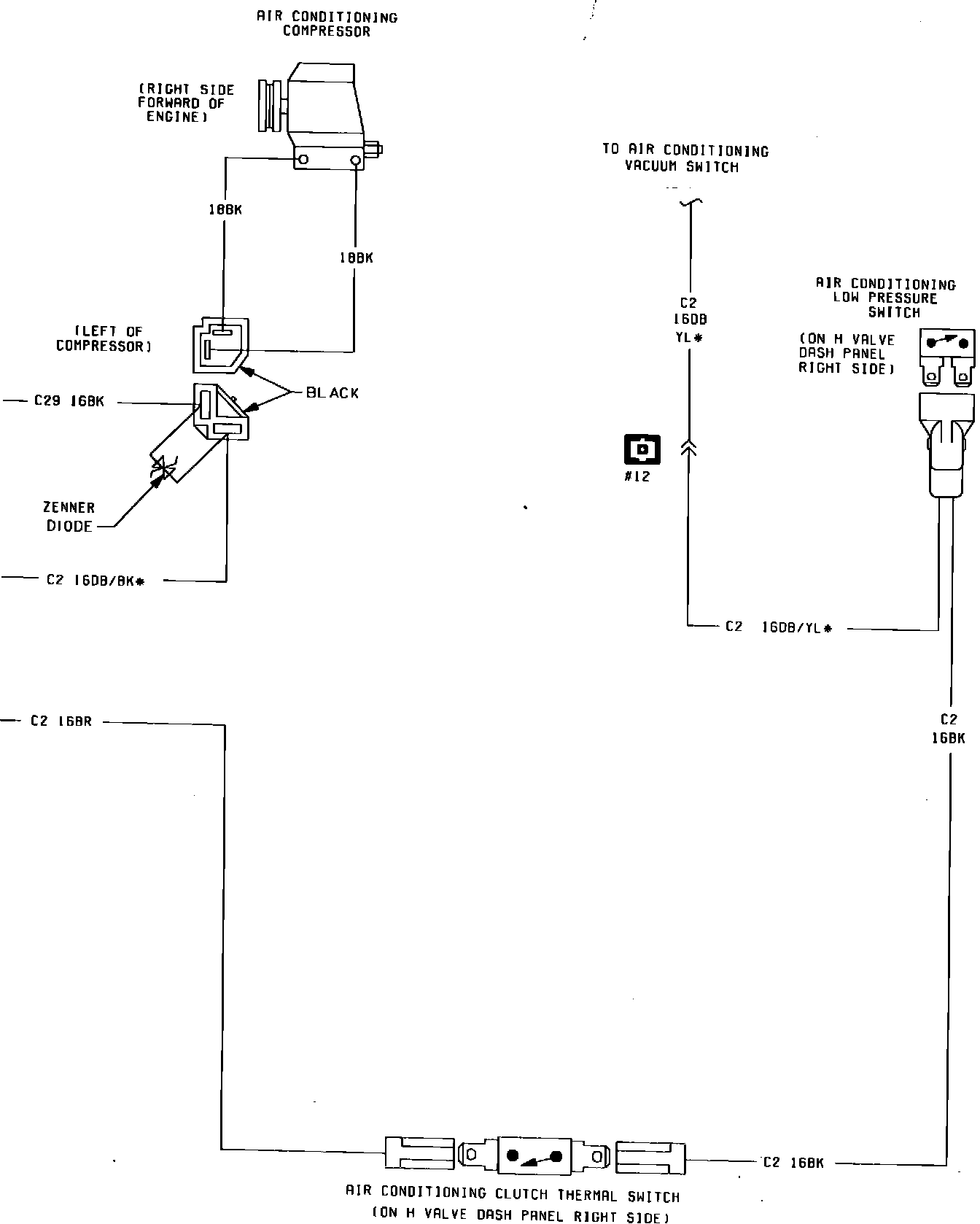

Radiator Fan And Air Conditioning Circuit (Part 1 of 2):



Radiator Fan And Air Conditioning Circuit (Part 2 of 2):
