System Diagram

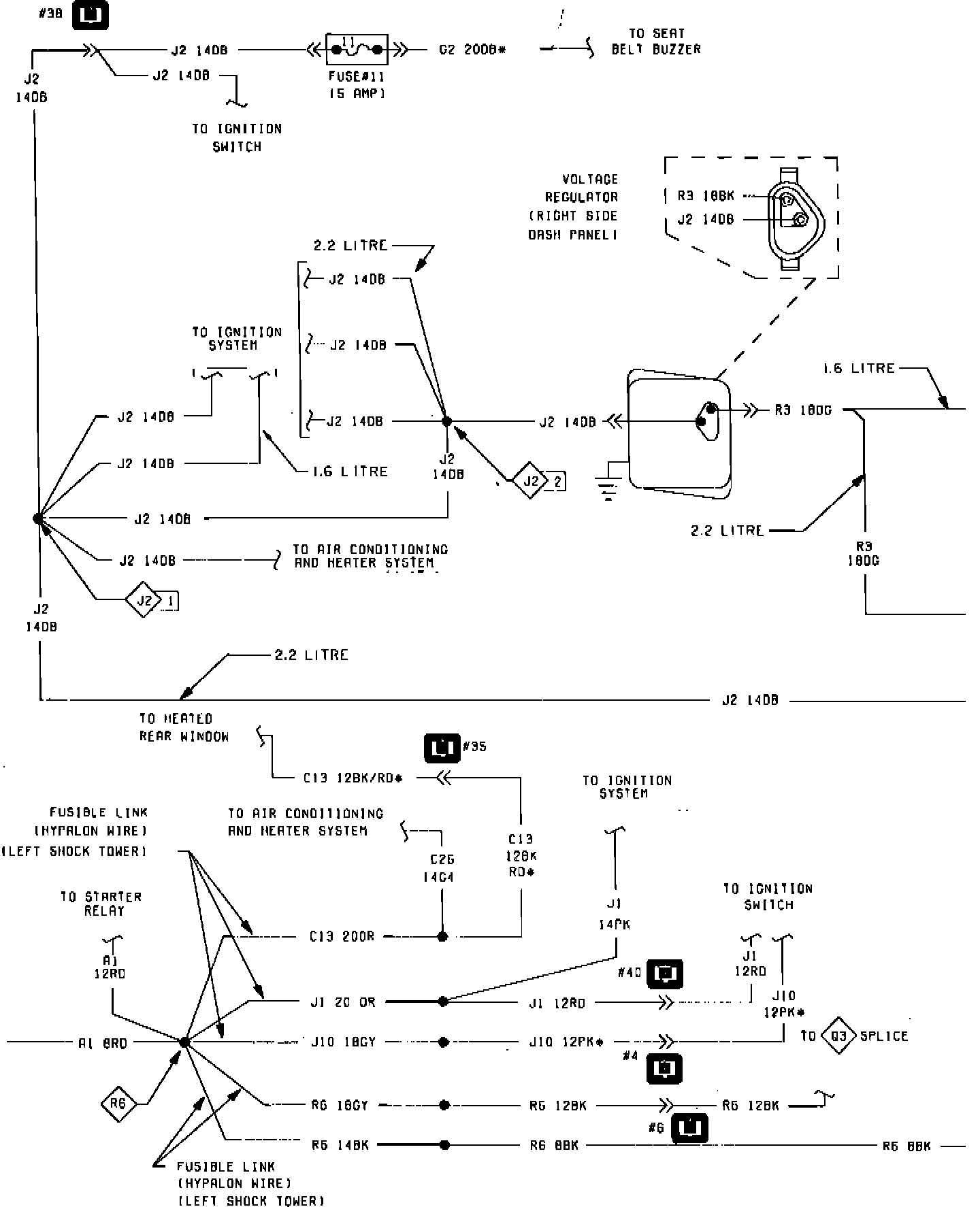

Fig. 25 Charging Circuit & Starter Wiring Circuit (Part 1 of 4). 1984:

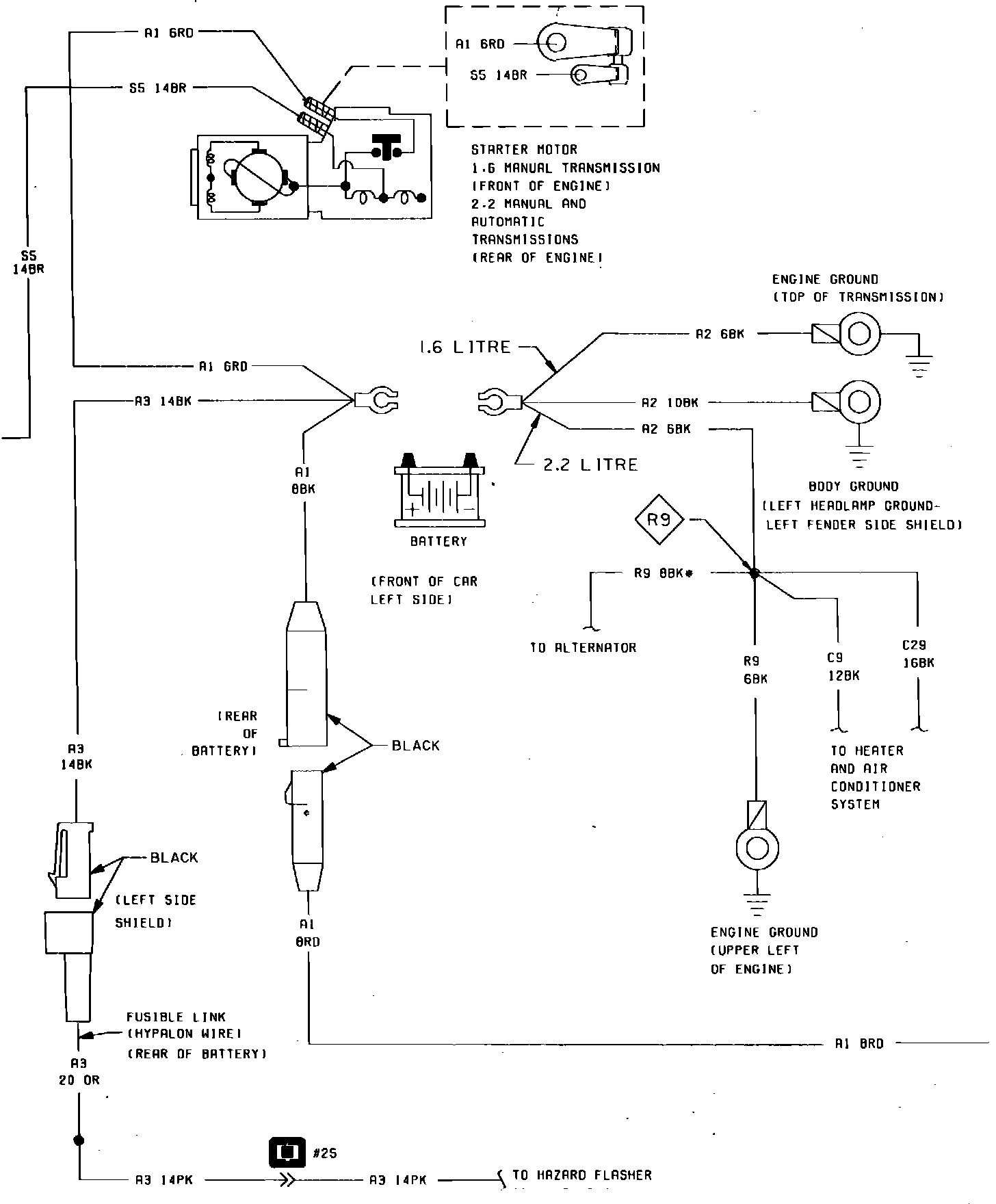

Fig. 25 Charging Circuit & Starter Wiring Circuit (Part 2 of 4). 1984:

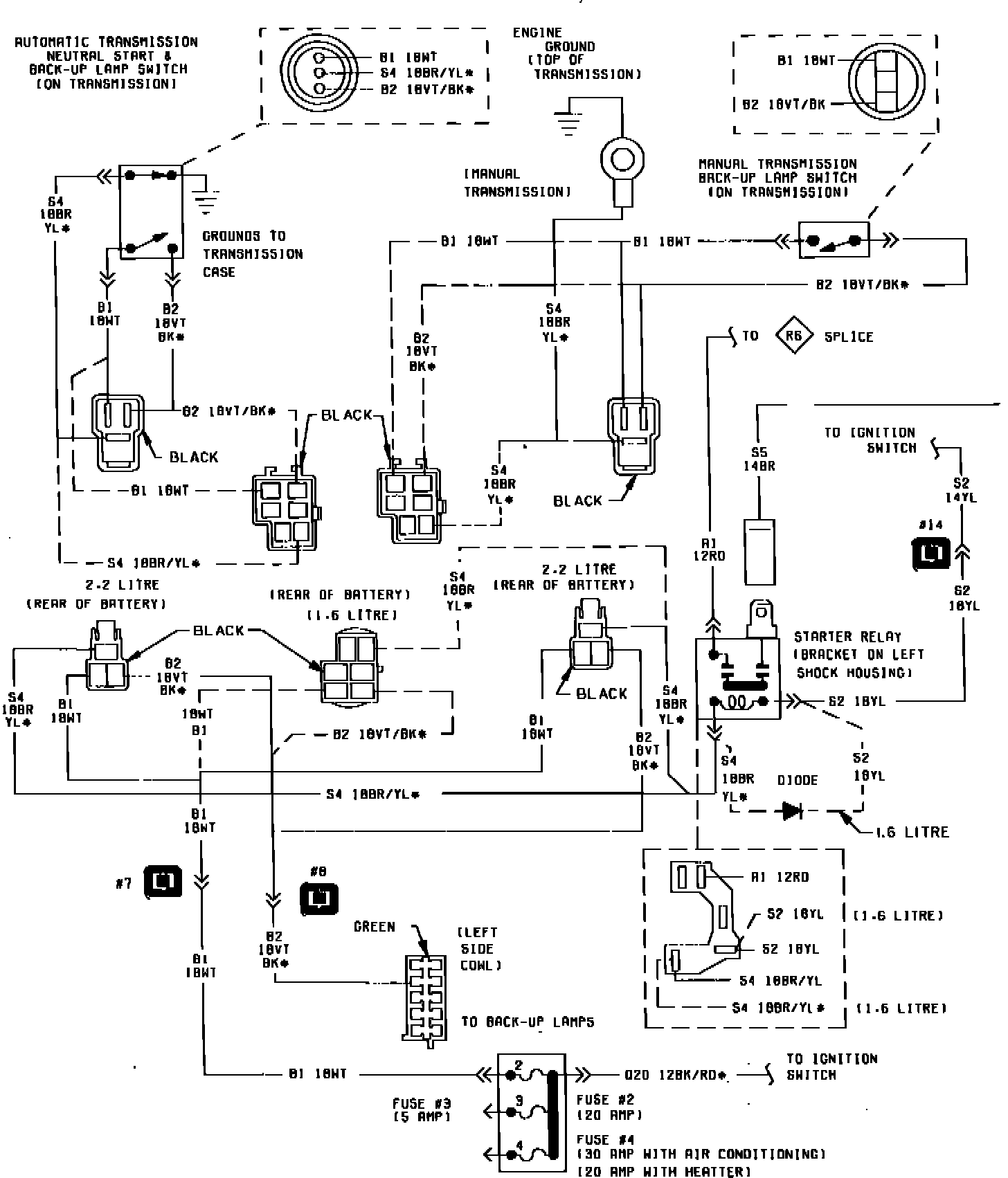

Fig. 25 Charging Circuit & Starter Wiring Circuit (Part 3 of 4). 1984:

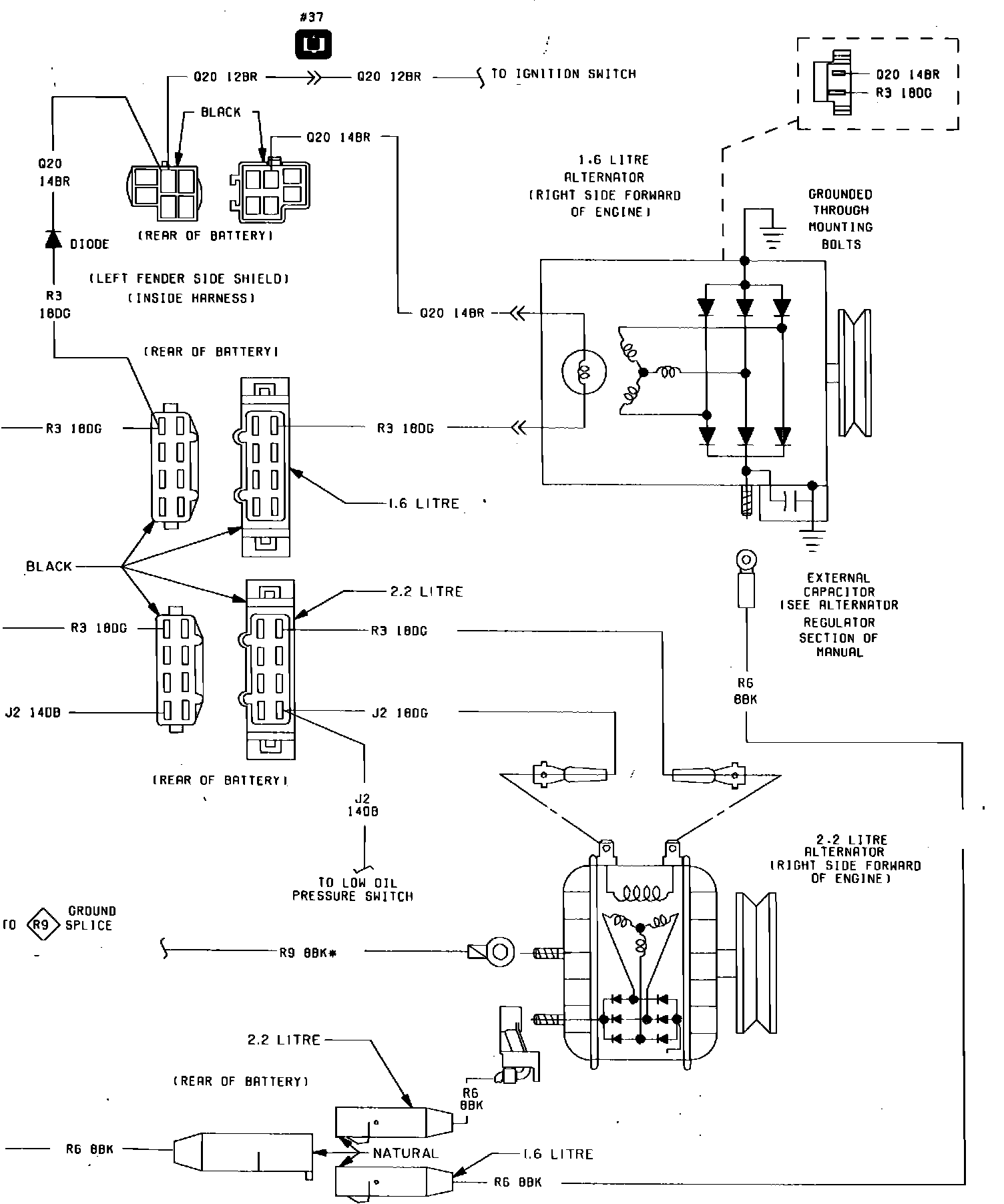

Fig. 25 Charging Circuit & Starter Wiring Circuit (Part 4 of 4). 1984:
