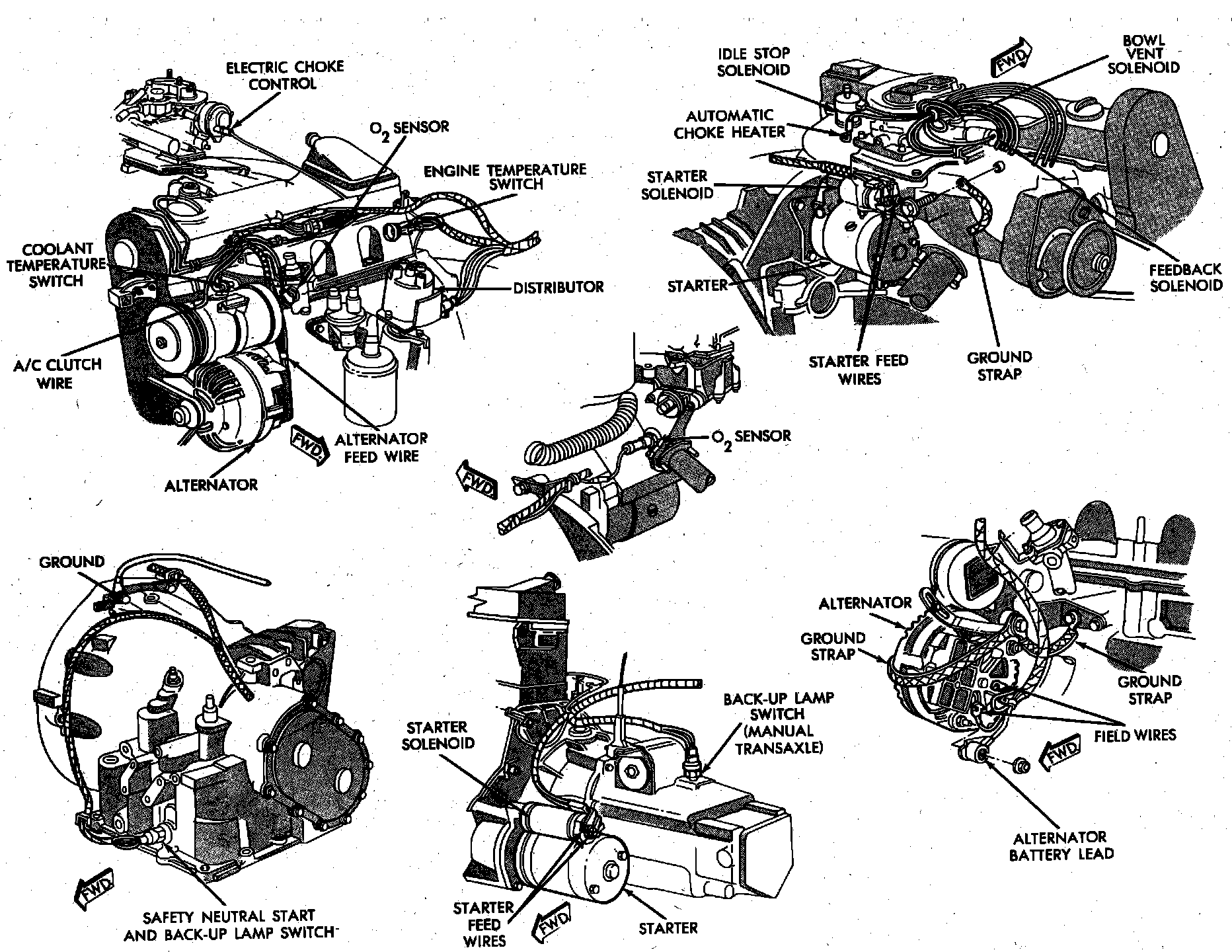

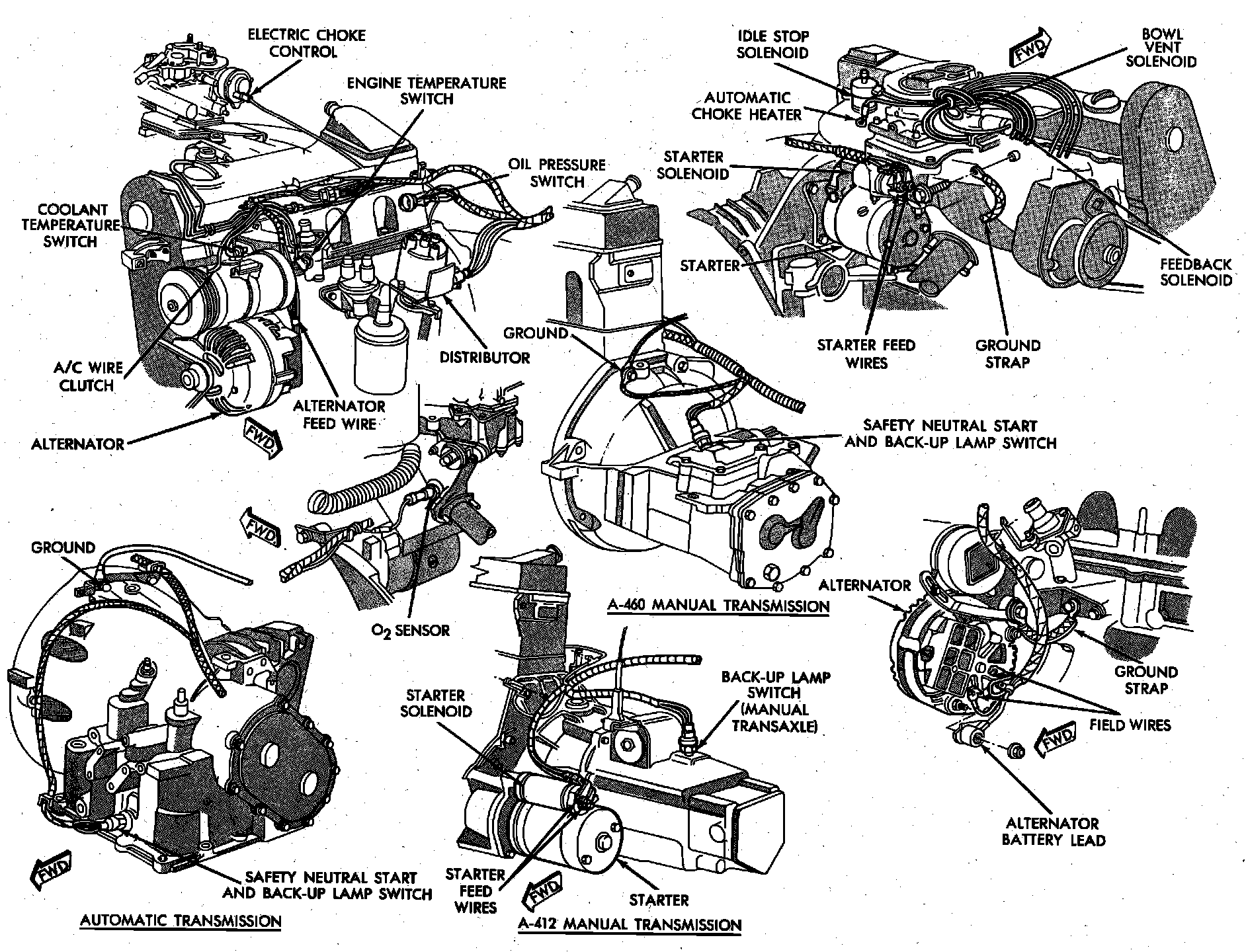

Temperature Switch (Warning Indicator): Locations

Engine & Transmission Electrical Components.:

Front RH Side Of Engine

Applicable to: 1982-83 1.7L

Engine & Transmission Electrical Components.:

Front RH Side Of Engine

Applicable to: 1981 1.7L

Front RH Side Of Engine

Applicable to: 1983 1.7L

Front RH Side Of Engine

Applicable to: 1981-82 1.7L
