Cooling System
Cooling System

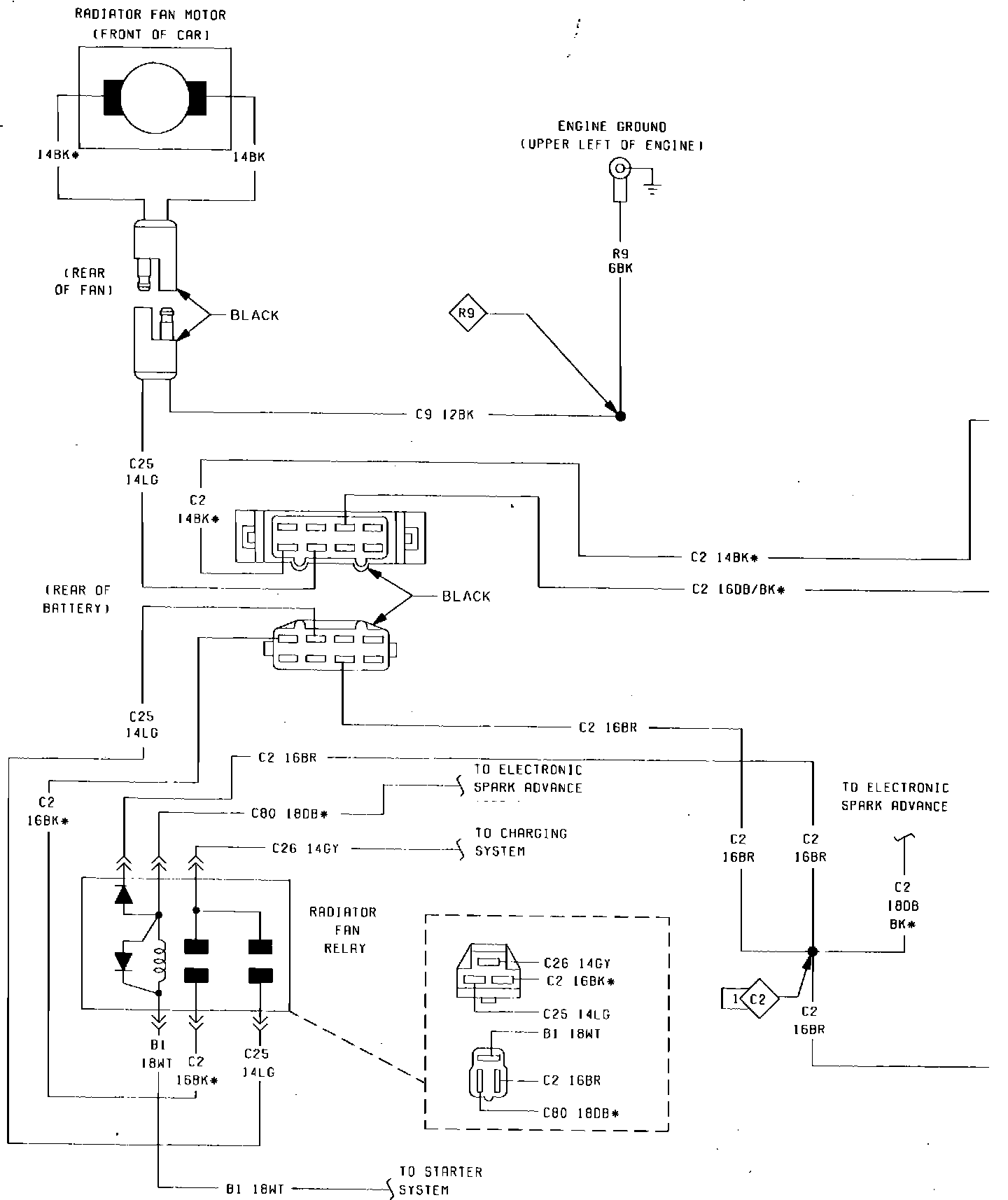

Air Conditioning & Heater Wiring Circuit (Part 1 of 2) 2.2 Carb.:

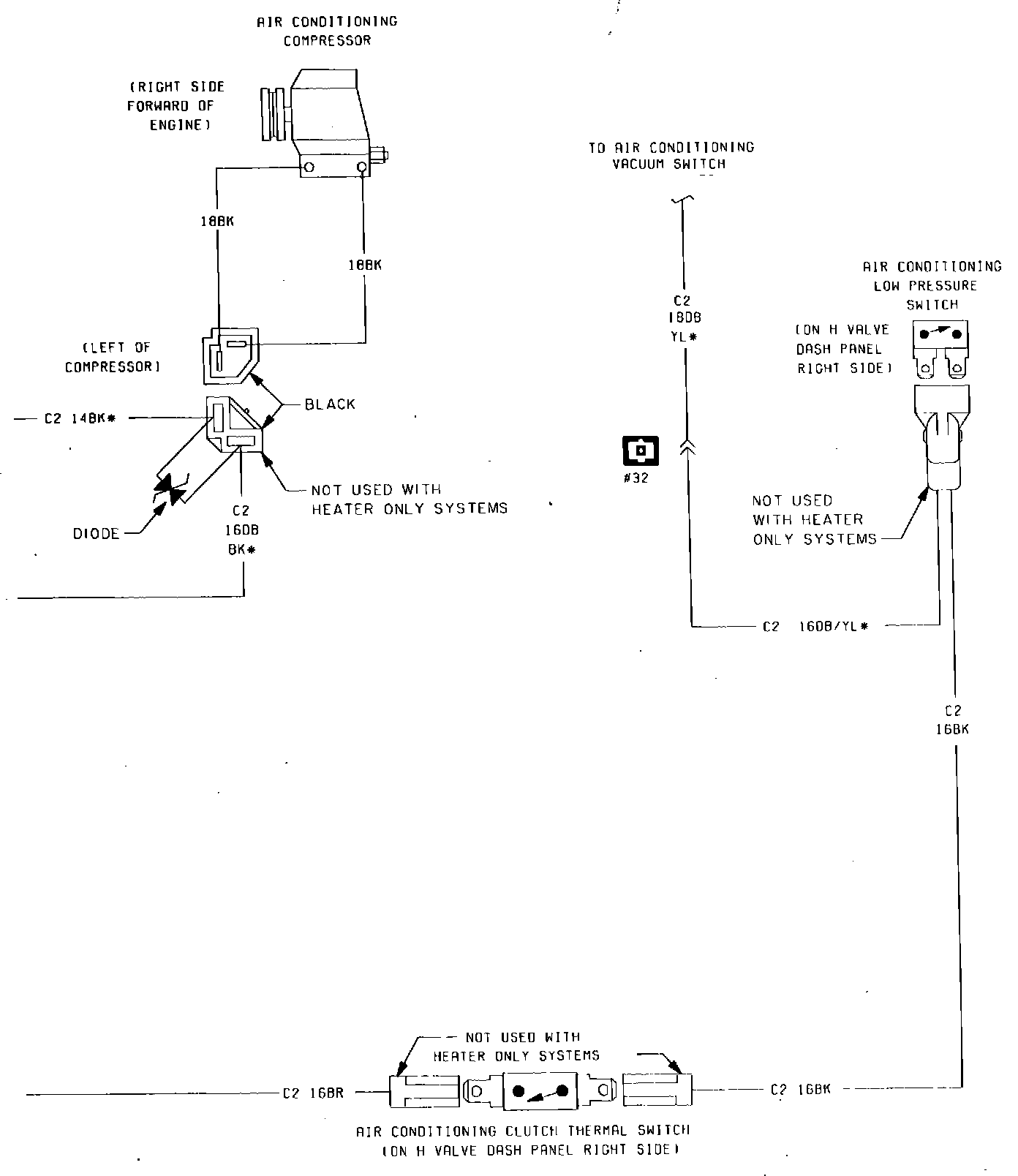

Air Conditioning & Heater Wiring Circuit (Part 2 of 2) 2.2 Carb.:
