Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1985
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mixture Control Solenoid
>>
5 Speed
5 Speed

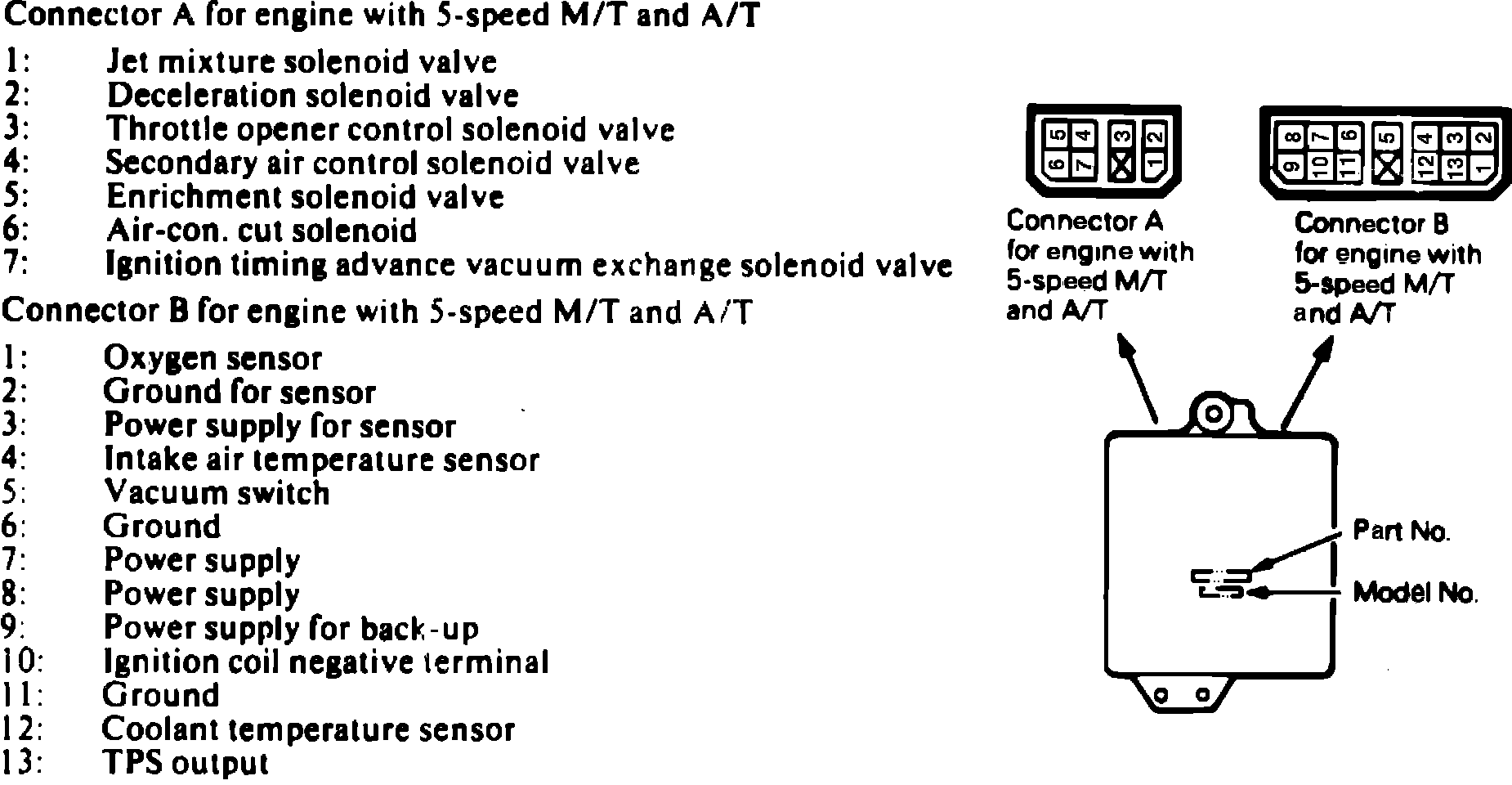

Carburetor control unit terminal location. 1985 Colt w/5 speed man. trans. or auto. trans.:
