Altitude Compensator

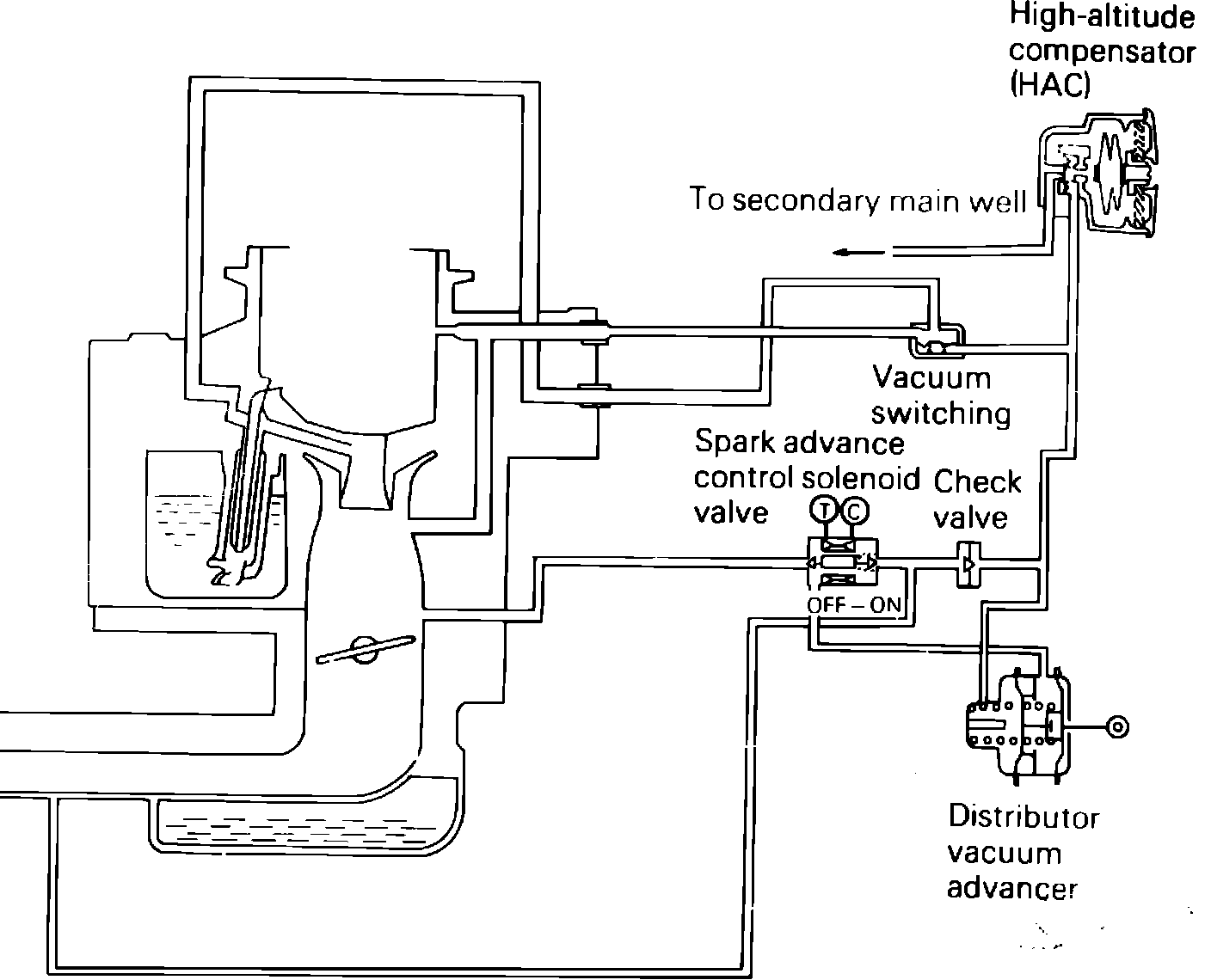

High altitude compensation system. Federal. 1985 1500cc engine, exc. Calif.:



High altitude compensation system. Calif. 1985 1500cc engine, Calif.:
