Fuses/Wiring - Capacity and Diagram Revision
Models1985 Colt Vista
Subject
Service Manual Revision Fuse Capacity Table & Wiring Diagram
Index
ELECTRICAL
Date May 28, 1985
No.
08-18-85
P-1794-C
The 1985 Colt Vista Service Manual, publication #81-270-5012, requires updates be made to the fuse capacity table on page 8-110 and fold-out wiring diagram at the end of the manual.

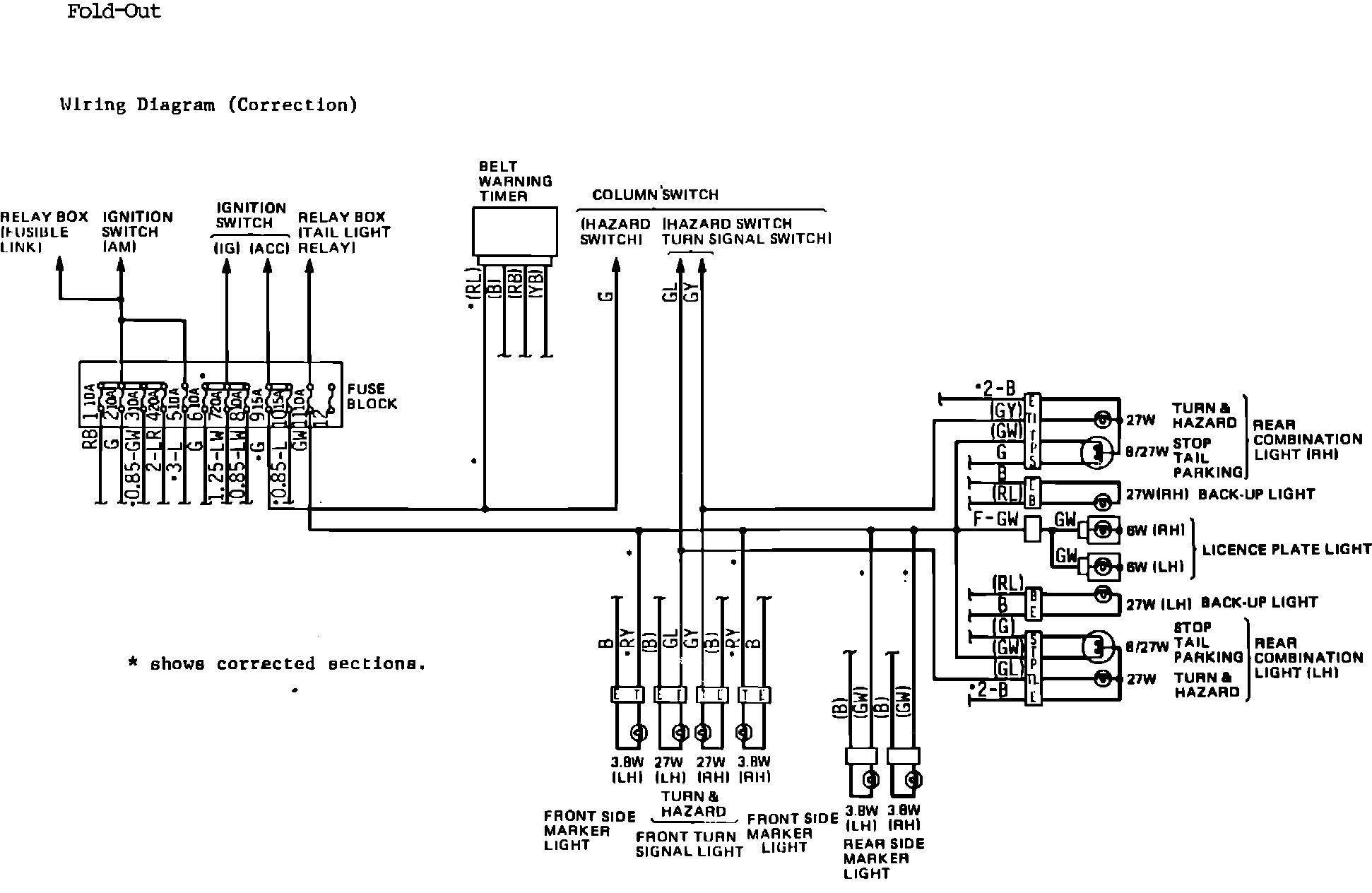

Wiring Diagram (Correction):
The fuse capacity table correction is shown on page 2. The fold-out wiring diagram revision is shown on page 3..
Please be sure to note these updates in your 1985 Colt Vista Service
Manual.
POLICY: Information only
1985 Colt Vista Service Manual
Page 8-110
Fuse Capacity Table (Correction)
Power supply Fuse No. Rated Load circuit
circuit capacity A
Battery 1 10 Clock, Door-ajar warning light, Dome light (front, rear), Reading light
2 10 Stop light, Seat belt reminder light, Buzzer, Auto speed control unit
3 10 Hazard light
4 20 Defogger, Defogger switch indicator light, Transistor relay
5 20 Heater fan motor, Liftgate lock actuator, Transistor relay
Ignition 6 10 Horn
Switch (ACC)
7 15 Wiper motor (front, rear), Washer motor (front, rear), Intermittent wiper relay
8 15 Radio, Cigarette lighter, Clock, Remote control mirror
Ignition Turn signal light, Heater relay, Gauges, Low-fuel warning light
Switch (ON) 9 10 Charging warning light, Oil pressure-warning light, Brake warning light
Seat belt warning timer, Defogger relay, Speed control unit, Vacuum pump
10 10 Power window relay, Back-up light, 5-M/T control unit
Select control valve, ELC-A/T control unit
Battery Meter illumination light, Tail light, Clock, Licence plate Light
(through tail Side marker light (front, rear), Heater control panel illumination light
light relay) 11 10 Defogger switch illumination light, Ashtray illumination light
Cigarette fighter illumination light, Radio illumination light Inhibitor switch illumination light, Transistor relay
