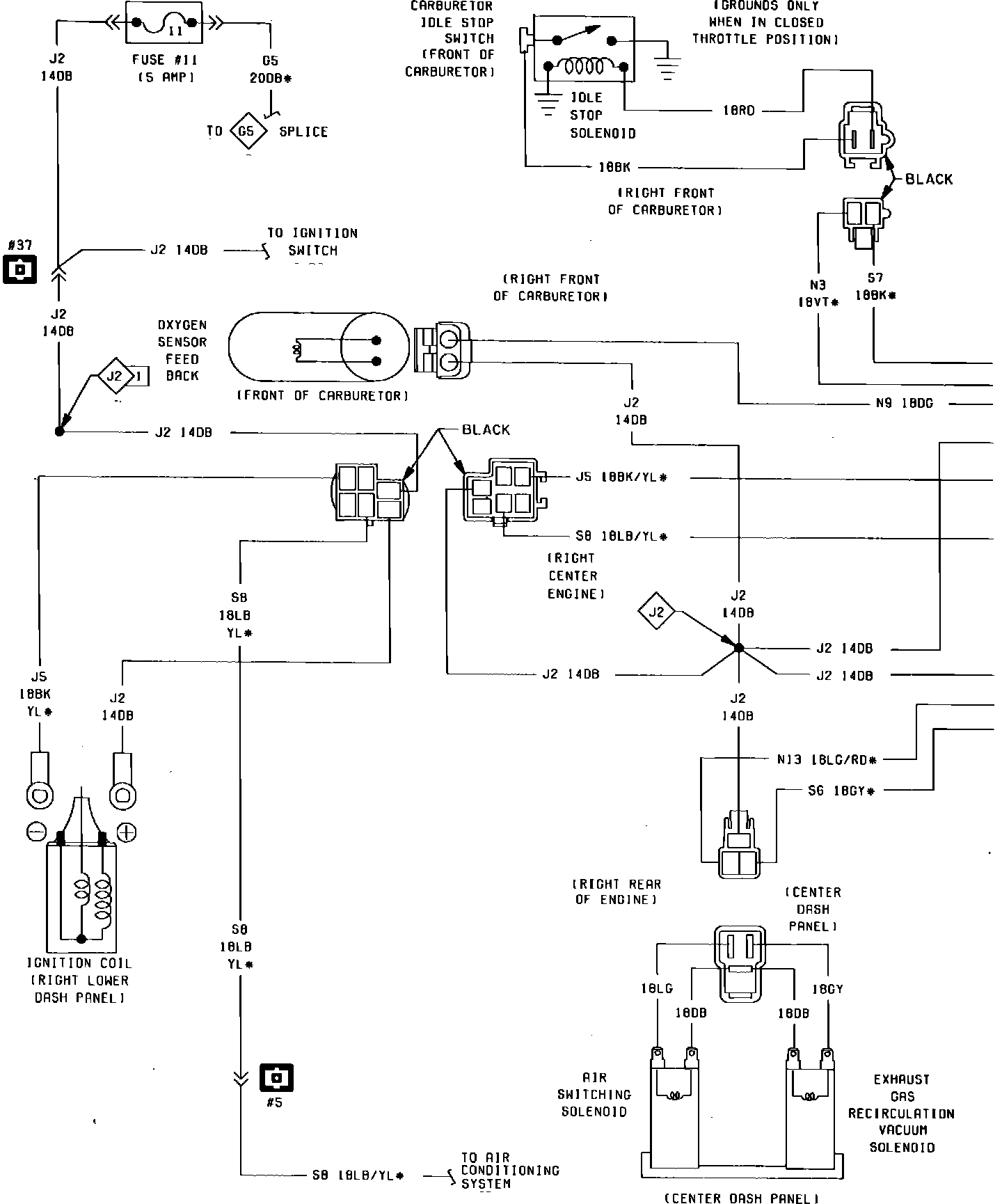

Fig. 26 Ignition System Electronic Spark Advance Wiring Circuit, 8 Cylinder With 4 Barrel Carburetor (Part 1 of 2). 1985:
