With Intermittent Wiper

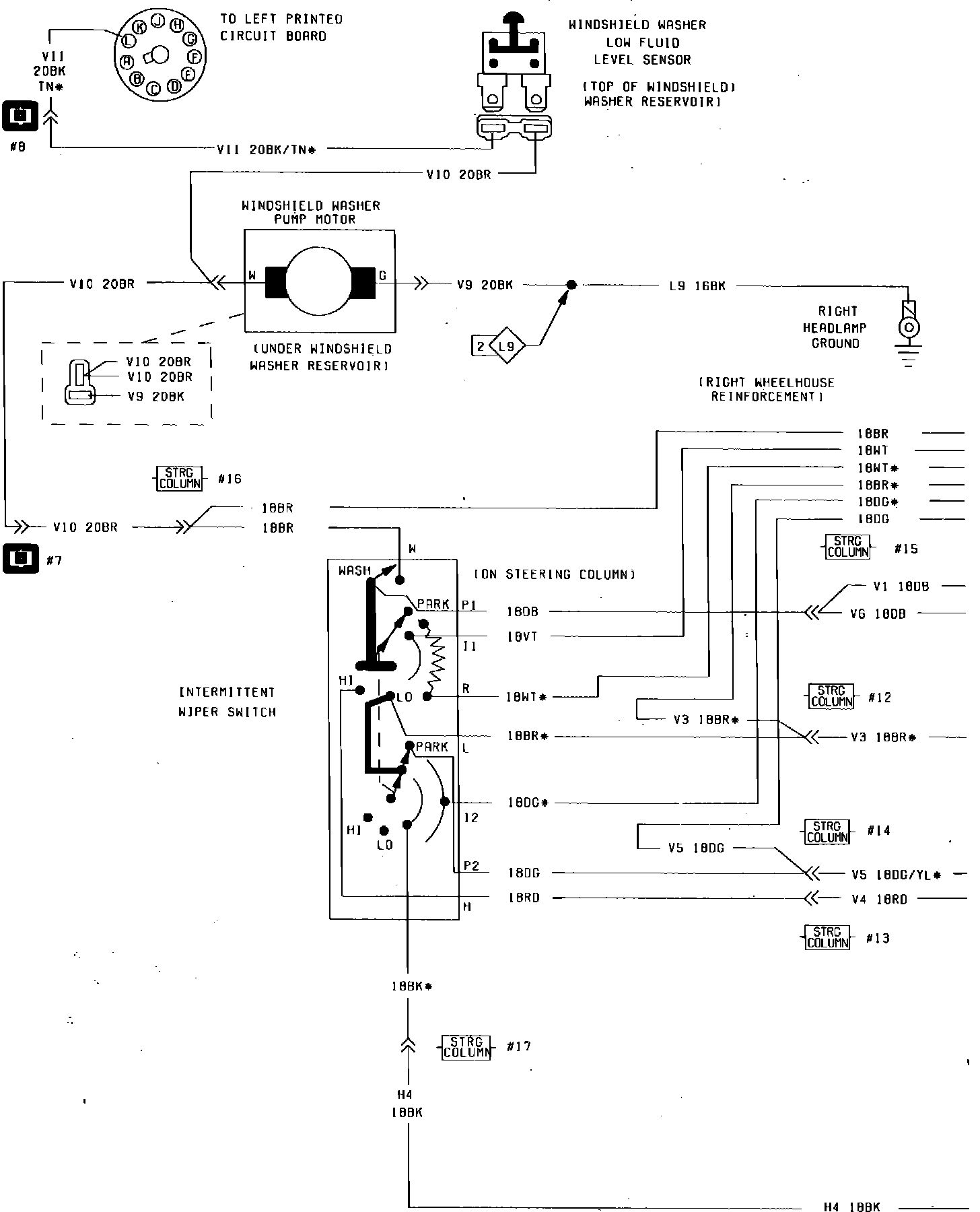

Fig. 43 Windshield Wiper Wiring Circuit (With Intermittent, Part 1 of 2). 1985:

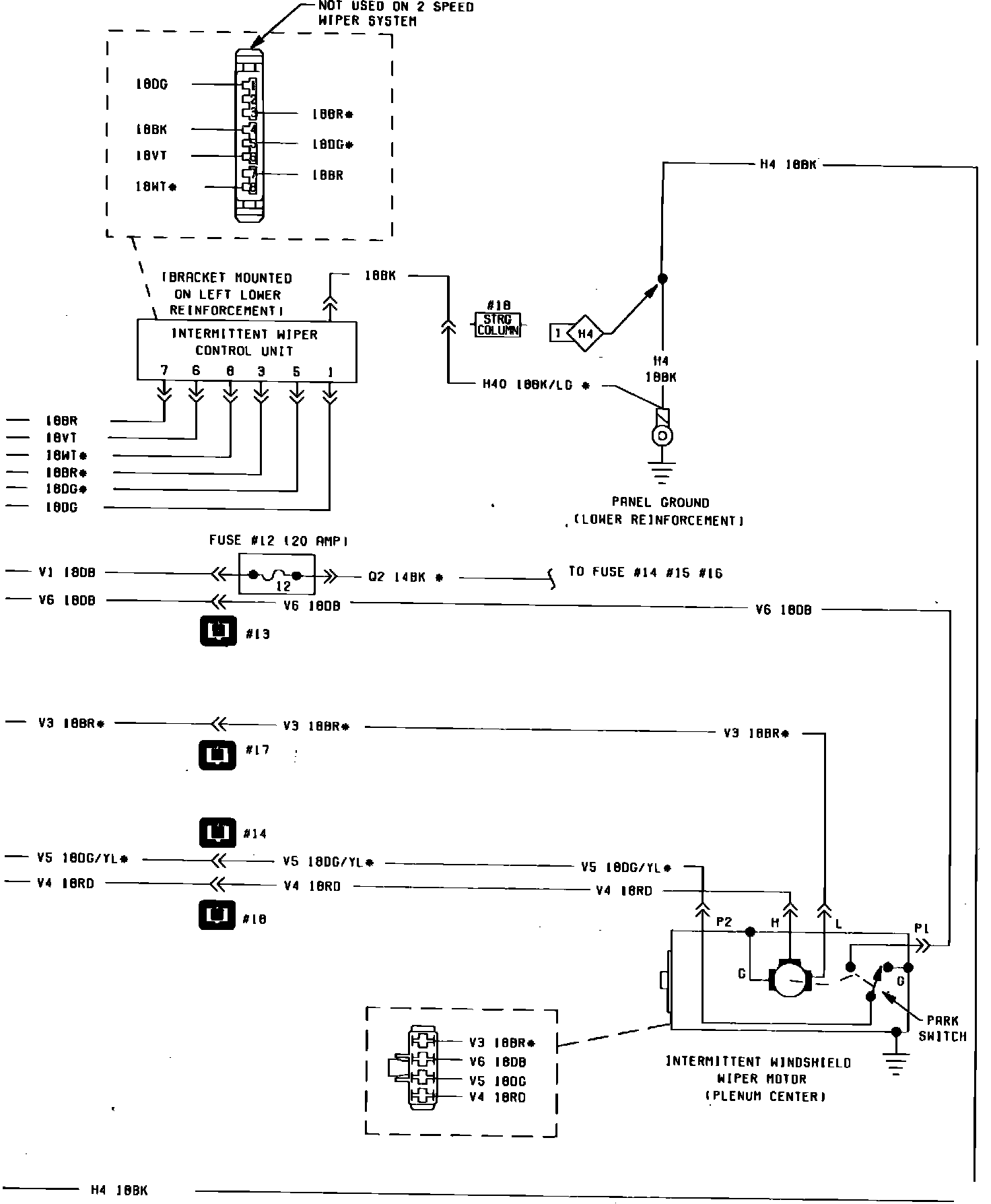

Fig. 43 Windshield Wiper Wiring Circuit (With Intermittent, Part 2 of 2). 1985:
