Rear Lighting

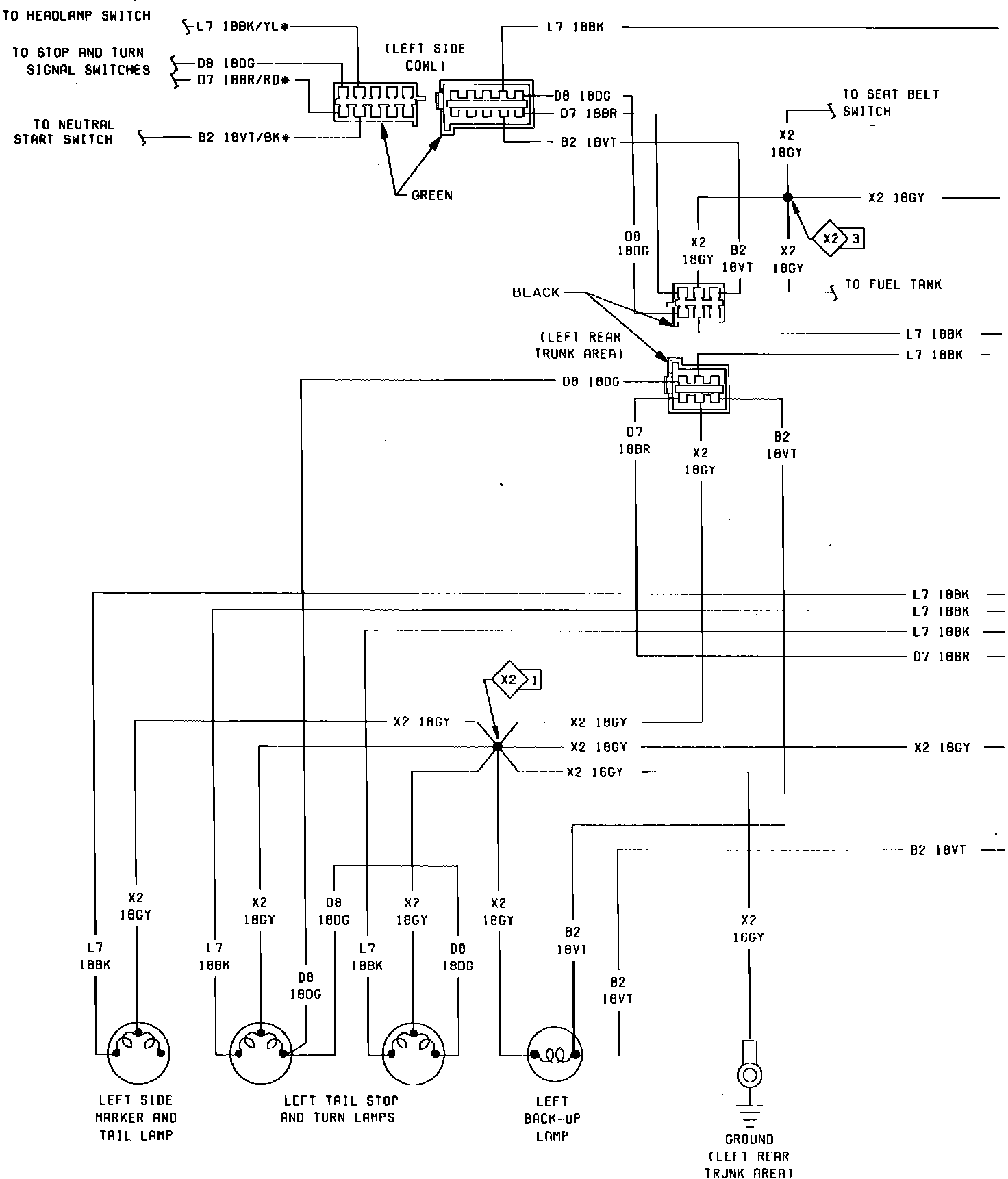

Fig. 39 Rear Lighting Wiring Circuit (Part 1 of 2). 1985 Diplomat & Gran Fury:



Fig. 39 Rear Lighting Wiring Circuit (Part 2 of 2). 1985 Diplomat & Gran Fury:
