Accessory Delay Module
>>
Brake/Fuel Tank/Oil Pressure/Seat Belt & Temperature Warning
Brake/Fuel Tank/Oil Pressure/Seat Belt & Temperature Warning

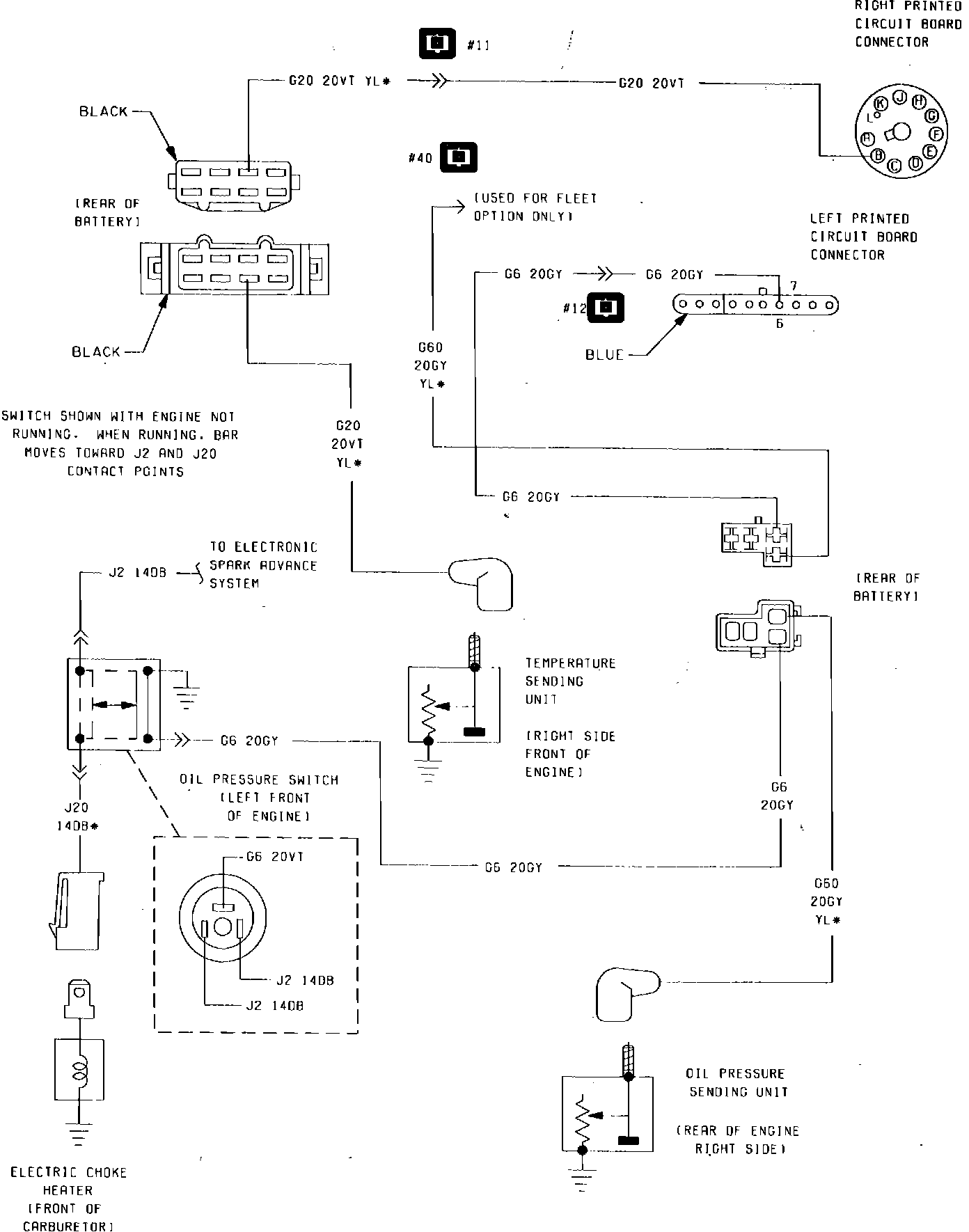

Fig. 13 Brake, Oil & Temperature Switch Wiring Circuit. 1985 W/2.2 Litre Engine:
