System Diagram

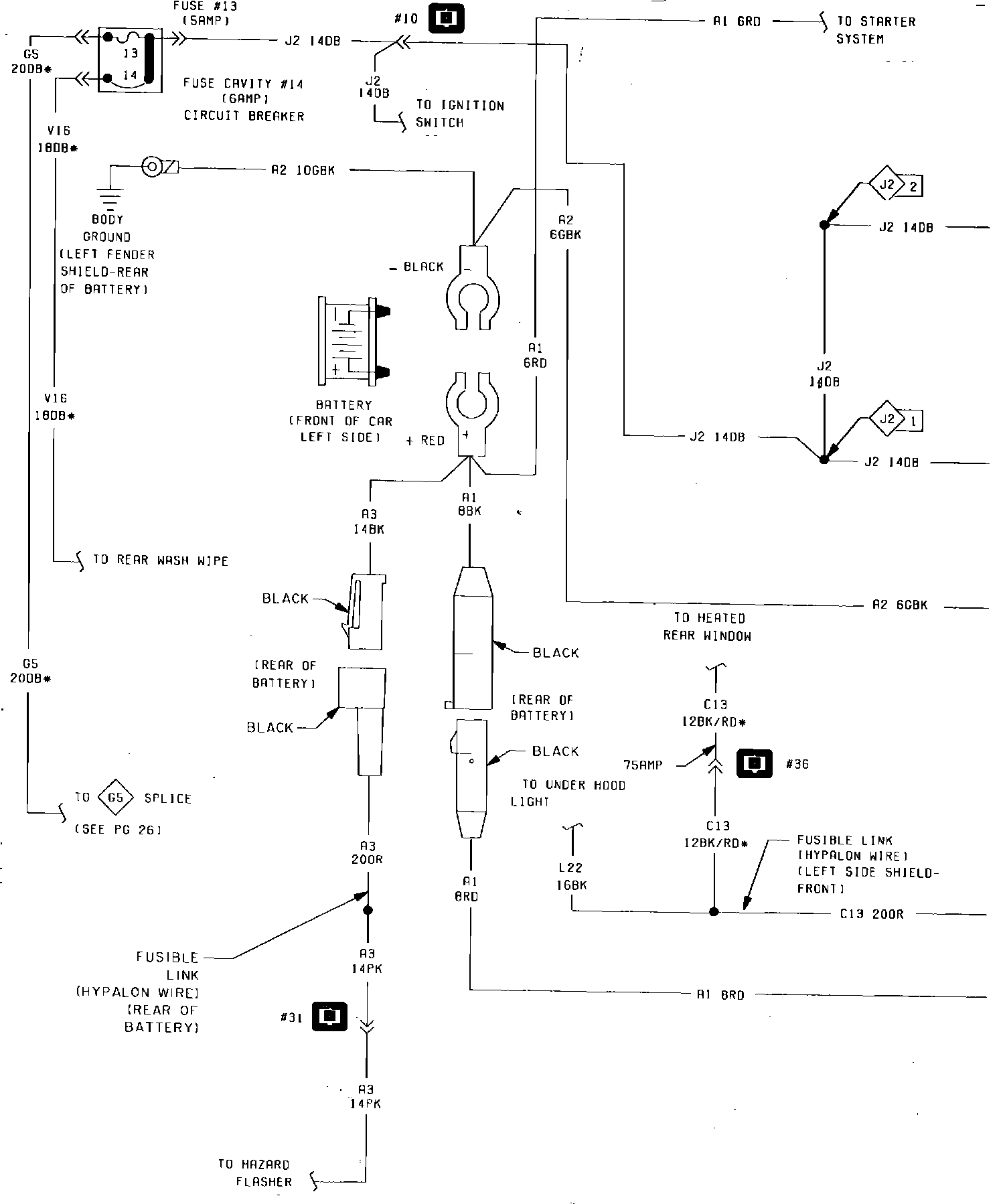

Fig. 16 Charging System Wiring Circuit (Part 1 of 2). 1985 W/2.2 Litre Engine:

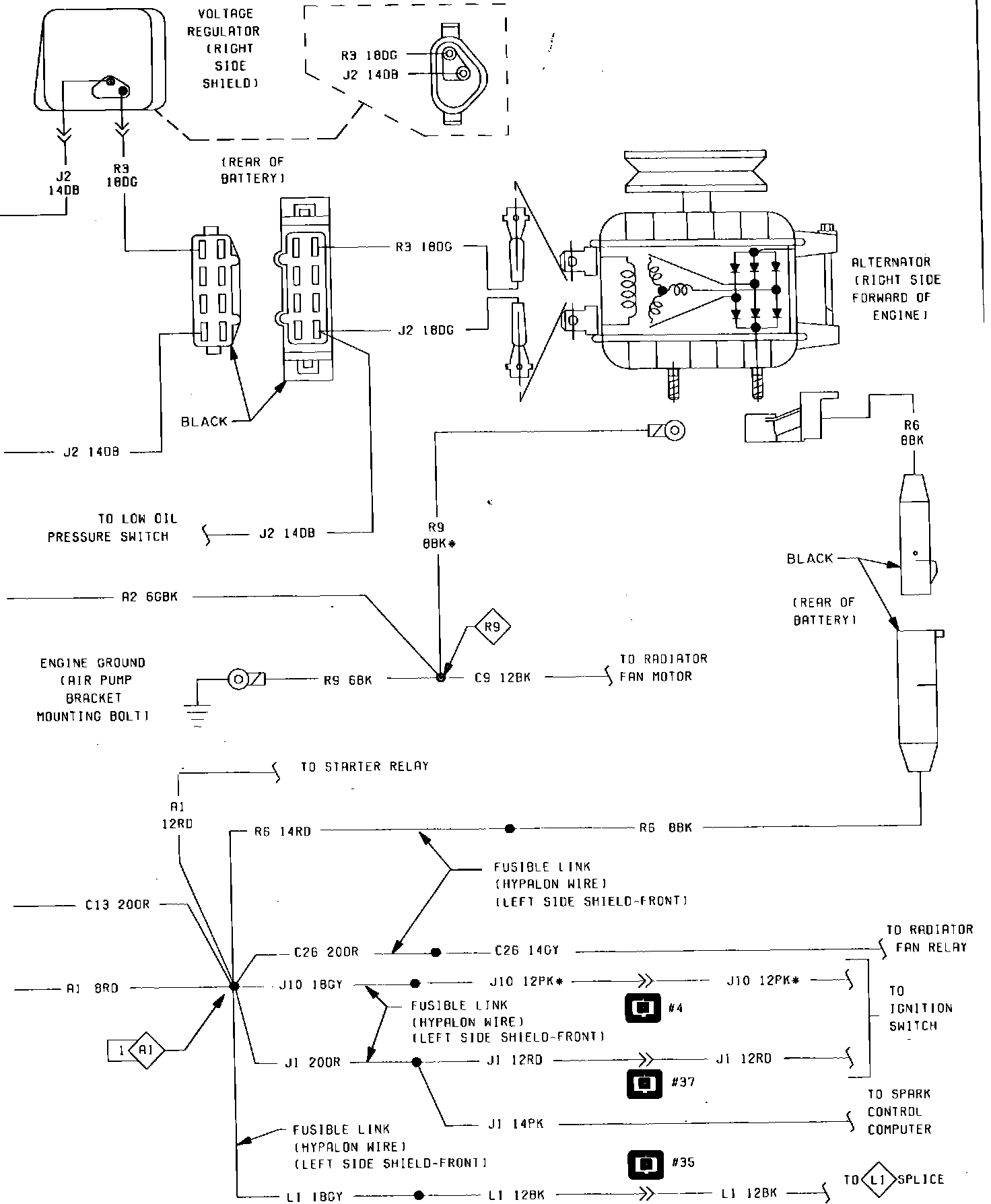

Fig. 16 Charging System Wiring Circuit (Part 2 of 2). 1985 W/2.2 Litre Engine:

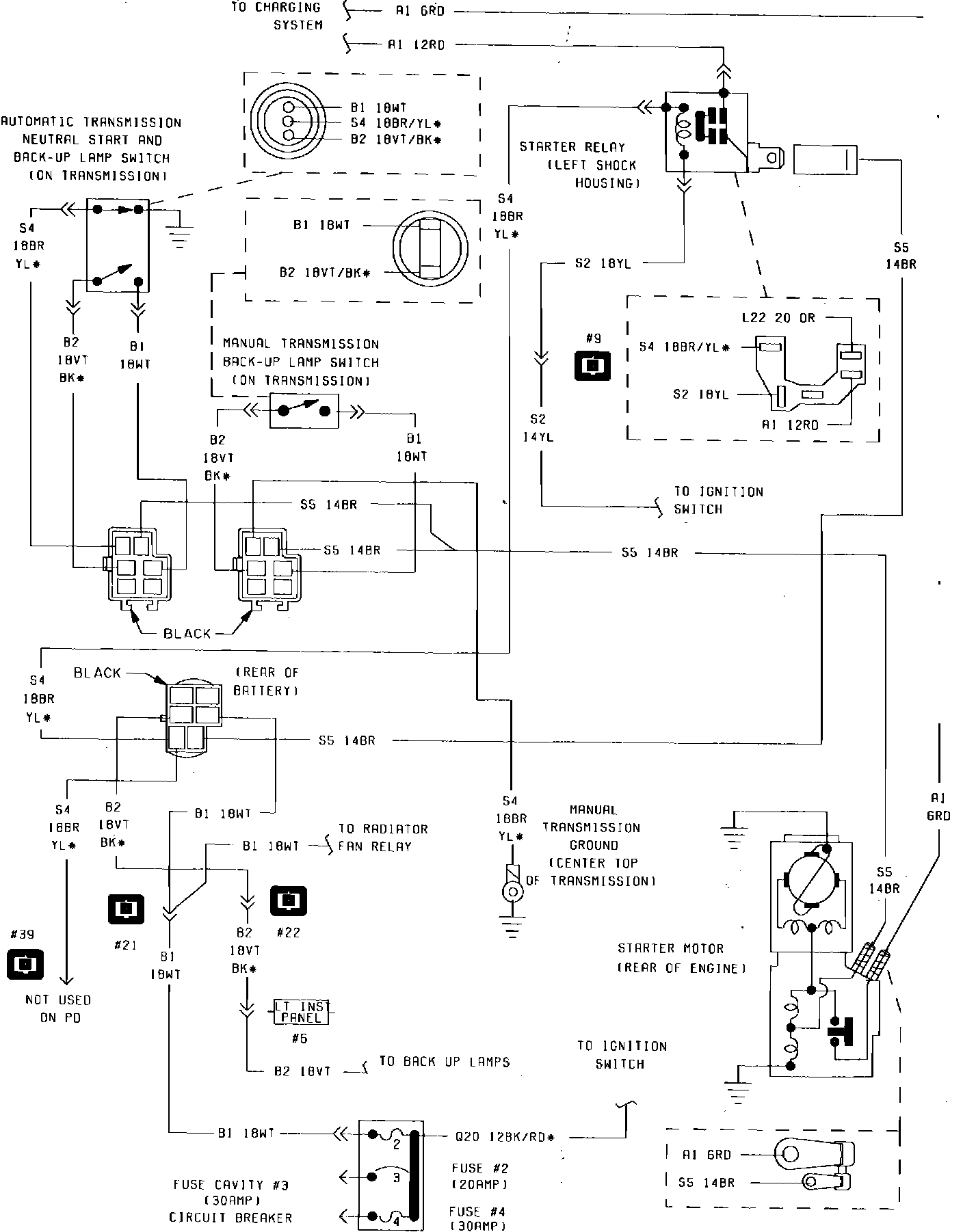

Fig. 48 Starter System Wiring Circuit. 1985 W/2.3 Litre Engine:
