Home
>>
Plymouth
>>
1985
>>
Reliant L4-156 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

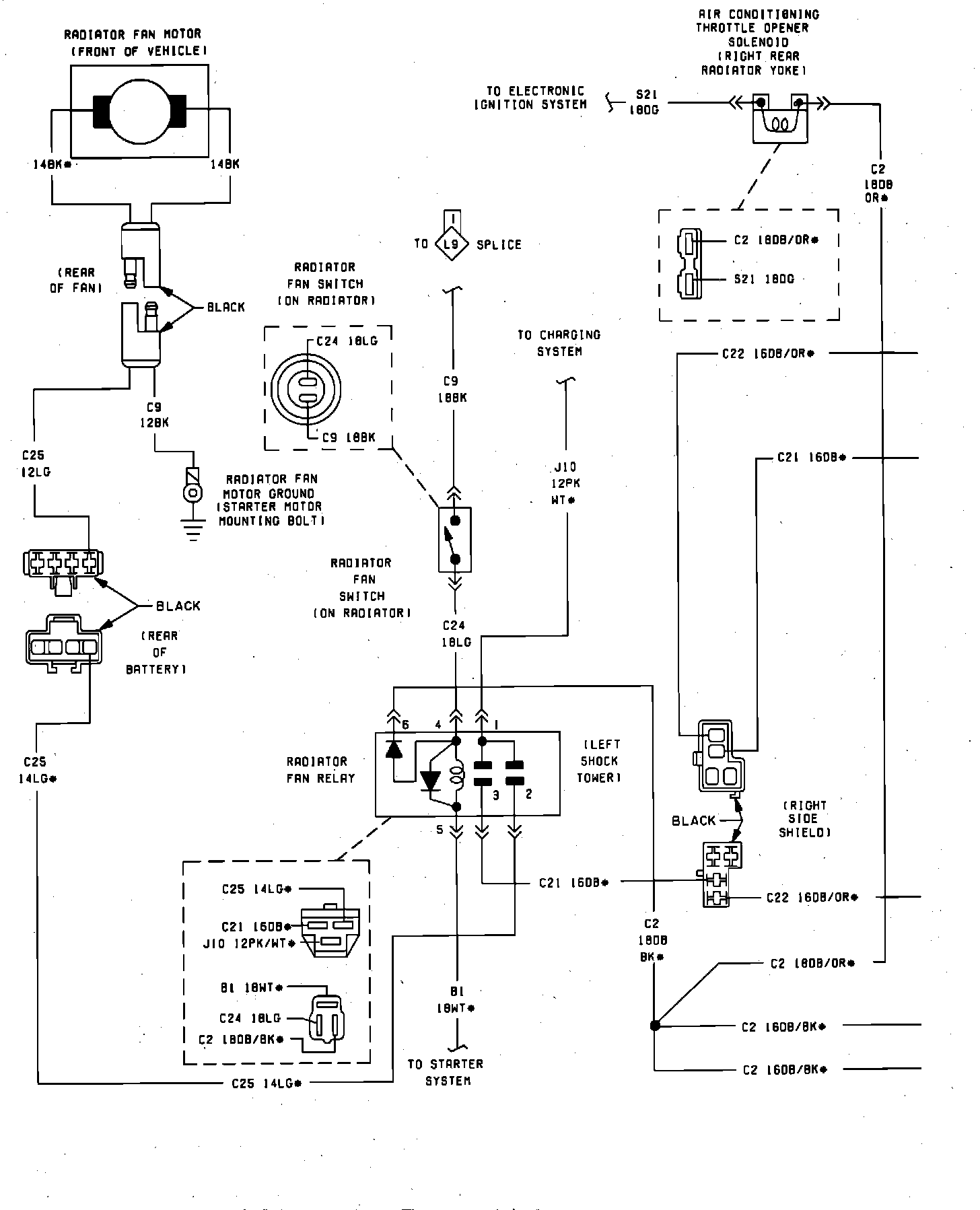

Cooling System
>>
W/Feedback Carburetor
W/Feedback Carburetor

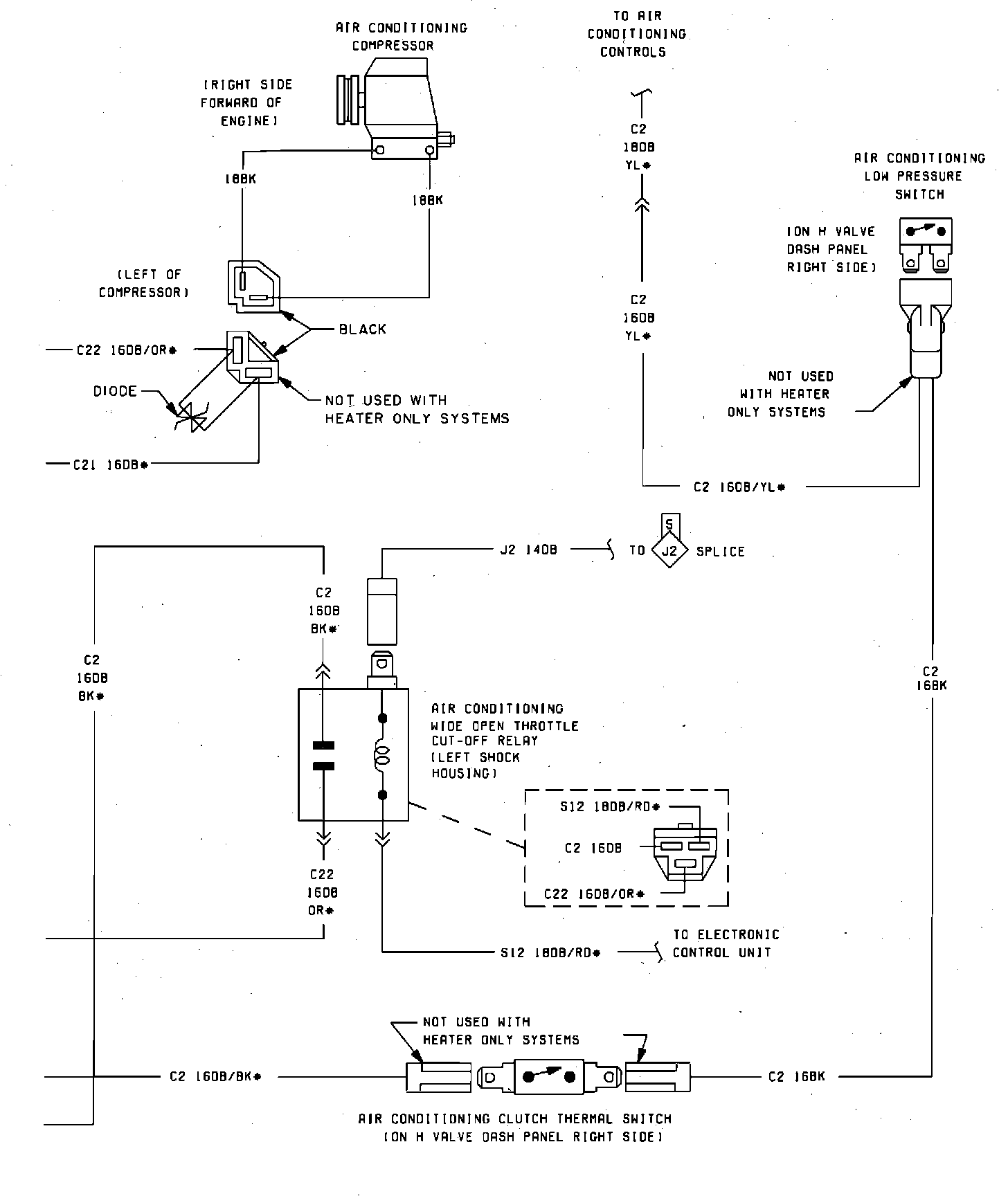

Air Conditioning and Heater System (Part 1 Of 2):
Air Conditioning and Heater System (Part 2 Of 2):
