Cooling System
>>
W/Non-Feedback Carburetor
W/Non-Feedback Carburetor

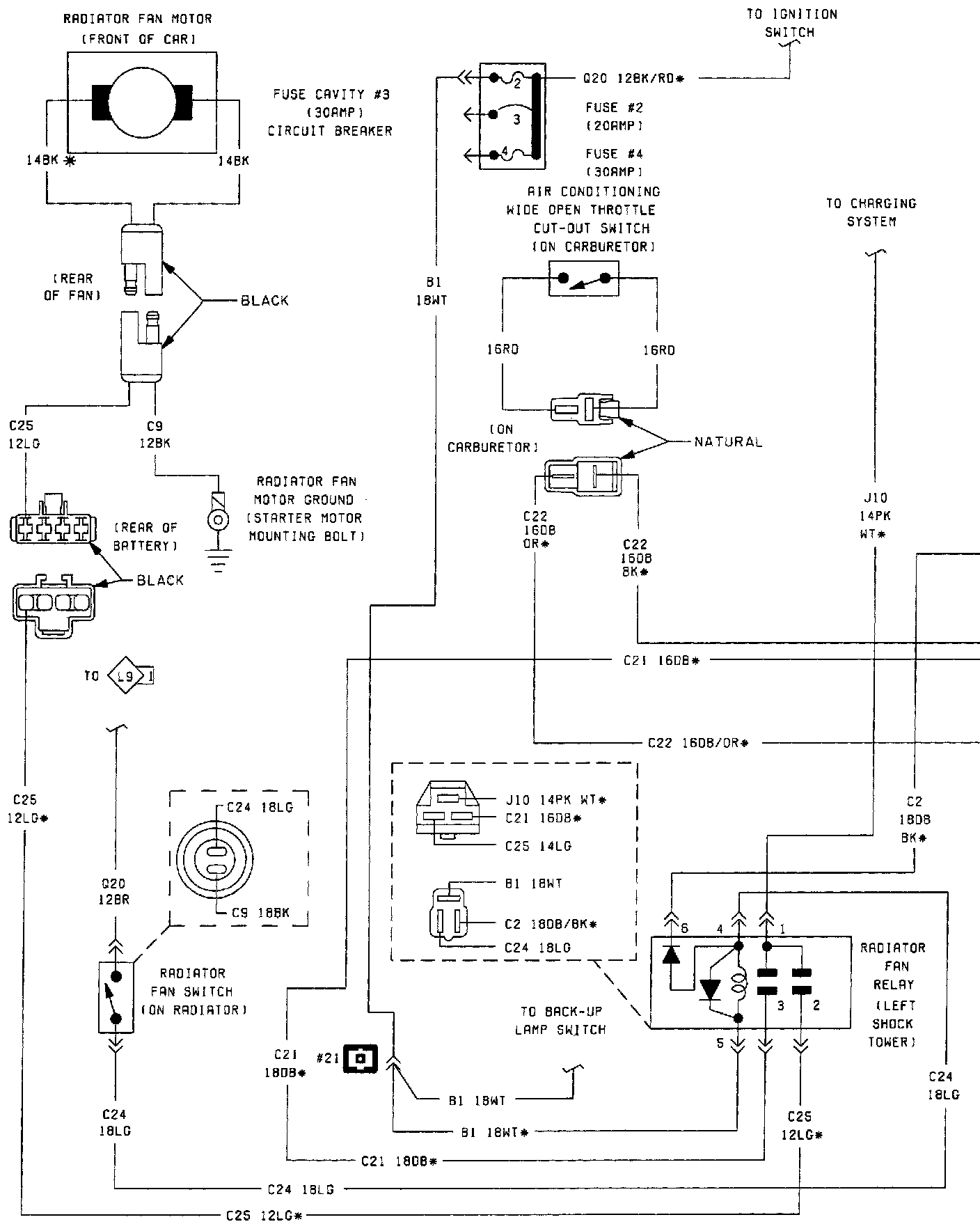

Air Conditioning & Heater Circuit (Part 1 of 2):

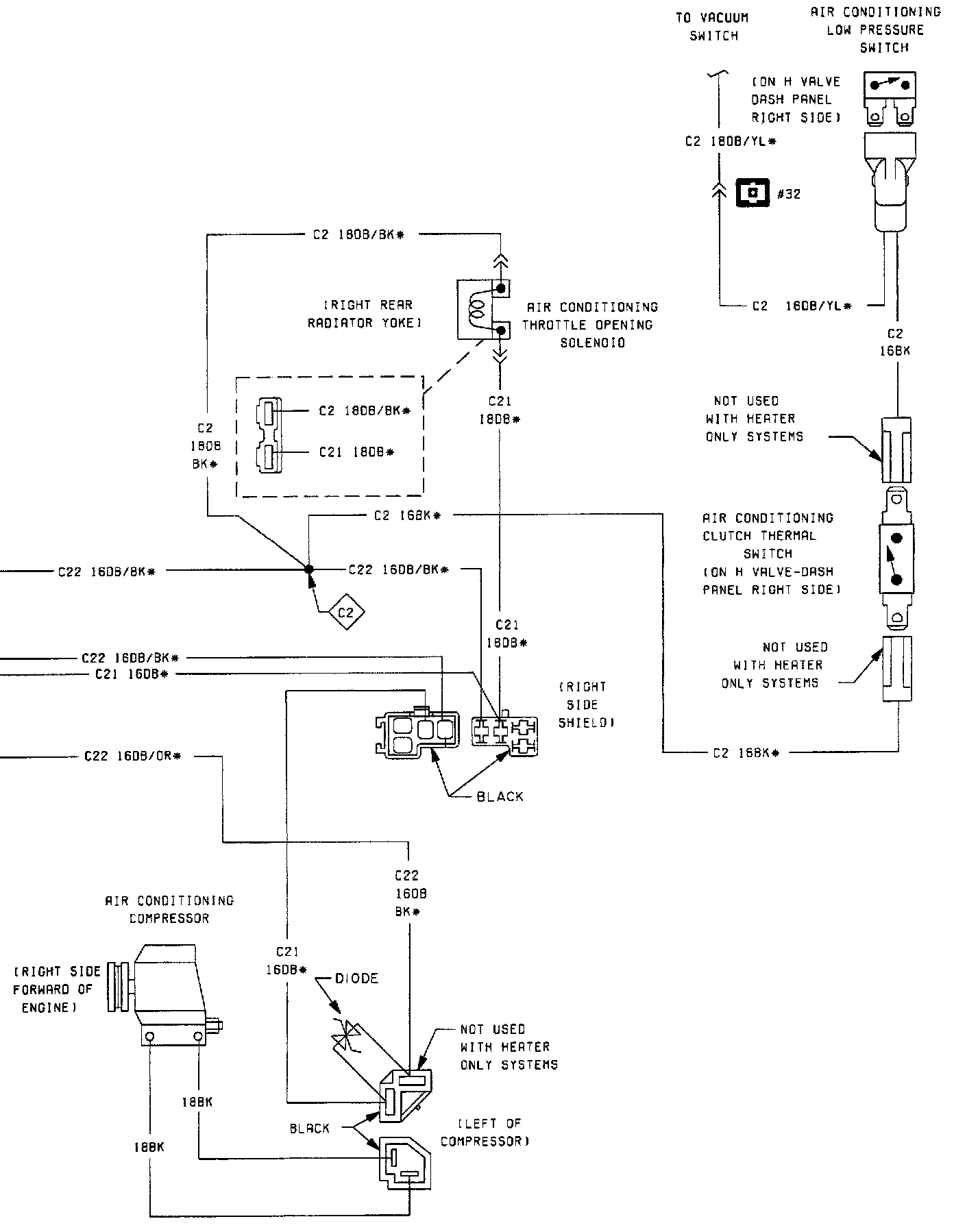

Air Conditioning & Heater Circuit (Part 2 of 2):
