Headlamp Dimmer Switch

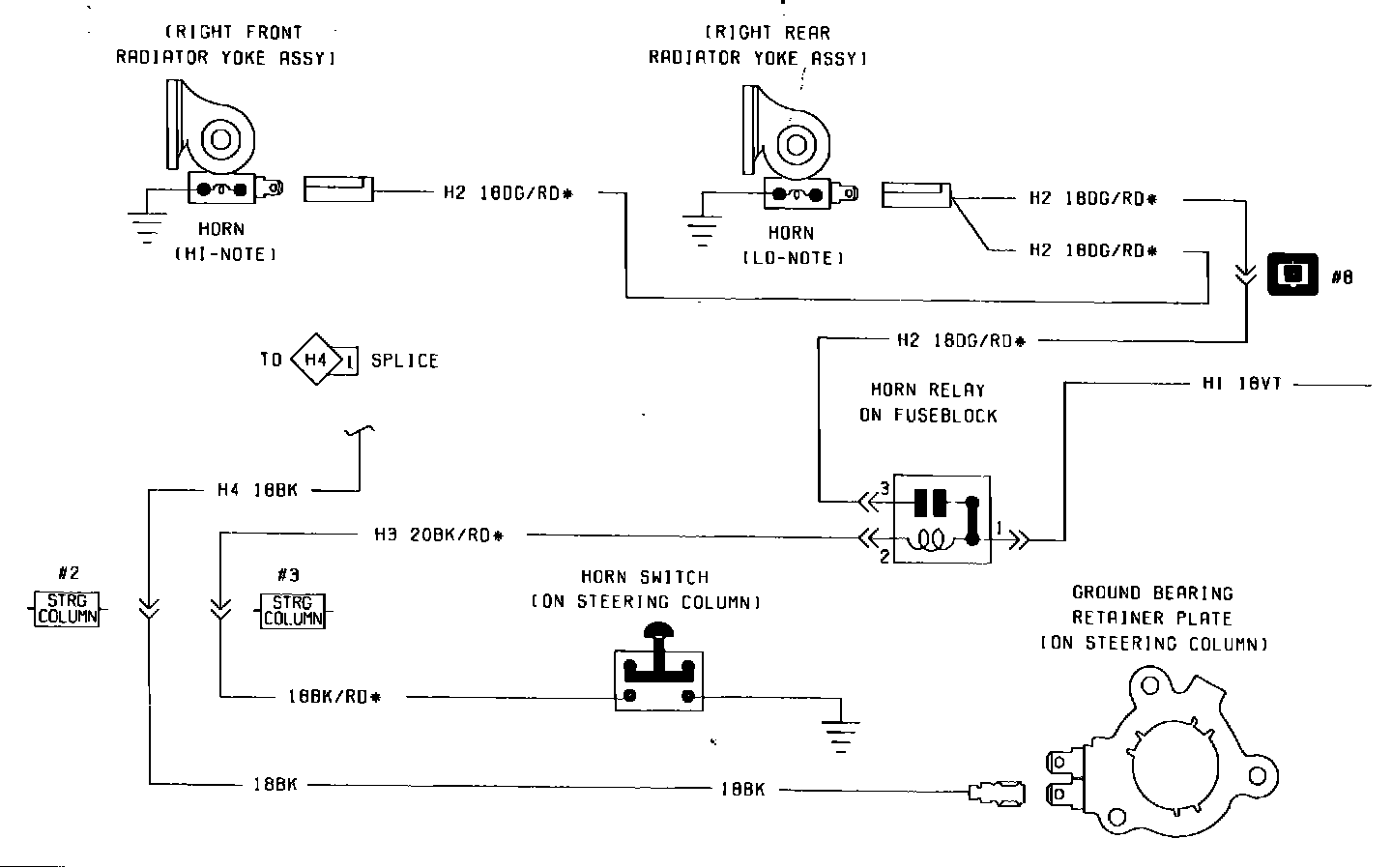

Fig. 27 Headlamp Switch & Horn Wiring Circuit (Part 1 of 2). 1985:

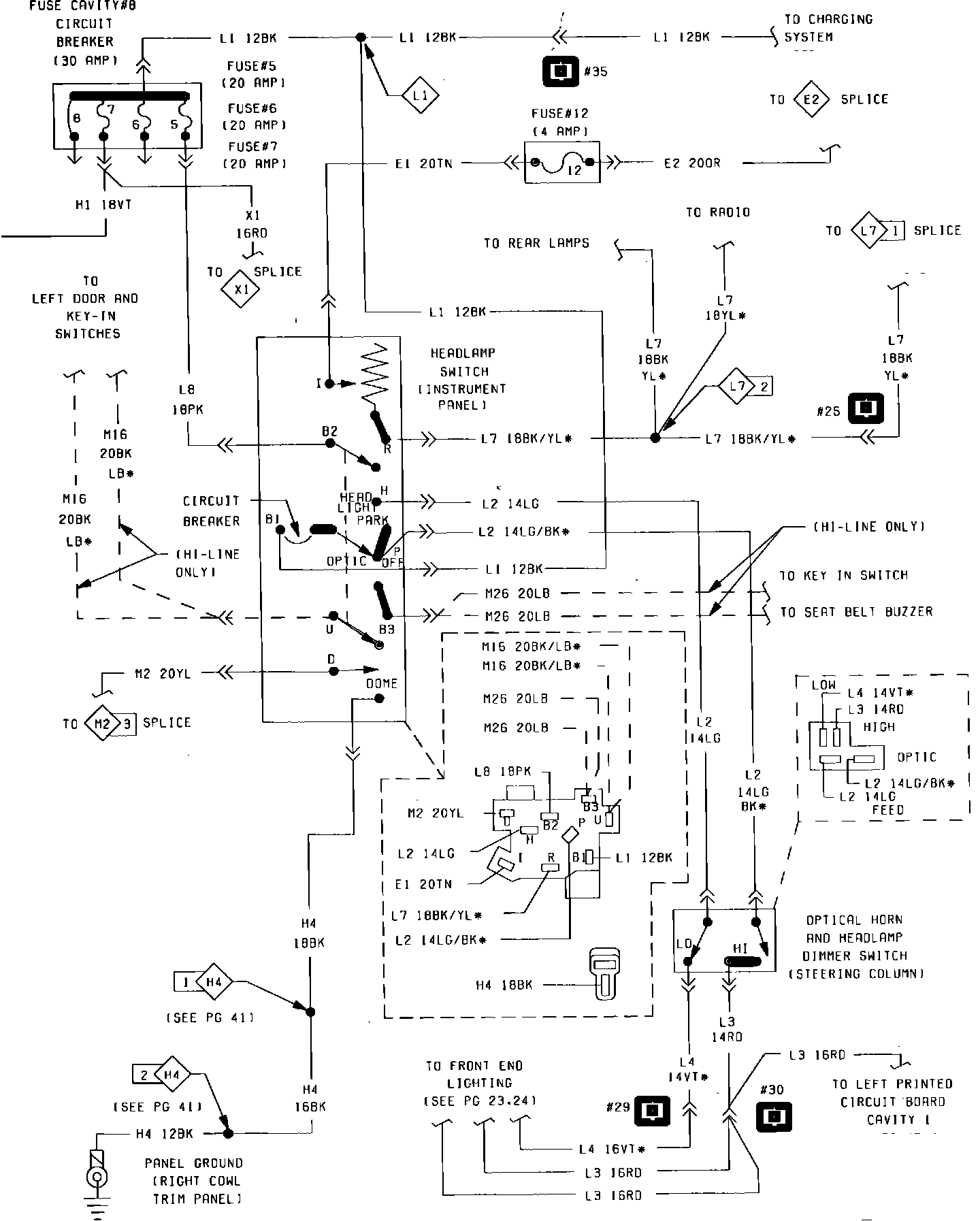

Fig. 27 Headlamp Switch & Horn Wiring Circuit (Part 2 of 2). 1985:
