Map Light

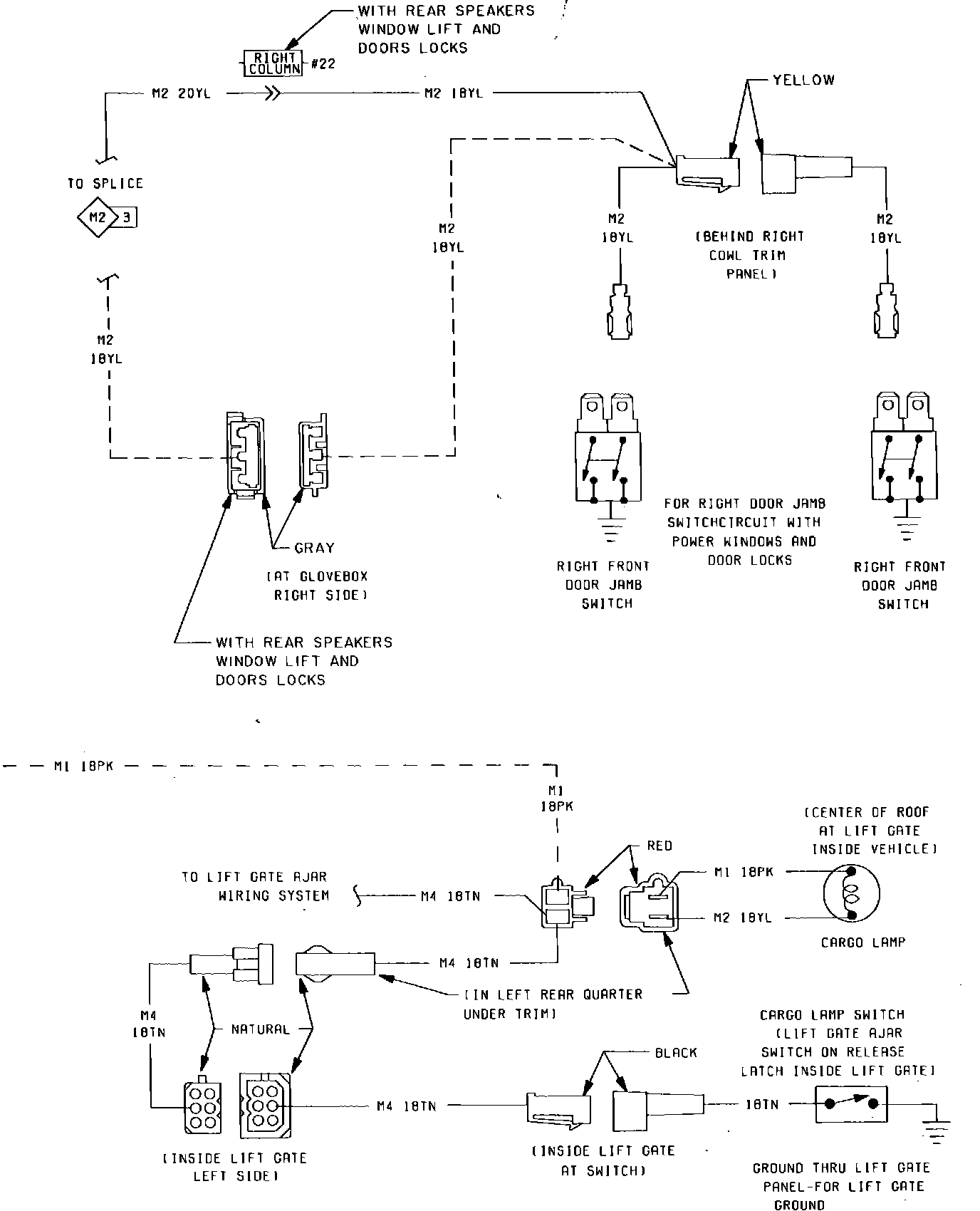

Fig. 19 Courtesy & Dome Lamps & Seatbelt Warning System Wiring Circuit (Part 4 of 4). 1985:

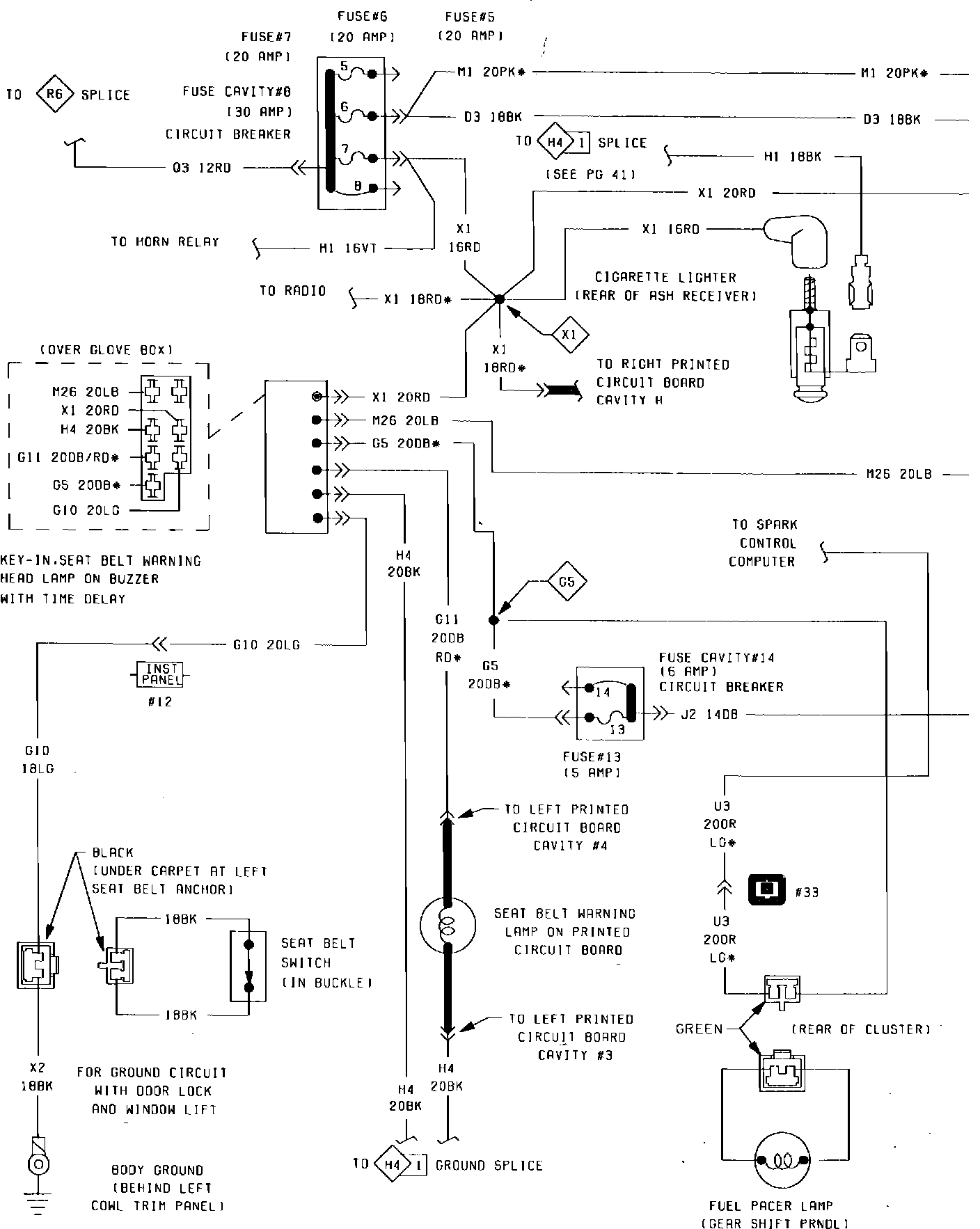

Fig. 19 Courtesy & Dome Lamps & Seatbelt Warning System Wiring Circuit (Part 3 of 4). 1985:

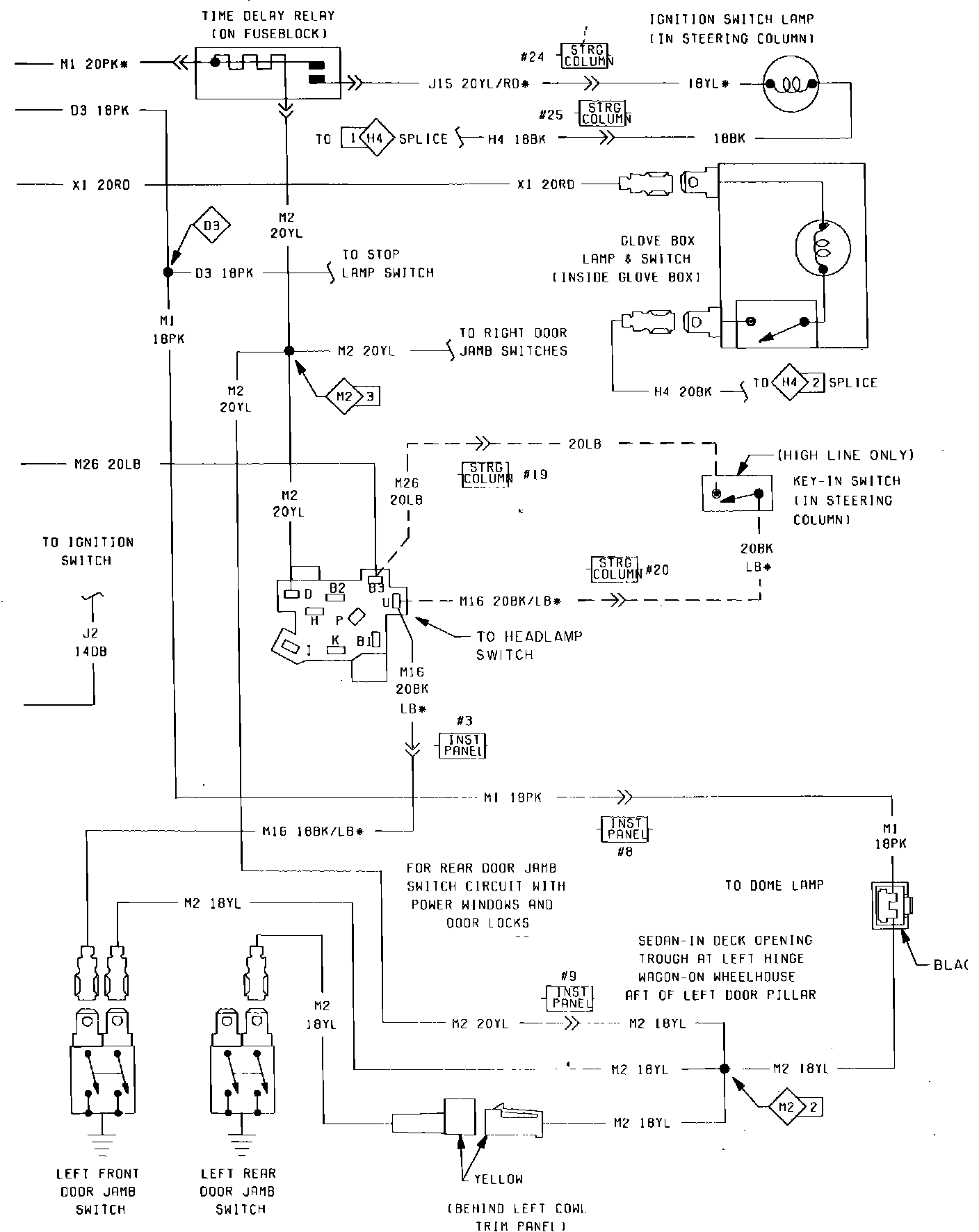

Fig. 19 Courtesy & Dome Lamps & Seatbelt Warning System Wiring Circuit (Part 2 of 4). 1985:



Fig. 19 Courtesy & Dome Lamps & Seatbelt Warning System Wiring Circuit (Part 1 of 4). 1985:
