W/O Feedback CARB

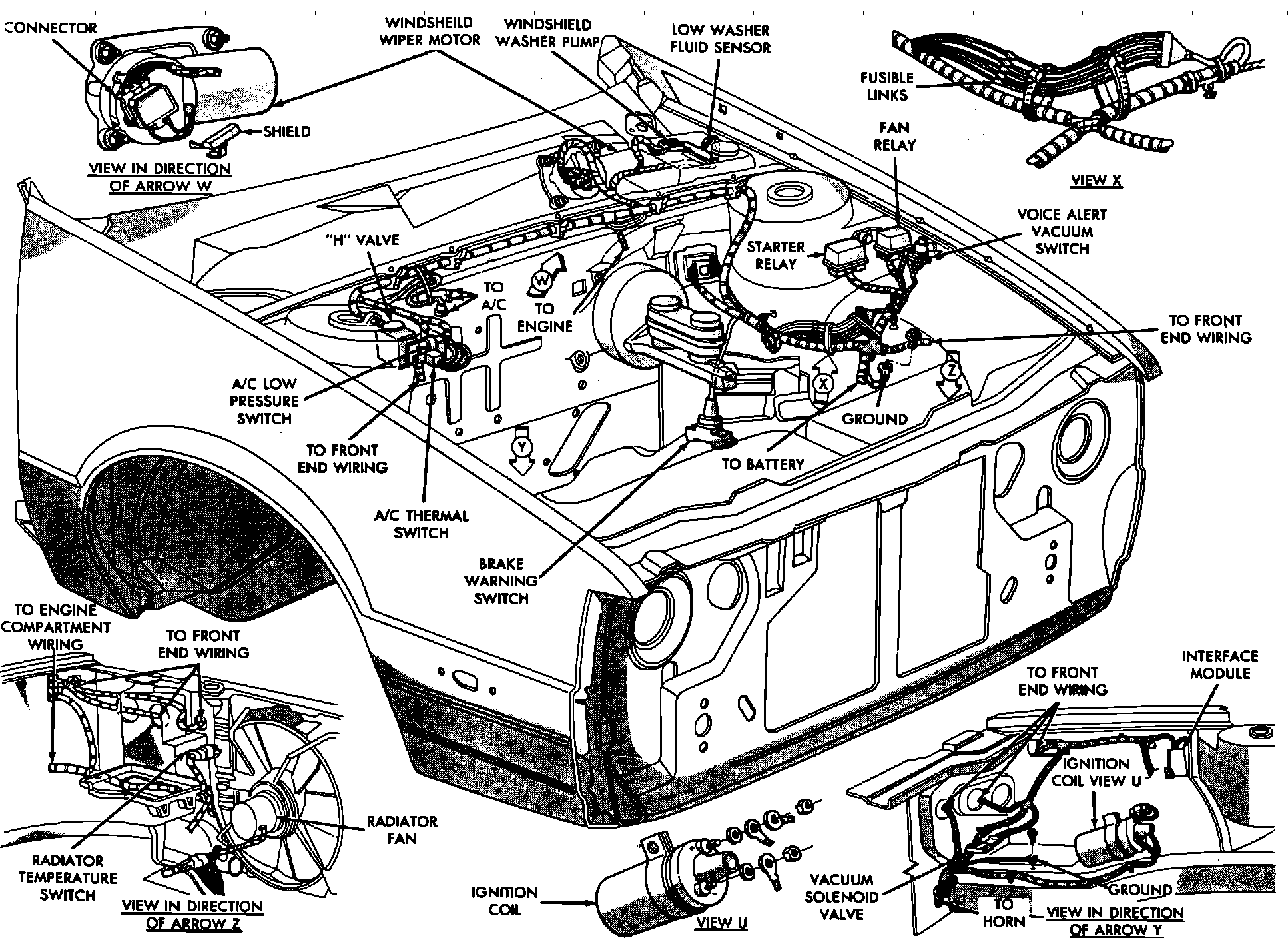

Engine Compartment Electrical Components:




Right Hand Front Corner of Engine Compartment
