Vacuum and Vapor Hose Diagrams

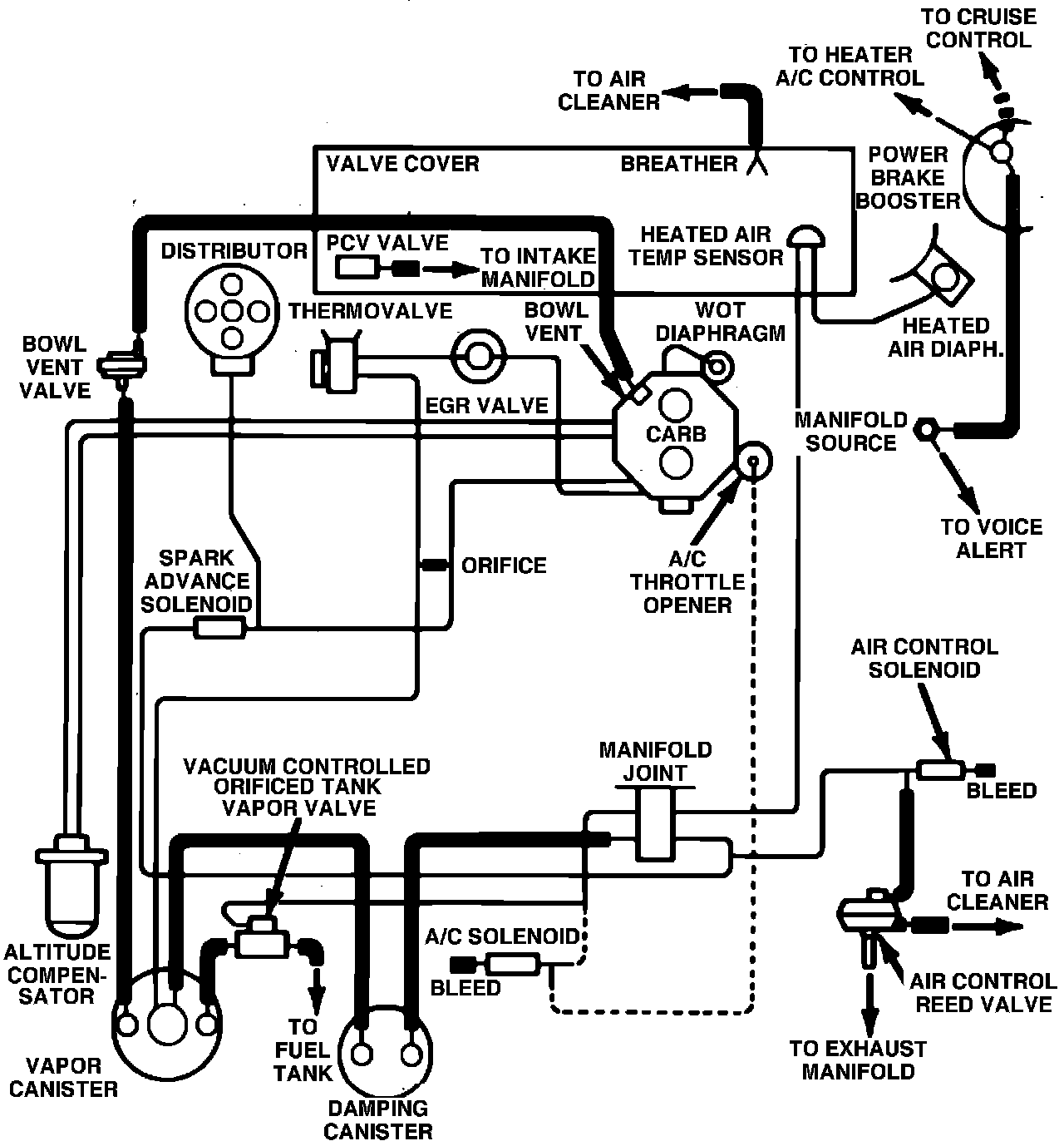

Fig. 6 Vacuum Hose Routing. 1985 Caravelle, 600, New Yorker, Reliant, Aries, LeBaron, with 4-156/2.6L, 2 Bbl.:
