Emission Control Systems
>>
California
California

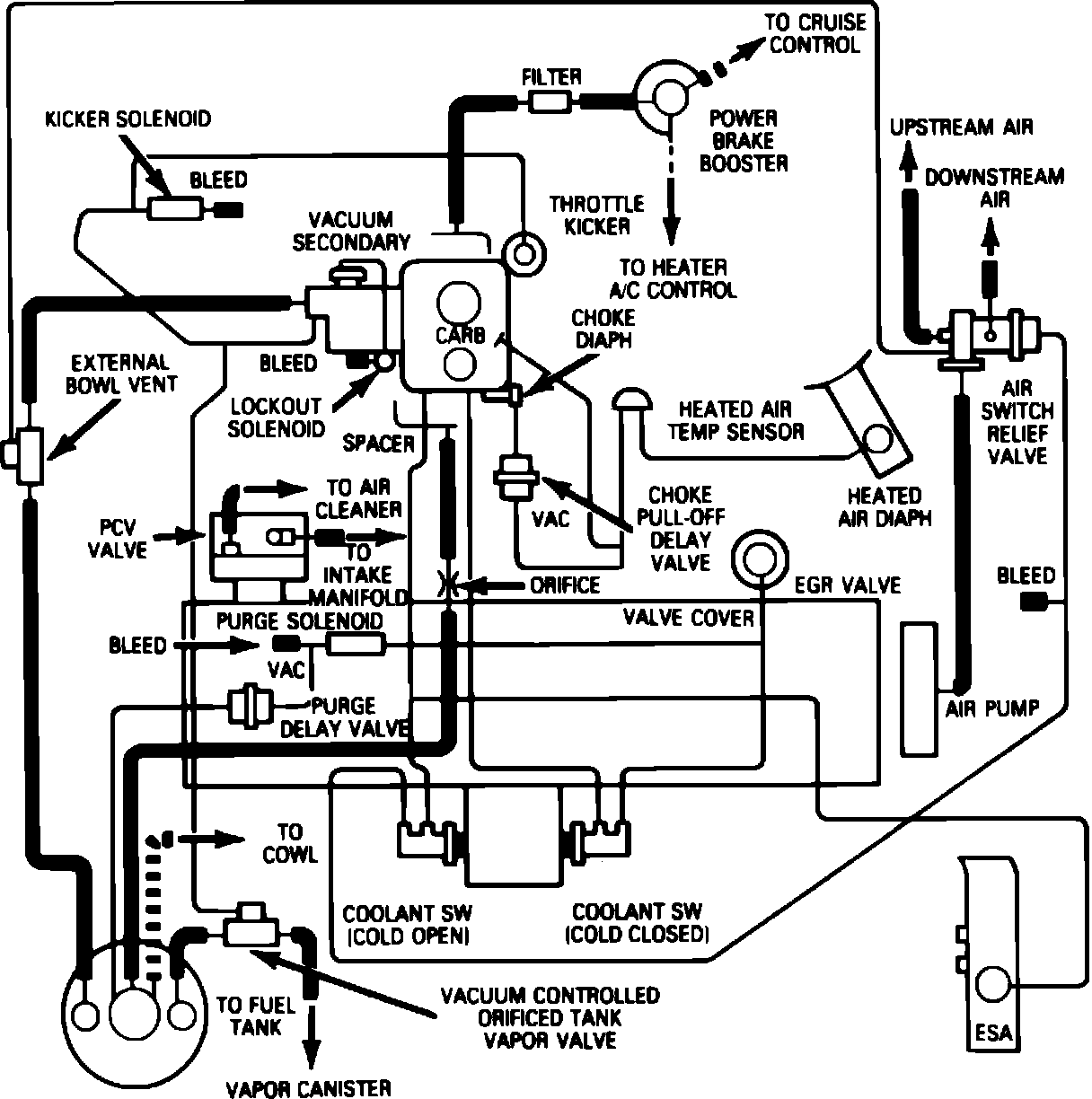

Fig. 3 Vacuum Hose Routing. 1985 Aries, Reliant, 600, Omni, LeBaron, Turismo, Charger, Calif. with 4-135/2.2L, 2 Bbl.:
