Home >> Plymouth >> 1985 >> Turismo L4-97 1.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp

Courtesy Lamp

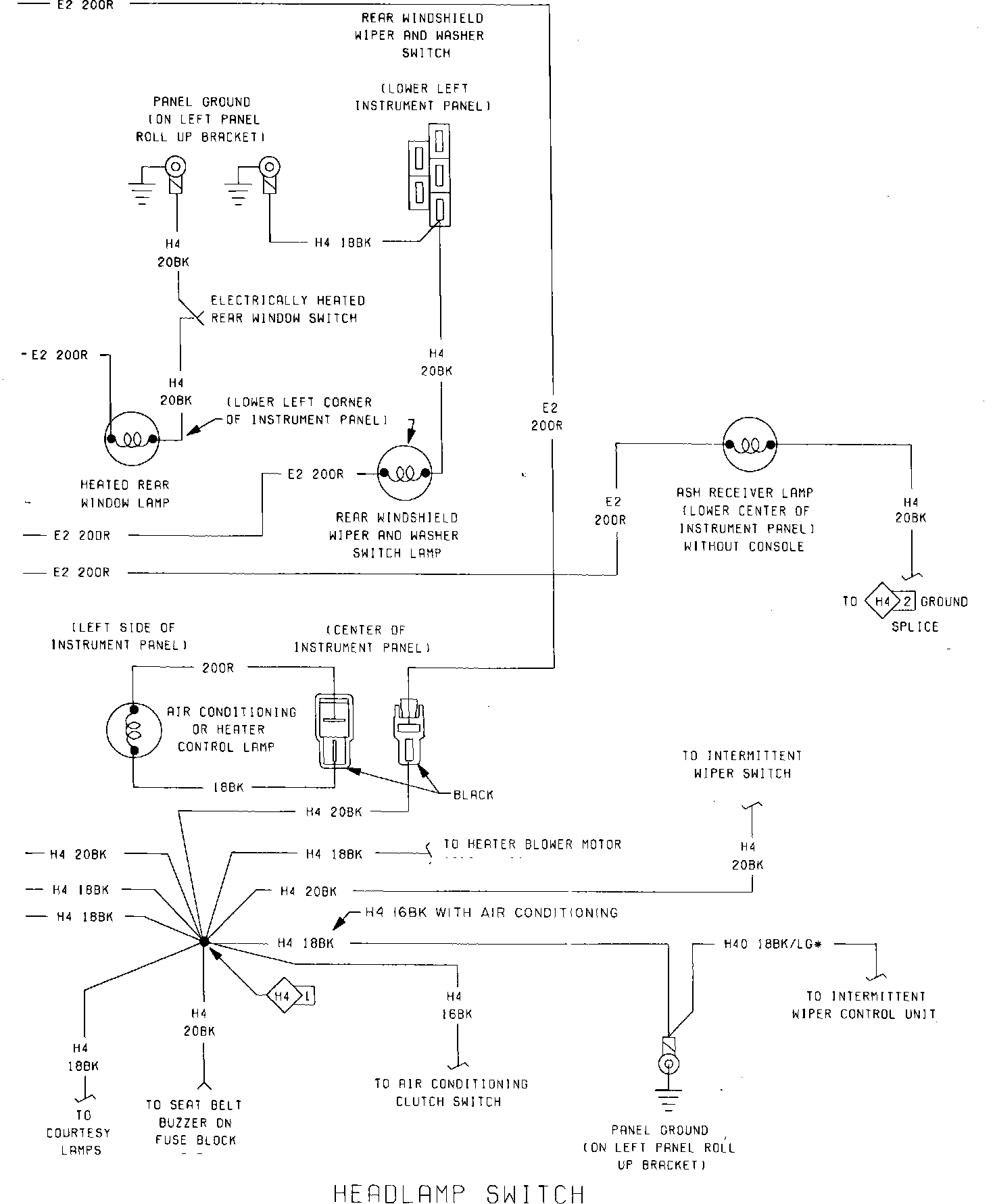

Fig. 24 Headlamp Switch Controlled Interior Lighting Wiring Circuit. 1985 -- Part 1:

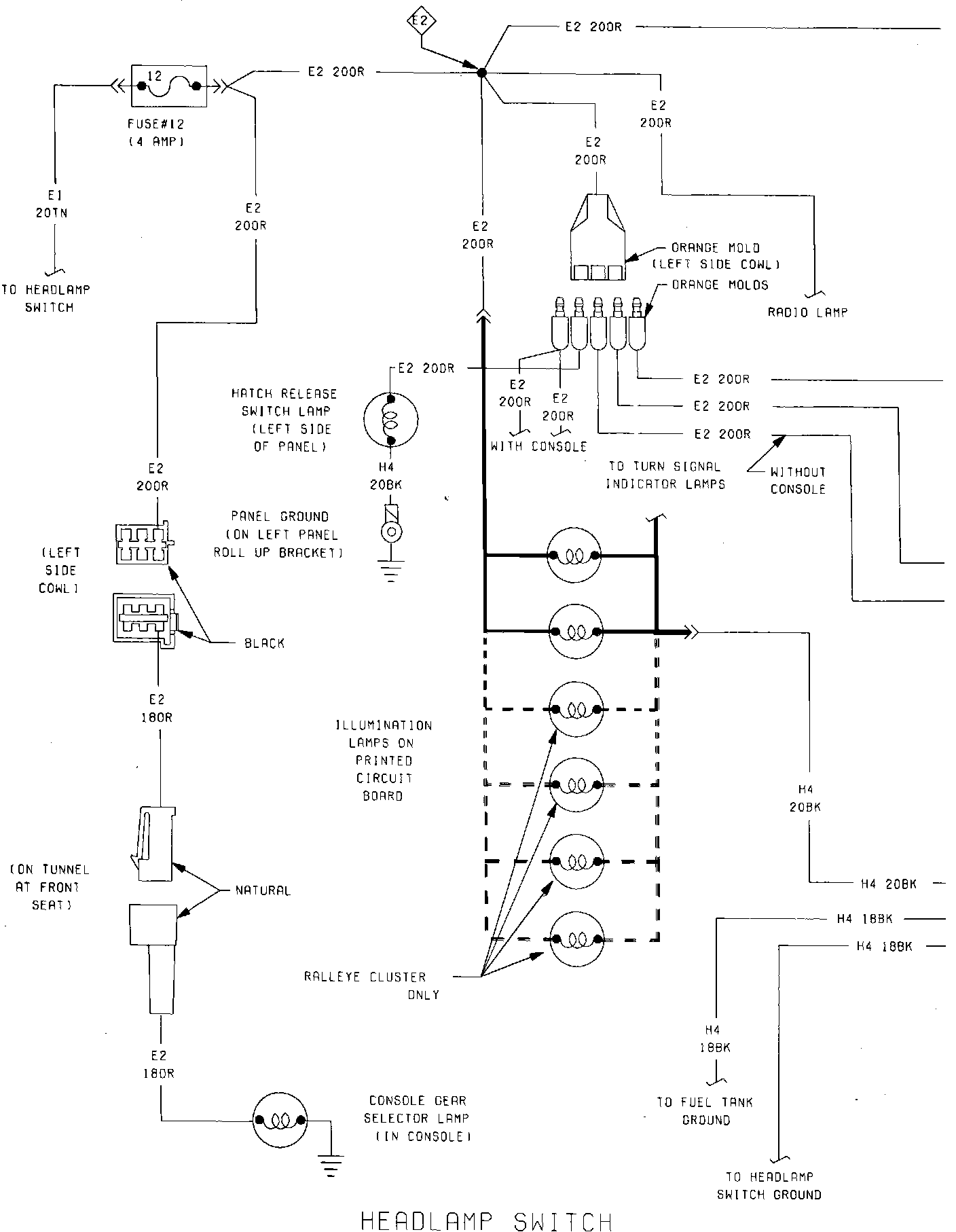

Fig. 24 Headlamp Switch Controlled Interior Lighting Wiring Circuit. 1985 -- Part 2:
