Turn Signal Switch

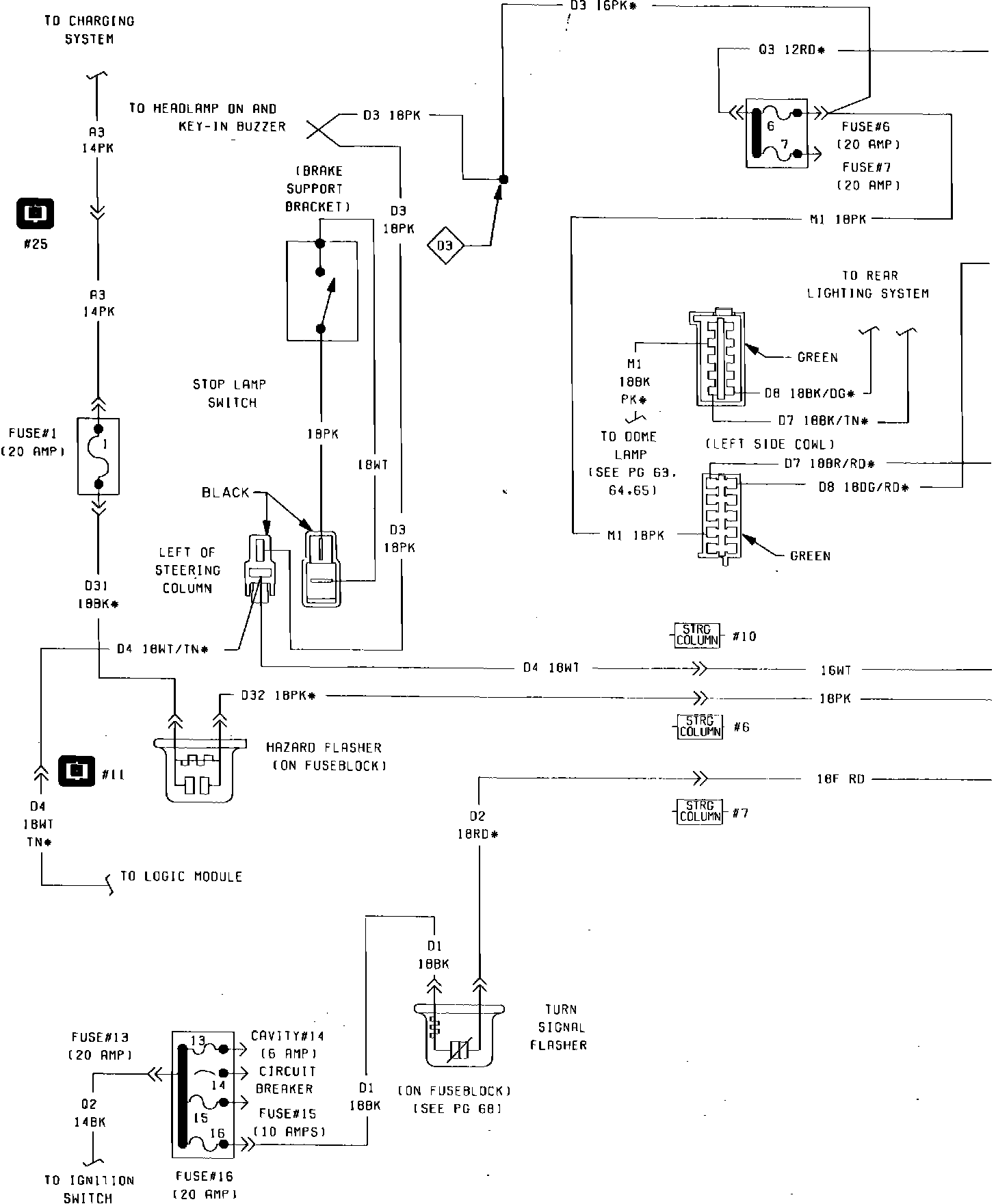

Fig. 39 Turn Signal Switch Wiring Circuit. 1985 -- Part 1:

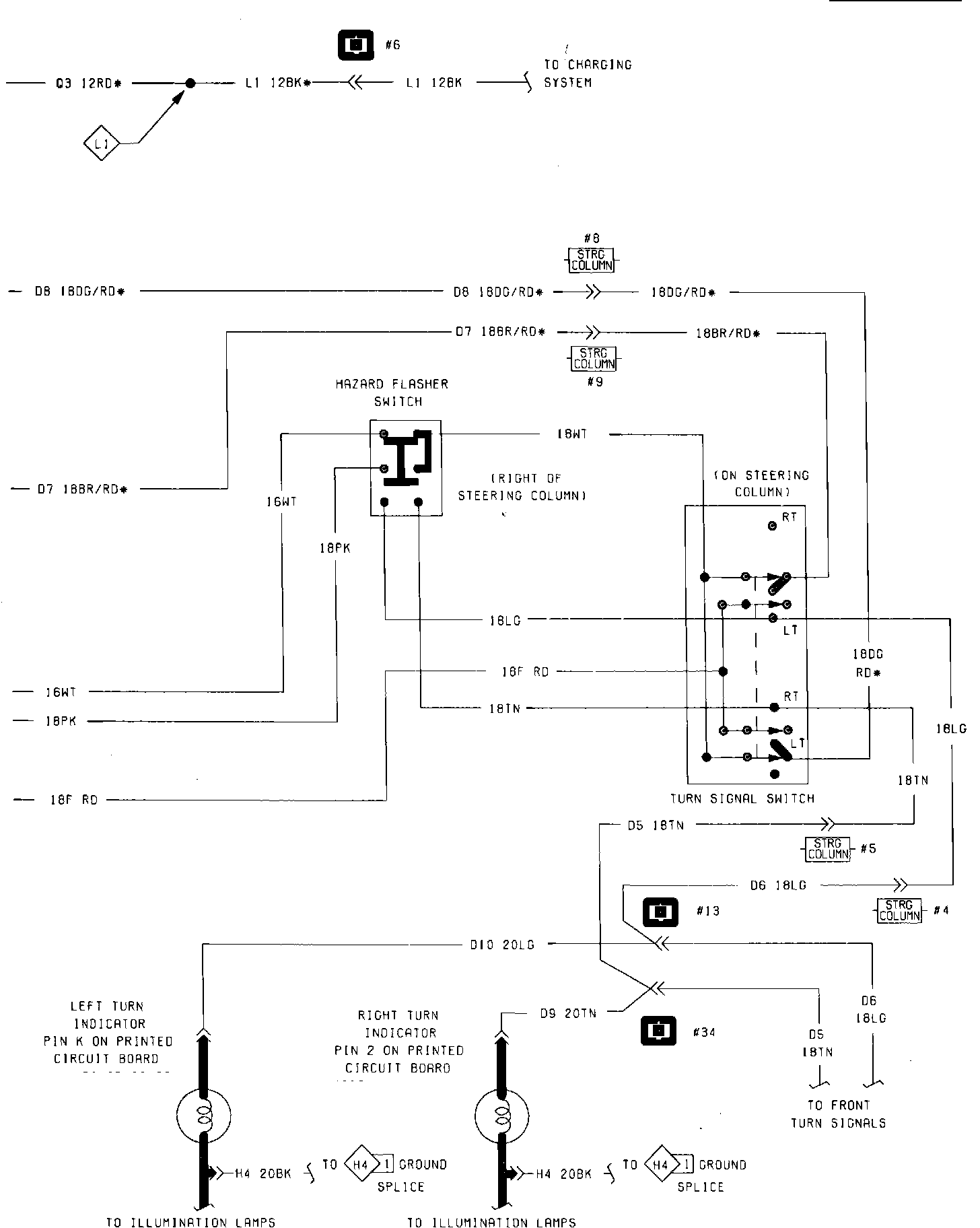

Fig. 39 Turn Signal Switch Wiring Circuit. 1985 -- Part 2:
