System Diagram

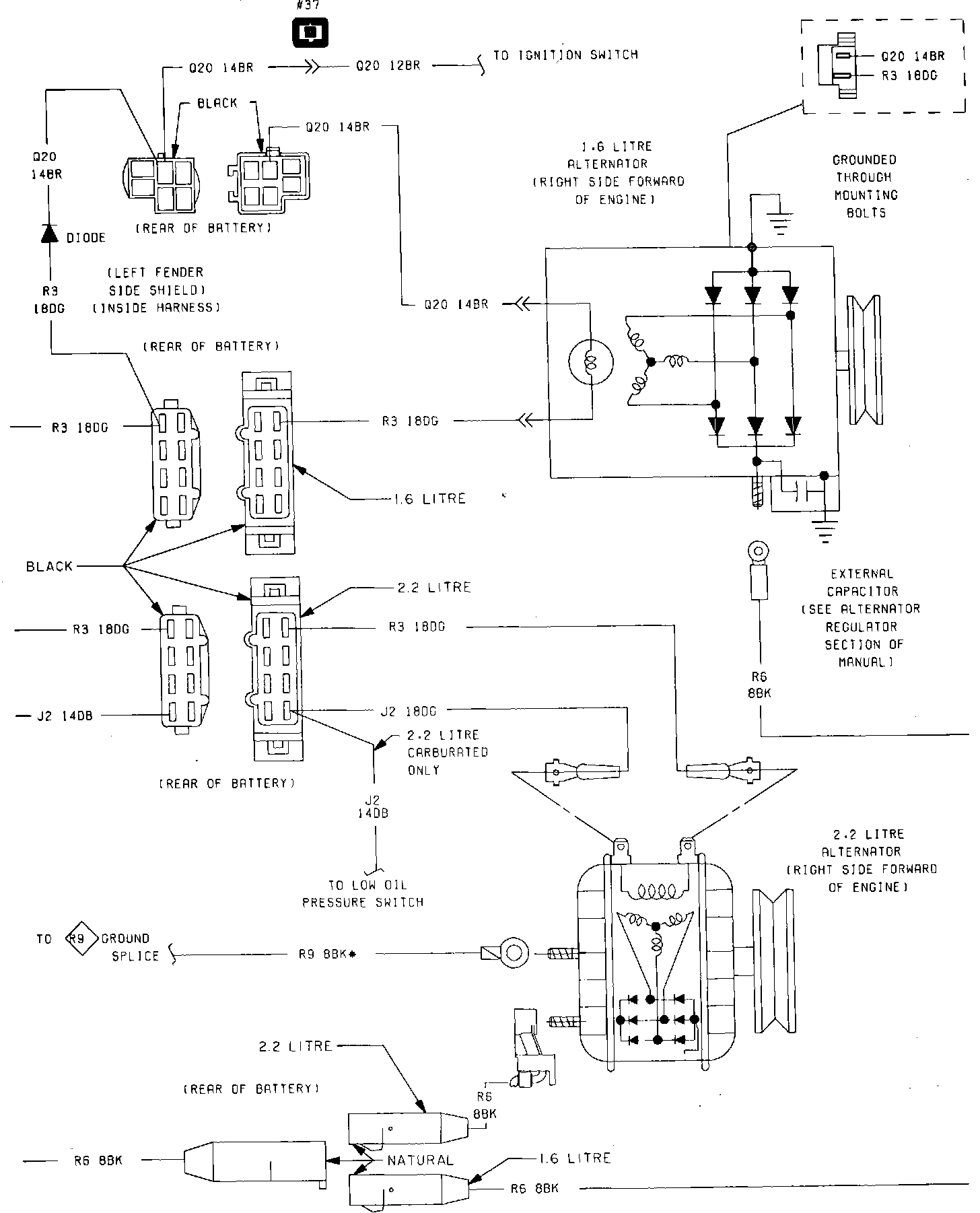

Fig. 15 Charging System Wiring Circuit. 1985:



Fig. 15 Charging System Wiring Circuit. 1985:

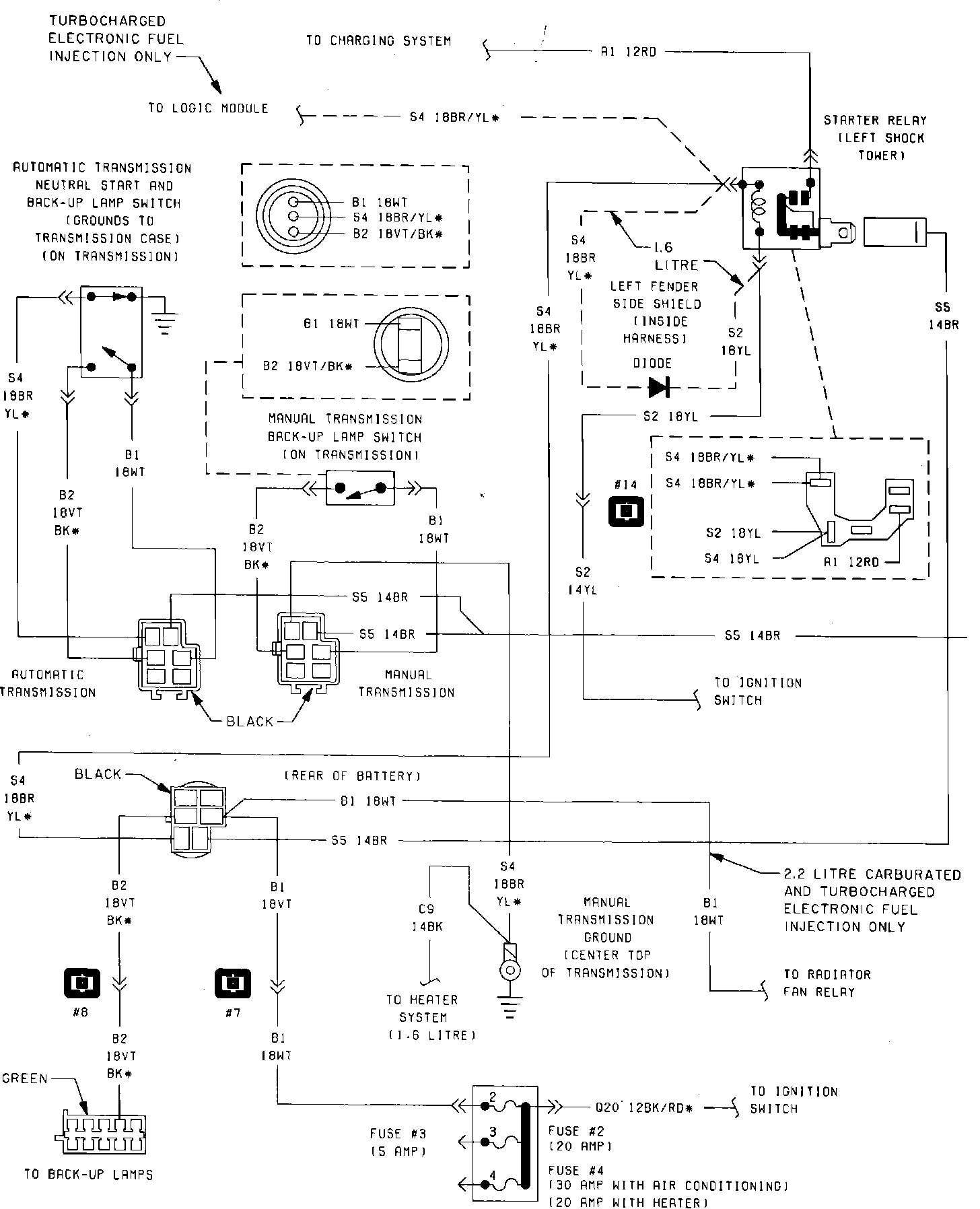

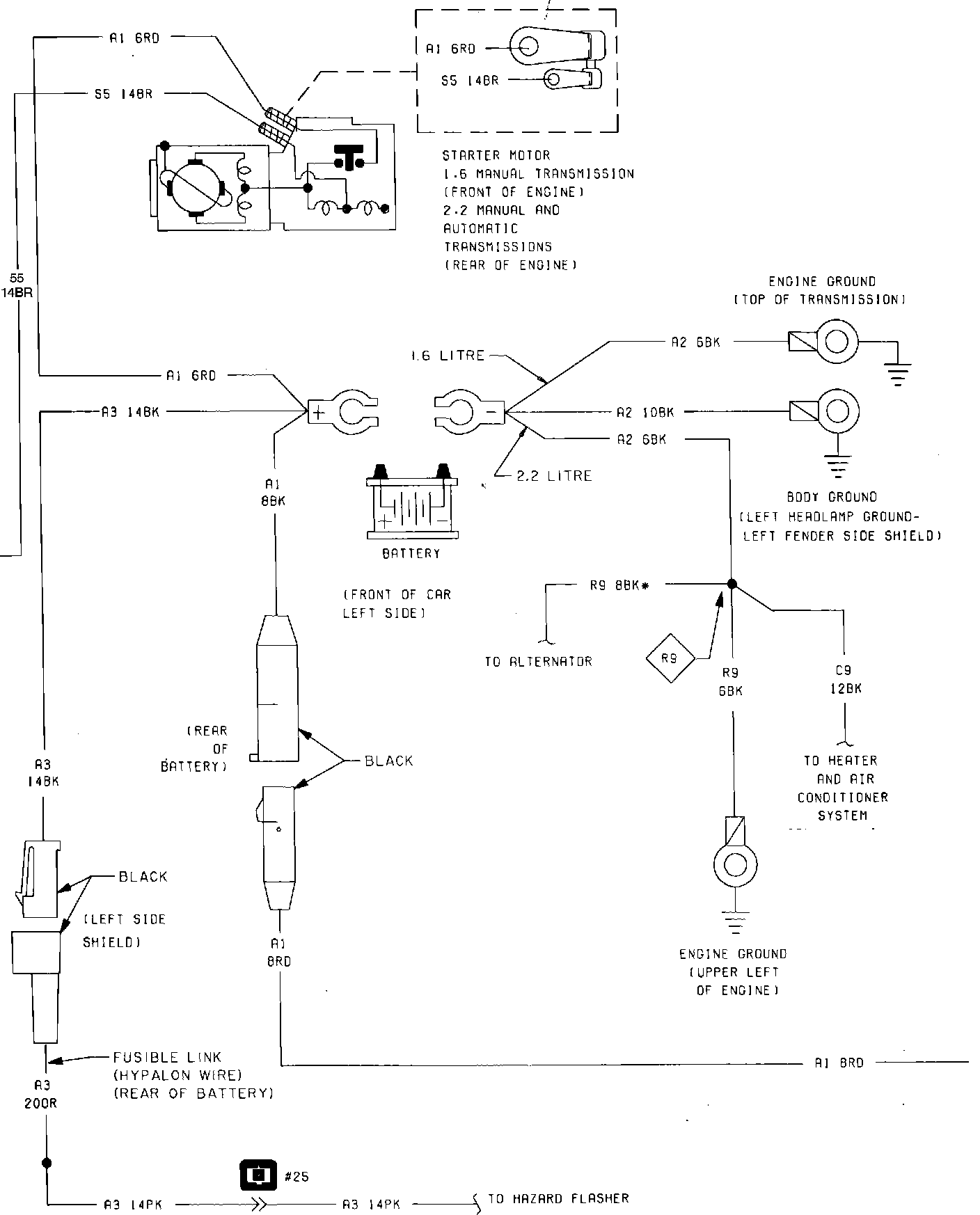

Fig. 40 Starter Wiring Circuit. 1985:



Fig. 40 Starter Wiring Circuit. 1985:
