Home >> Plymouth >> 1986 >> Caravelle L4-153 2.5L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Speedometer Cable >> Testing and Inspection

Speedometer Cable: Testing and Inspection

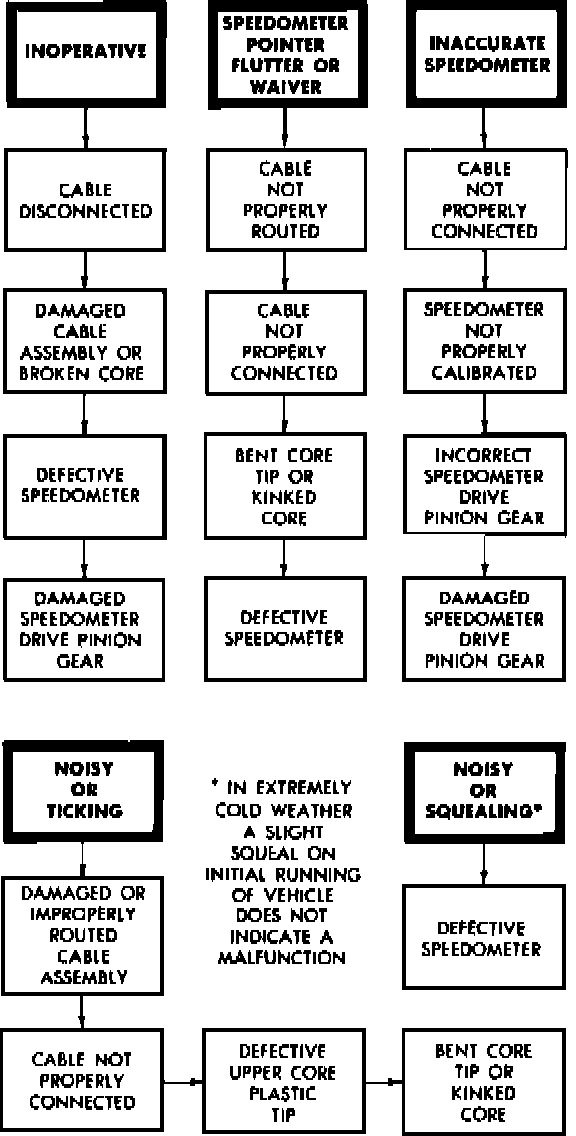

Fig. 1 Speedometer & cable diagnosis.:
