Plymouth
>>
1986
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Fuse and Fusible Links
>>
Engine Compartment Fuse/Fusible Link & Block
Engine Compartment Fuse/Fusible Link & Block

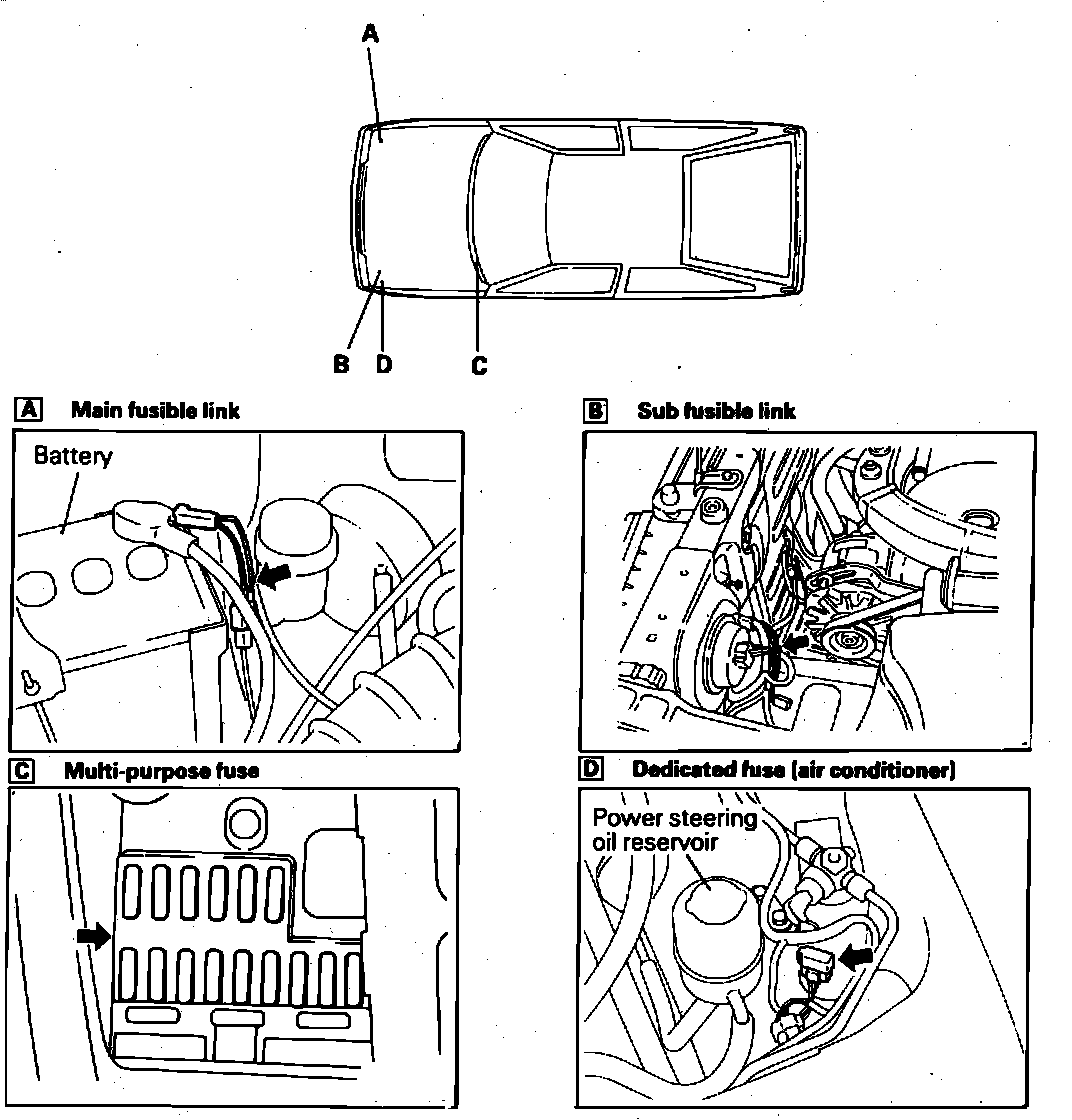

Fusible Link Locations.:
Engine Compartment
Applicable to: 1985-86
