California

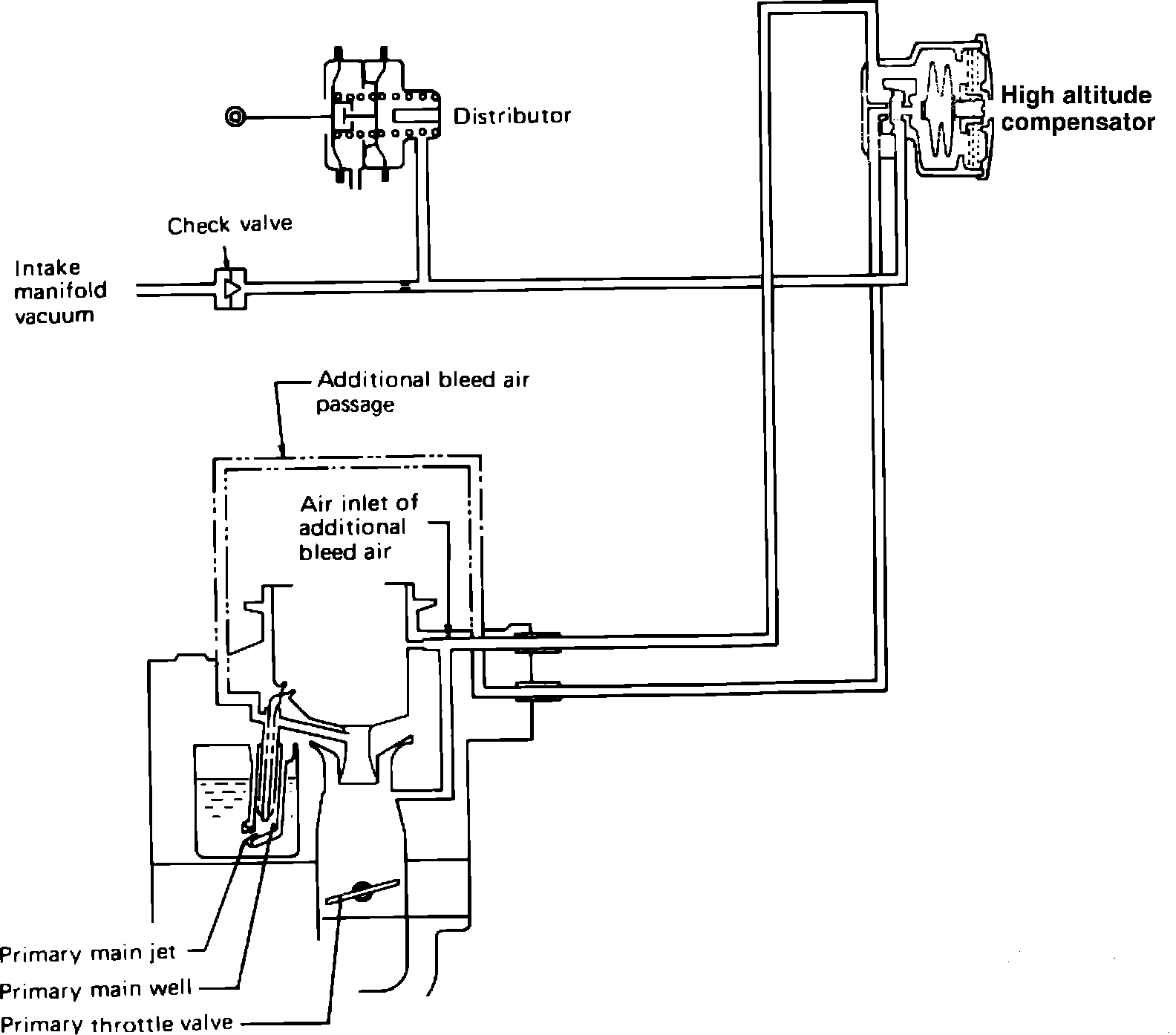

High altitude compensation system (Calif.). 1985-86 2000cc engine, Colt Vista, Calif. 1986 1500cc engine, Calif.:
