Home >> Plymouth >> 1986 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Altitude Compensator >> Federal

Federal

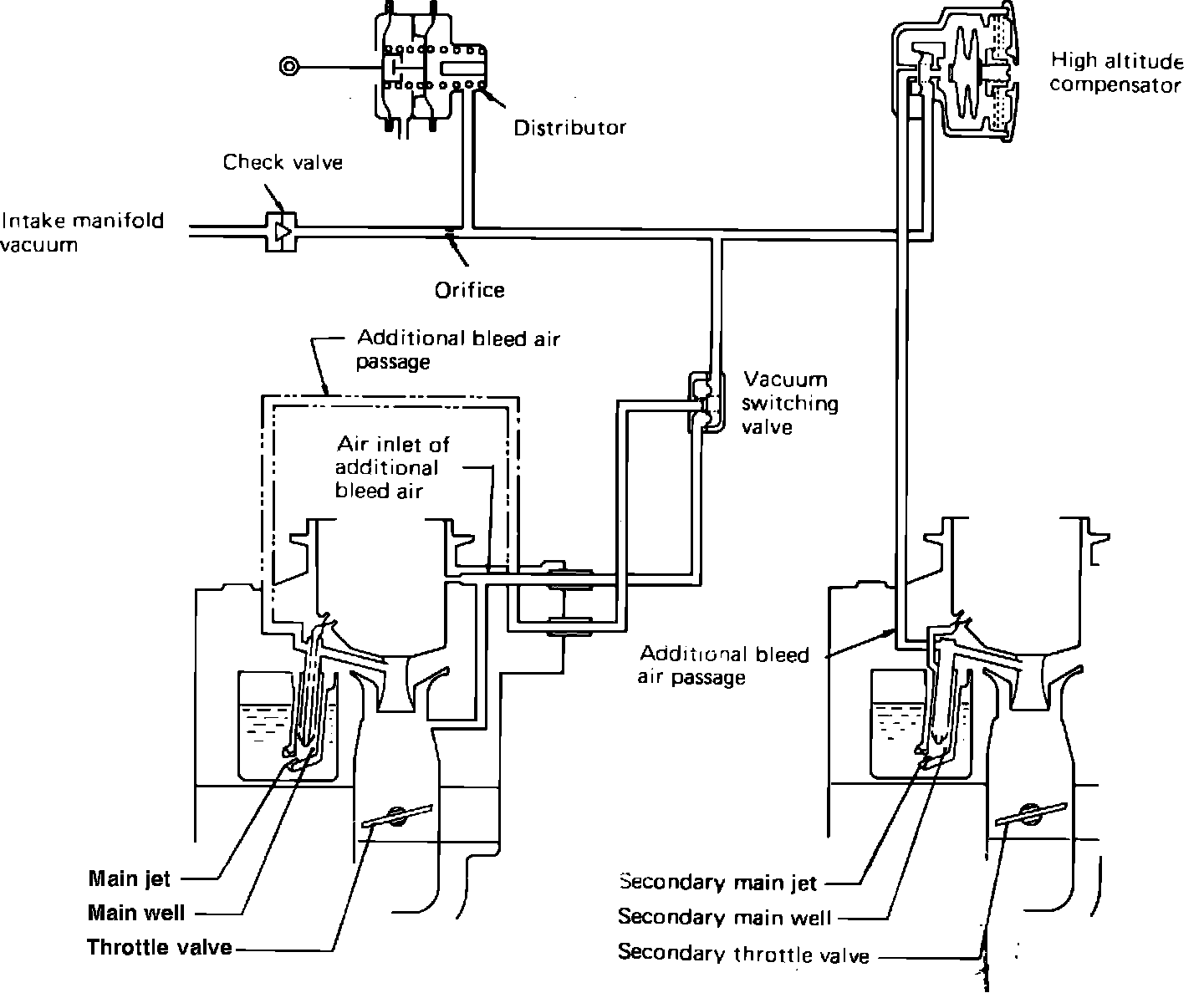

High altitude compensation system (Federal). 1985-86 2000cc engine, Colt Vista, exc. Calif. 1986 1500cc engine exc. Calif.:
