Grand Fury/Salon V8-318 5.2L VIN P 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
Connectors

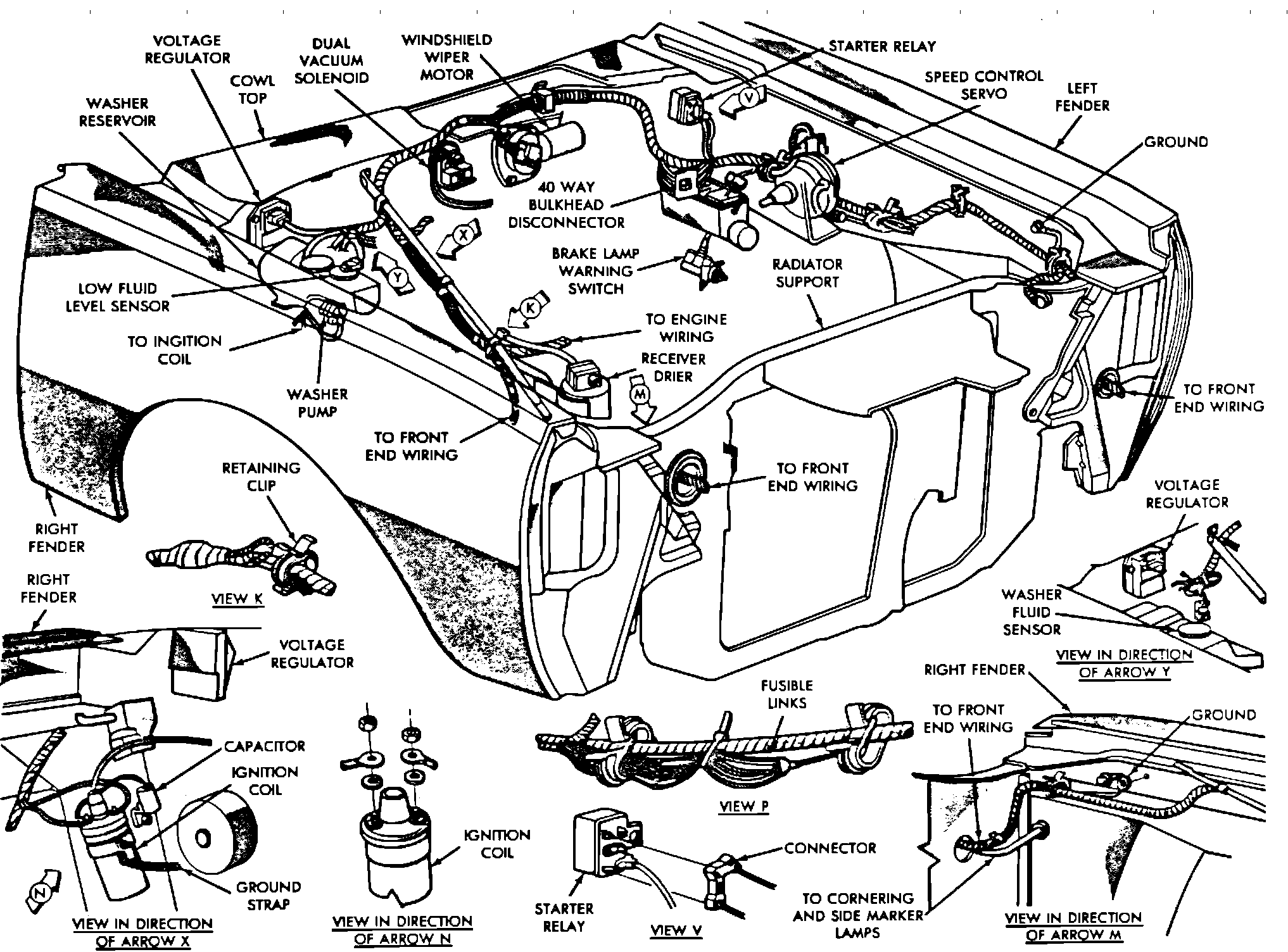

Front end & engine compartment components.:
Near Brake Master Cylinder
Applicable to: 1986-87 Diplomat, Fifth Avenue & Gran Fury
