Home >> Plymouth >> 1986 >> Grand Fury/Salon V8-318 5.2L VIN R >> Repair and Diagnosis >> Diagrams >> Splices >> Body, Cowl & Steering Column Splices >> Cowl & Door Panel

Cowl & Door Panel

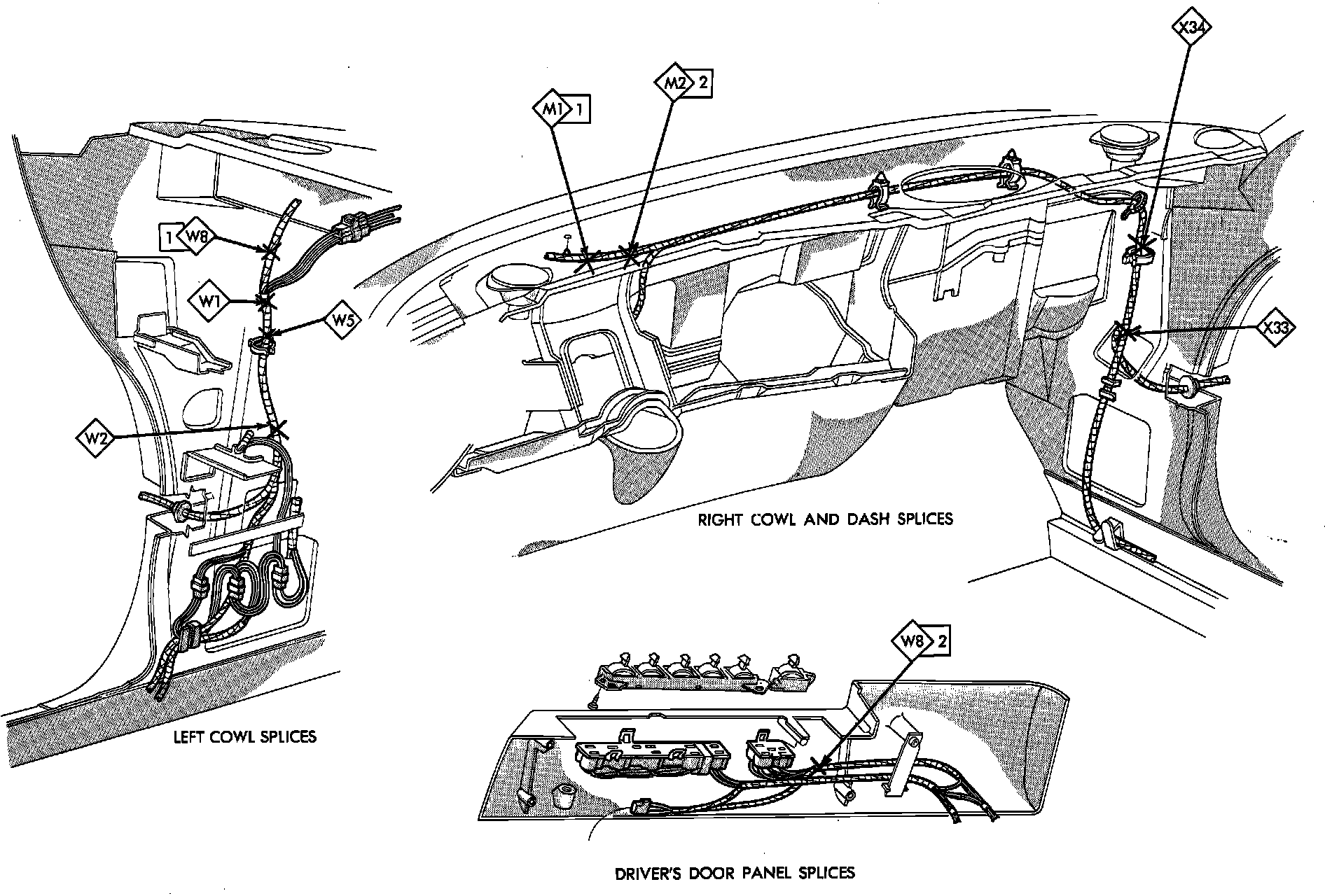

Fig. 44 Splice Locations. Cowl & Door Panel:
