Oil Temperature Sensor/Switch, Engine

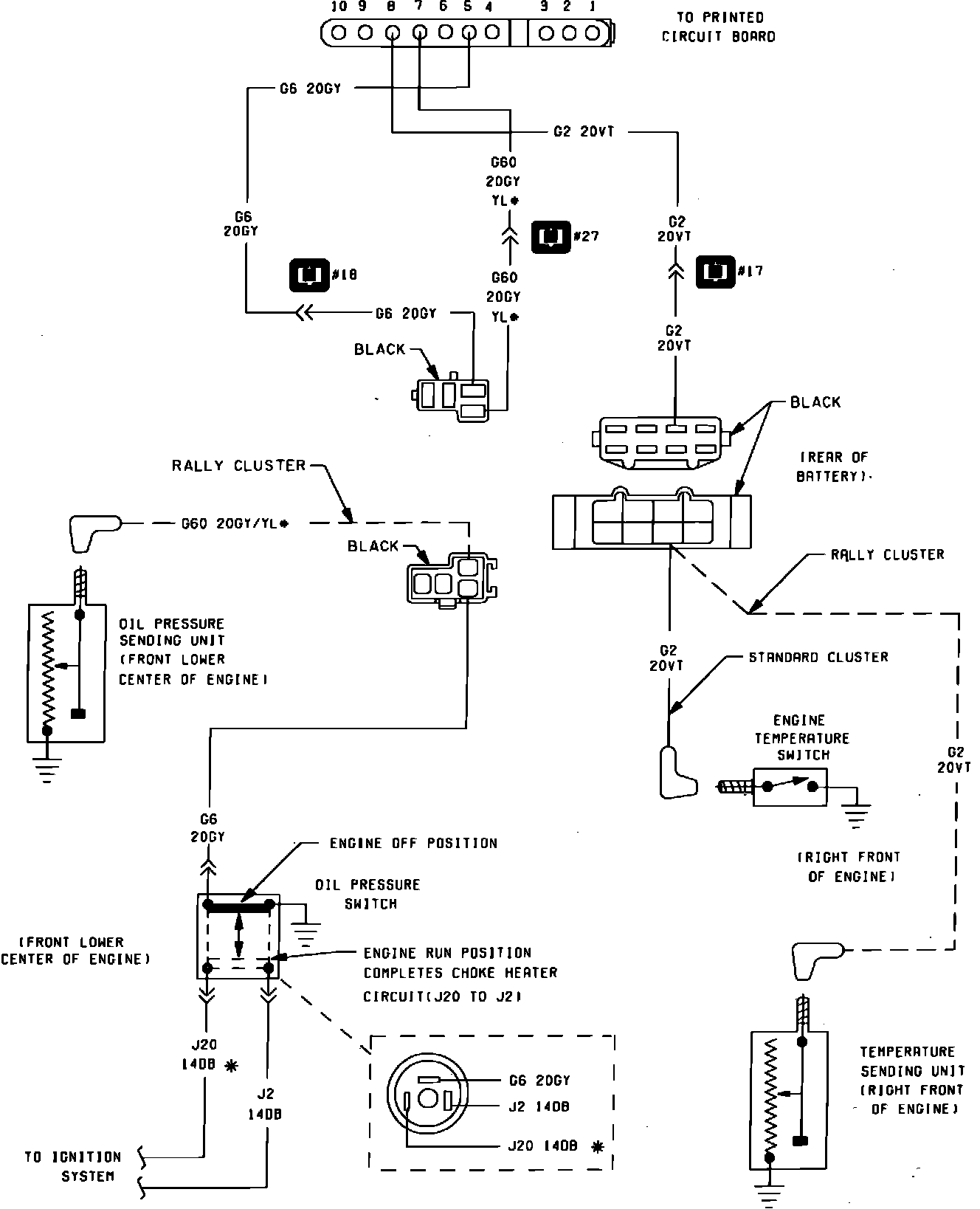

Fig. 32 Oil Pressure & Temperature Warning System Wiring Circuit. Models W/2.2L Engine:
