Refrigerant System Diagnosis Chart
Refrigerant System Diagnosis Chart

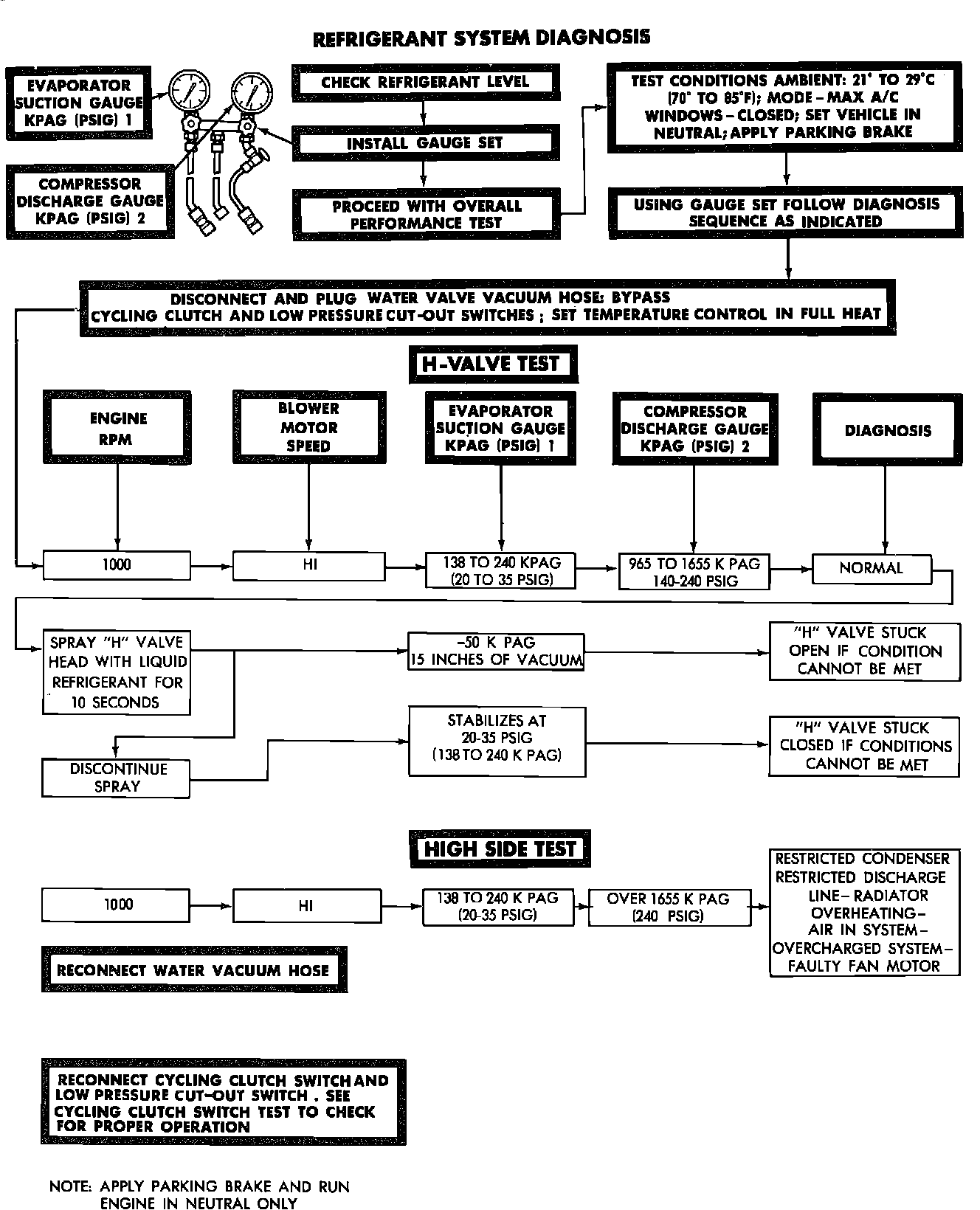

Refrigerant Diagnosis Chart. Horizon & Omni:
