Dome Lamp

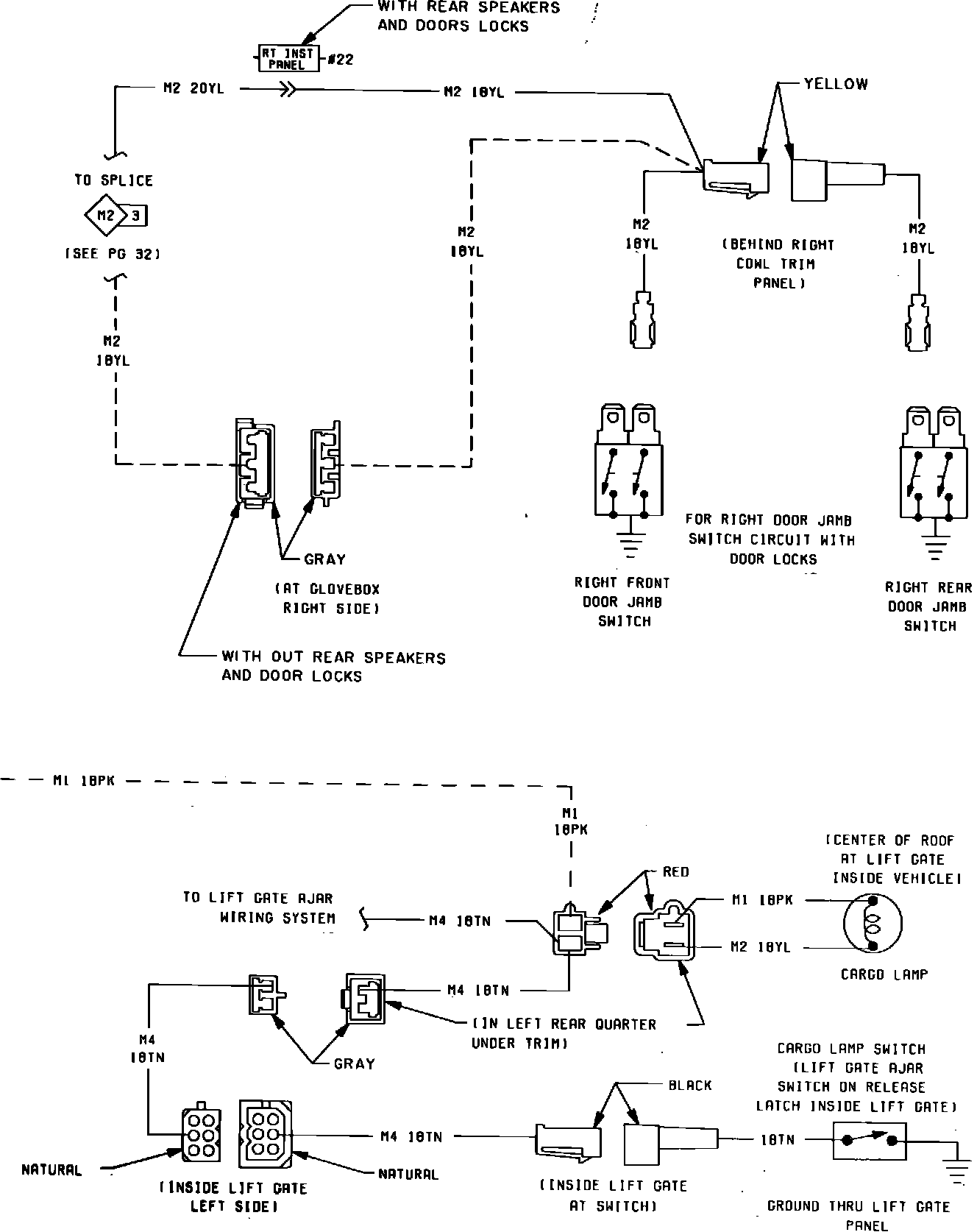

Fig. 13 Courtesy & Dome Lamps Wiring Circuit (Part 1 of 3):

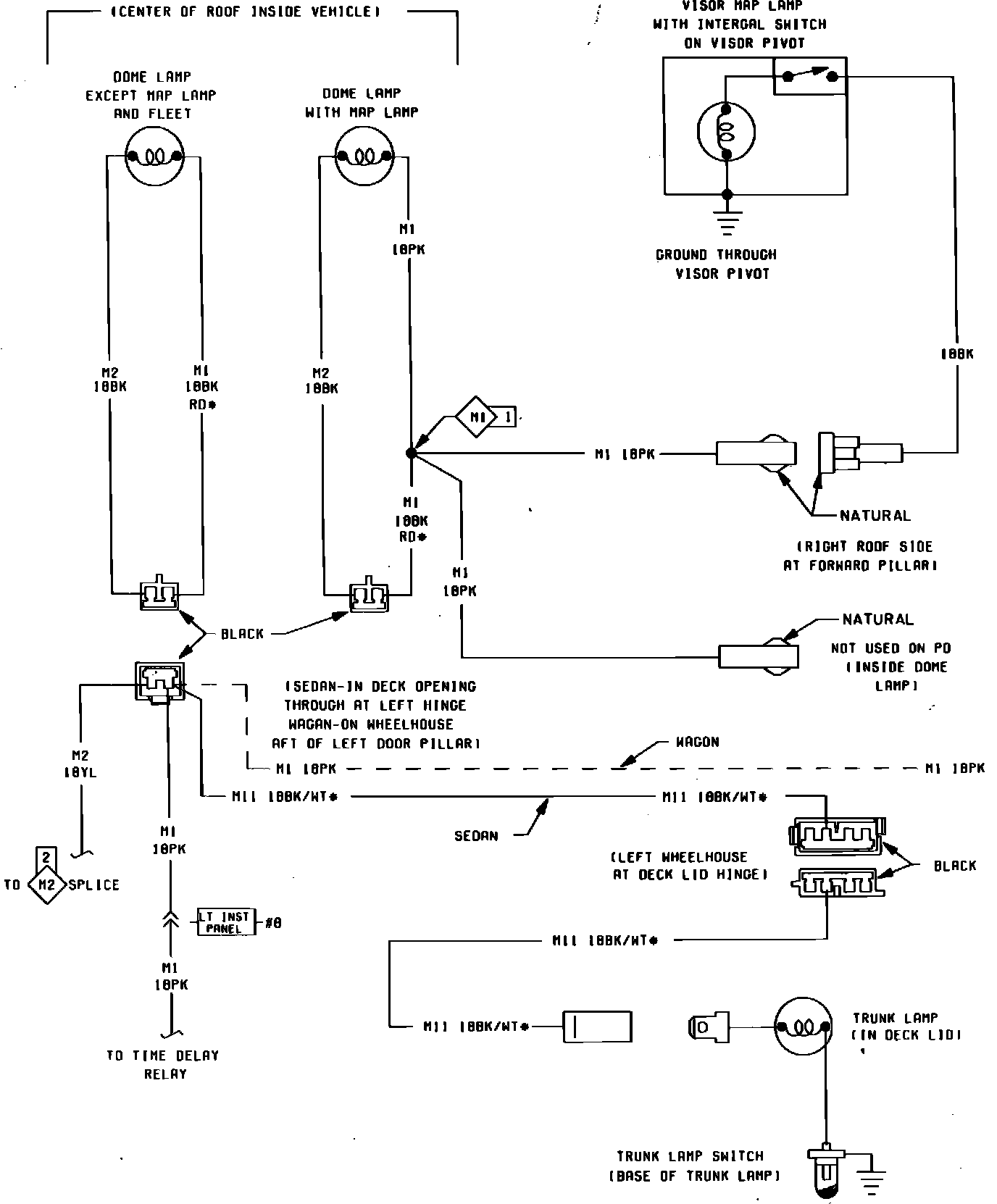

Fig. 13 Courtesy & Dome Lamps Wiring Circuit (Part 2 of 3):

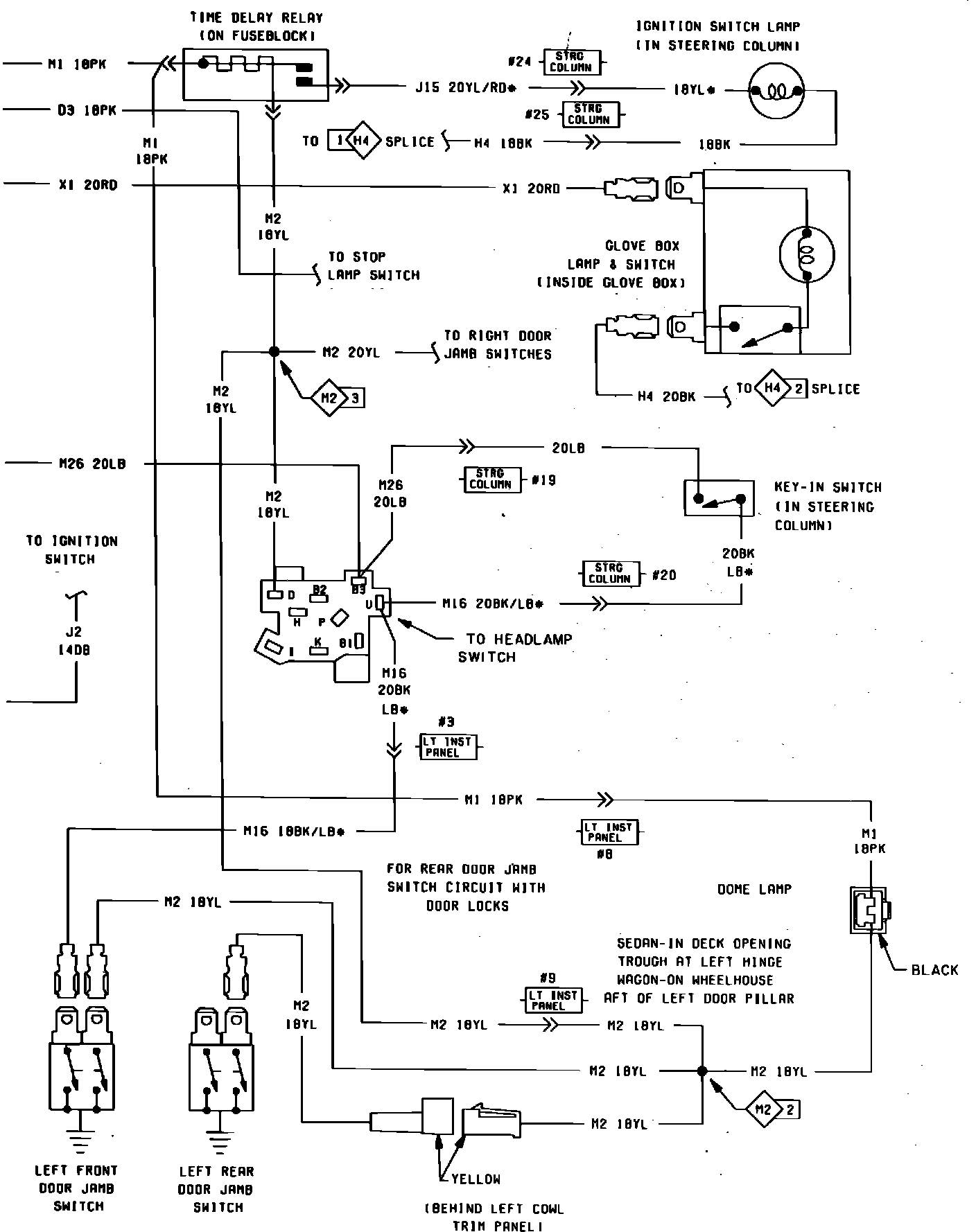

Fig. 13 Courtesy & Dome Lamps Wiring Circuit (Part 3 of 3):
